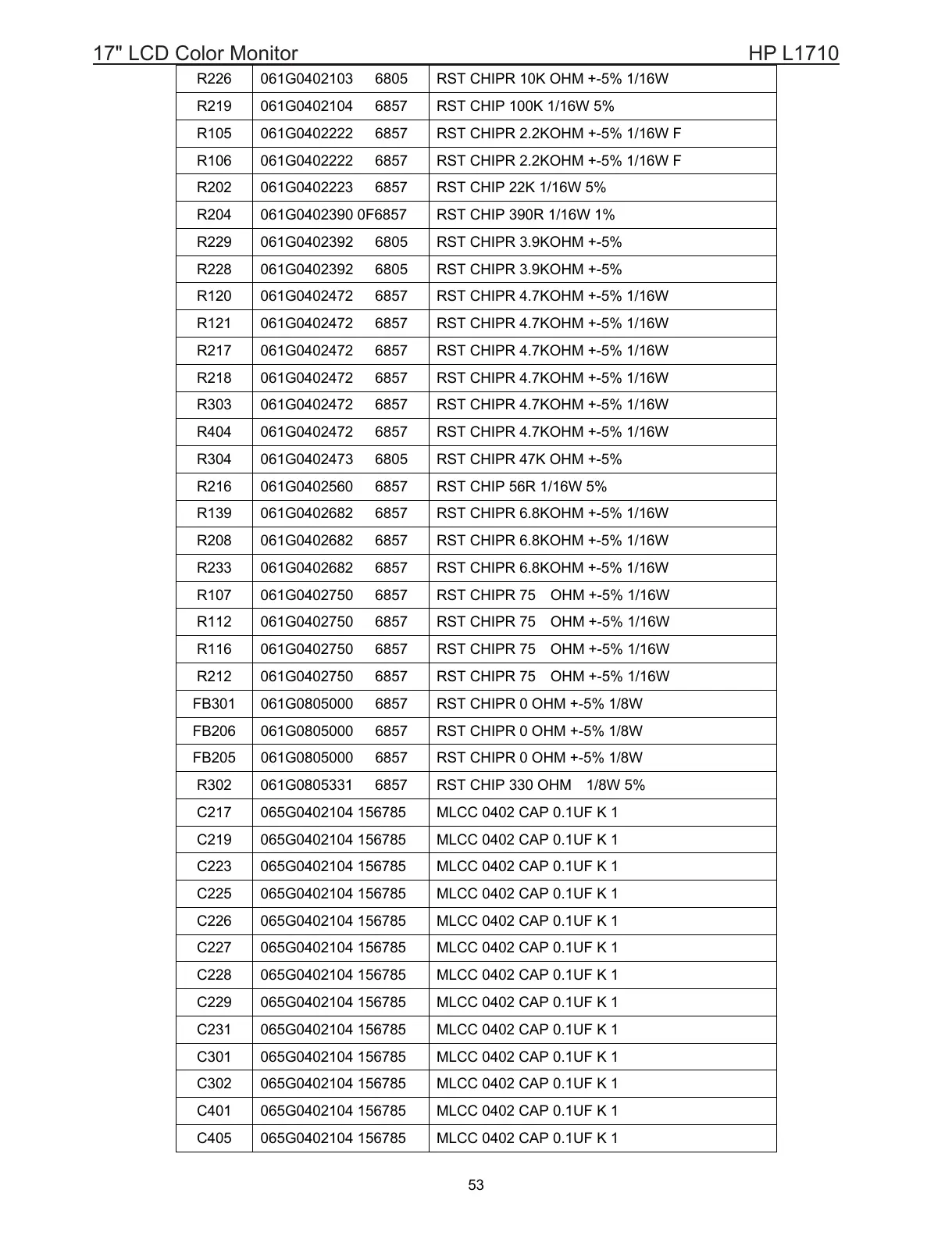

HP L1710 Service Manual

17" LCD Color Monitor HP L1710
53
R226 061G0402103 6805 RST CHIPR 10K OHM +-5% 1/16W
R219 061G0402104 6857 RST CHIP 100K 1/16W 5%
R105 061G0402222 6857 RST CHIPR 2.2KOHM +-5% 1/16W F
R106 061G0402222 6857 RST CHIPR 2.2KOHM +-5% 1/16W F
R202 061G0402223 6857 RST CHIP 22K 1/16W 5%
R204 061G0402390 0F6857 RST CHIP 390R 1/16W 1%
R229 061G0402392 6805 RST CHIPR 3.9KOHM +-5%
R228 061G0402392 6805 RST CHIPR 3.9KOHM +-5%
R120 061G0402472 6857 RST CHIPR 4.7KOHM +-5% 1/16W
R121 061G0402472 6857 RST CHIPR 4.7KOHM +-5% 1/16W
R217 061G0402472 6857 RST CHIPR 4.7KOHM +-5% 1/16W
R218 061G0402472 6857 RST CHIPR 4.7KOHM +-5% 1/16W
R303 061G0402472 6857 RST CHIPR 4.7KOHM +-5% 1/16W
R404 061G0402472 6857 RST CHIPR 4.7KOHM +-5% 1/16W
R304 061G0402473 6805 RST CHIPR 47K OHM +-5%
R216 061G0402560 6857 RST CHIP 56R 1/16W 5%
R139 061G0402682 6857 RST CHIPR 6.8KOHM +-5% 1/16W
R208 061G0402682 6857 RST CHIPR 6.8KOHM +-5% 1/16W
R233 061G0402682 6857 RST CHIPR 6.8KOHM +-5% 1/16W
R107 061G0402750 6857 RST CHIPR 75 OHM +-5% 1/16W
R112 061G0402750 6857 RST CHIPR 75 OHM +-5% 1/16W
R116 061G0402750 6857 RST CHIPR 75 OHM +-5% 1/16W
R212 061G0402750 6857 RST CHIPR 75 OHM +-5% 1/16W
FB301 061G0805000 6857 RST CHIPR 0 OHM +-5% 1/8W
FB206 061G0805000 6857 RST CHIPR 0 OHM +-5% 1/8W
FB205 061G0805000 6857 RST CHIPR 0 OHM +-5% 1/8W
R302 061G0805331 6857 RST CHIP 330 OHM 1/8W 5%
C217 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C219 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C223 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C225 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C226 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C227 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C228 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C229 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C231 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C301 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C302 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C401 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C405 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
All manuals and user guides at all-guides.com

HP L1710 Specifications

General

3D	No
HD type	-
Panel type	TFT
Pixel pitch	0.264 x 0.264 mm
Display surface	Matt
Display diagonal	17 \
Display resolution	1280 x 1024 pixels
Display technology	LCD
Vertical scan range	50 - 77 Hz
Horizontal scan range	24 - 83 kHz
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160 °
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1280 x 1024 (SXGA)
UNSPSC-code	43211902
On/off switch	Yes
Power requirements	100 - 240 VAC, 50 - 60 Hz
Display viewable area (HxV)	432 mm
HDMI ports quantity	0
Certification	ISO 13406-2 pixel defect guidelines, MPR-II, CISPR, VCCI, CSA(Canada), ACA (Australia), TUV and GS Mark (German ergonomic), BSMI (Taiwan), CCC (China), MIC (South Korea), NOM (Mexico), Eastern European approvals, CE Marking, FCC approval, TCO '03 (emissions, ergonomics, environment), Microsoft Windows certified (Microsoft Windows 2000, Microsoft Windows XP, and Windows Vista), UL listed, GOST (Russia), SASO (Saudi Arabia), Restrictions of Hazardous Substances (RoHS) Directive, 2002/95/EC, Waste Electrical and Electronic Equipment (WEEE) Directive, 2002/96/EC
Product color	Silver
Country of origin	China
Market positioning	Business
Tilt angle range	-5 - 25 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	30 W
Operating temperature (T-T)	5 - 35 °C
Non-operating relative humidity (non-condensing)	5 - 90 %
Package weight	6100 g
Sustainability certificates	ENERGY STAR
Cables included	AC, VGA

Weight and Dimensions

Depth (with stand)	192 mm
Width (with stand)	377 mm
Height (with stand)	386 mm
Weight (with stand)	4700 g
Depth (without stand)	57 mm
Height (without stand)	316 mm
Weight (without stand)	3920 g
