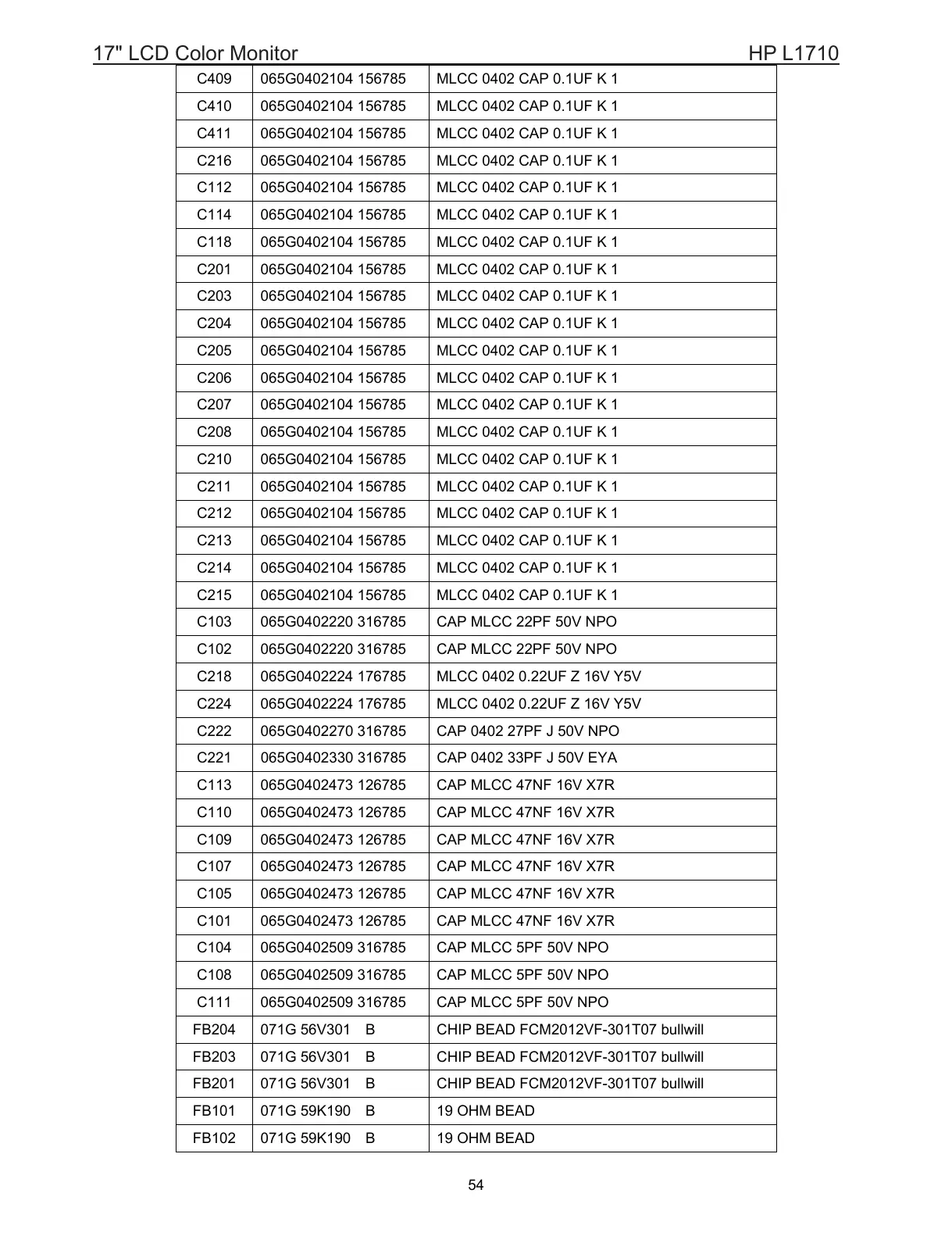

HP L1710 Service Manual

17" LCD Color Monitor HP L1710
54
C409 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C410 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C411 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C216 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C112 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C114 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C118 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C201 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C203 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C204 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C205 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C206 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C207 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C208 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C210 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C211 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C212 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C213 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C214 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C215 065G0402104 156785 MLCC 0402 CAP 0.1UF K 1
C103 065G0402220 316785 CAP MLCC 22PF 50V NPO
C102 065G0402220 316785 CAP MLCC 22PF 50V NPO
C218 065G0402224 176785 MLCC 0402 0.22UF Z 16V Y5V
C224 065G0402224 176785 MLCC 0402 0.22UF Z 16V Y5V
C222 065G0402270 316785 CAP 0402 27PF J 50V NPO
C221 065G0402330 316785 CAP 0402 33PF J 50V EYA
C113 065G0402473 126785 CAP MLCC 47NF 16V X7R
C110 065G0402473 126785 CAP MLCC 47NF 16V X7R
C109 065G0402473 126785 CAP MLCC 47NF 16V X7R
C107 065G0402473 126785 CAP MLCC 47NF 16V X7R
C105 065G0402473 126785 CAP MLCC 47NF 16V X7R
C101 065G0402473 126785 CAP MLCC 47NF 16V X7R
C104 065G0402509 316785 CAP MLCC 5PF 50V NPO
C108 065G0402509 316785 CAP MLCC 5PF 50V NPO
C111 065G0402509 316785 CAP MLCC 5PF 50V NPO
FB204 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill
FB203 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill
FB201 071G 56V301 B CHIP BEAD FCM2012VF-301T07 bullwill
FB101 071G 59K190 B 19 OHM BEAD
FB102 071G 59K190 B 19 OHM BEAD
