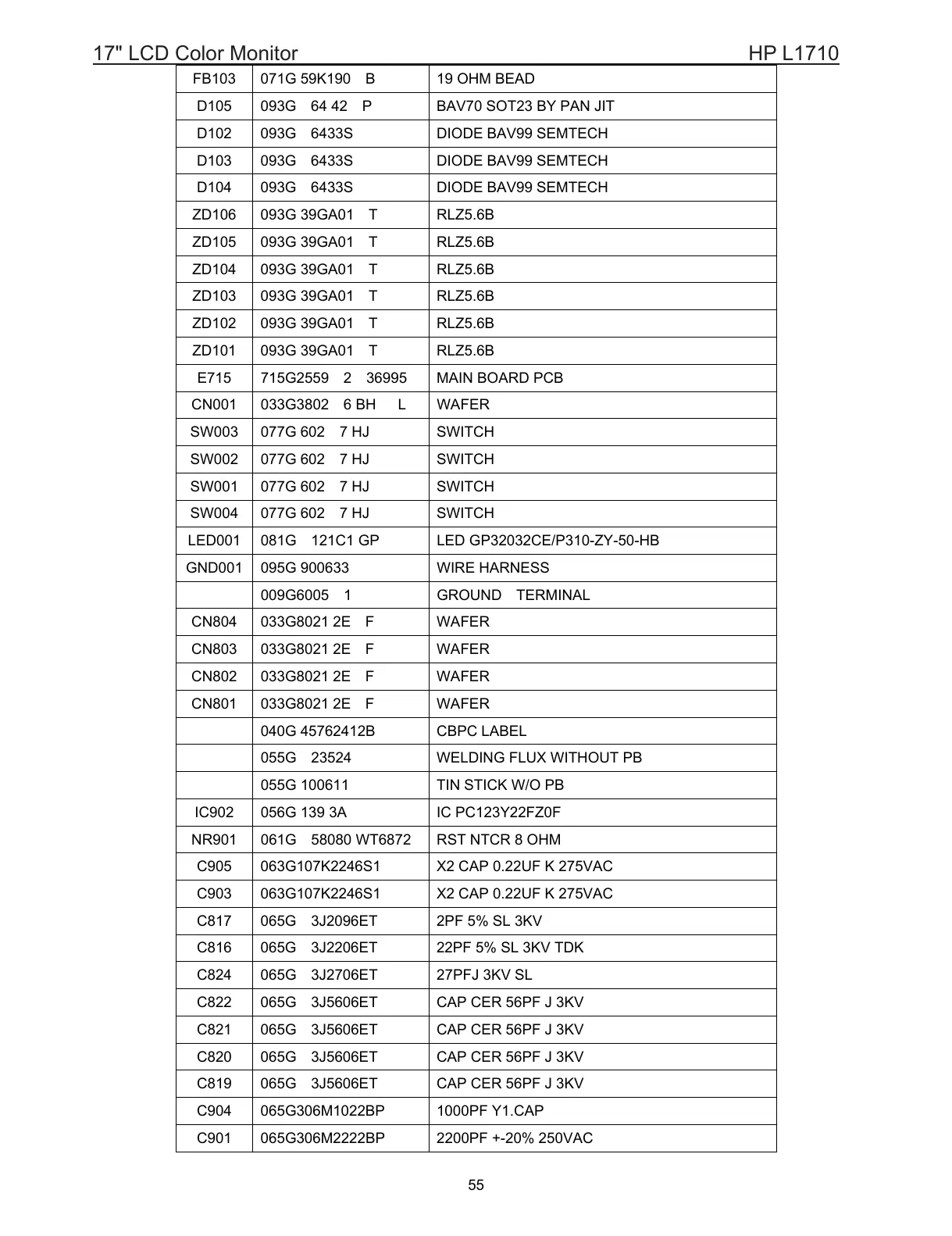

HP L1710 Service Manual

17" LCD Color Monitor HP L1710
55
FB103 071G 59K190 B 19 OHM BEAD
D105 093G 64 42 P BAV70 SOT23 BY PAN JIT
D102 093G 6433S DIODE BAV99 SEMTECH
D103 093G 6433S DIODE BAV99 SEMTECH
D104 093G 6433S DIODE BAV99 SEMTECH
ZD106 093G 39GA01 T RLZ5.6B
ZD105 093G 39GA01 T RLZ5.6B
ZD104 093G 39GA01 T RLZ5.6B
ZD103 093G 39GA01 T RLZ5.6B
ZD102 093G 39GA01 T RLZ5.6B
ZD101 093G 39GA01 T RLZ5.6B
E715 715G2559 2 36995 MAIN BOARD PCB
CN001 033G3802 6 BH L WAFER
SW003 077G 602 7 HJ SWITCH
SW002 077G 602 7 HJ SWITCH
SW001 077G 602 7 HJ SWITCH
SW004 077G 602 7 HJ SWITCH
LED001 081G 121C1 GP LED GP32032CE/P310-ZY-50-HB
GND001 095G 900633 WIRE HARNESS
009G6005 1 GROUND TERMINAL
CN804 033G8021 2E F WAFER
CN803 033G8021 2E F WAFER
CN802 033G8021 2E F WAFER
CN801 033G8021 2E F WAFER
040G 45762412B CBPC LABEL
055G 23524 WELDING FLUX WITHOUT PB
055G 100611 TIN STICK W/O PB
IC902 056G 139 3A IC PC123Y22FZ0F
NR901 061G 58080 WT6872 RST NTCR 8 OHM
C905 063G107K2246S1 X2 CAP 0.22UF K 275VAC
C903 063G107K2246S1 X2 CAP 0.22UF K 275VAC
C817 065G 3J2096ET 2PF 5% SL 3KV
C816 065G 3J2206ET 22PF 5% SL 3KV TDK
C824 065G 3J2706ET 27PFJ 3KV SL
C822 065G 3J5606ET CAP CER 56PF J 3KV
C821 065G 3J5606ET CAP CER 56PF J 3KV
C820 065G 3J5606ET CAP CER 56PF J 3KV
C819 065G 3J5606ET CAP CER 56PF J 3KV
C904 065G306M1022BP 1000PF Y1.CAP
C901 065G306M2222BP 2200PF +-20% 250VAC
All manuals and user guides at all-guides.com

HP L1710 Specifications

General

3D	No
HD type	-
Panel type	TFT
Pixel pitch	0.264 x 0.264 mm
Display surface	Matt
Display diagonal	17 \
Display resolution	1280 x 1024 pixels
Display technology	LCD
Vertical scan range	50 - 77 Hz
Horizontal scan range	24 - 83 kHz
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160 °
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1280 x 1024 (SXGA)
UNSPSC-code	43211902
On/off switch	Yes
Power requirements	100 - 240 VAC, 50 - 60 Hz
Display viewable area (HxV)	432 mm
HDMI ports quantity	0
Certification	ISO 13406-2 pixel defect guidelines, MPR-II, CISPR, VCCI, CSA(Canada), ACA (Australia), TUV and GS Mark (German ergonomic), BSMI (Taiwan), CCC (China), MIC (South Korea), NOM (Mexico), Eastern European approvals, CE Marking, FCC approval, TCO '03 (emissions, ergonomics, environment), Microsoft Windows certified (Microsoft Windows 2000, Microsoft Windows XP, and Windows Vista), UL listed, GOST (Russia), SASO (Saudi Arabia), Restrictions of Hazardous Substances (RoHS) Directive, 2002/95/EC, Waste Electrical and Electronic Equipment (WEEE) Directive, 2002/96/EC
Product color	Silver
Country of origin	China
Market positioning	Business
Tilt angle range	-5 - 25 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	30 W
Operating temperature (T-T)	5 - 35 °C
Non-operating relative humidity (non-condensing)	5 - 90 %
Package weight	6100 g
Sustainability certificates	ENERGY STAR
Cables included	AC, VGA

Weight and Dimensions

Depth (with stand)	192 mm
Width (with stand)	377 mm
Height (with stand)	386 mm
Weight (with stand)	4700 g
Depth (without stand)	57 mm
Height (without stand)	316 mm
Weight (without stand)	3920 g
