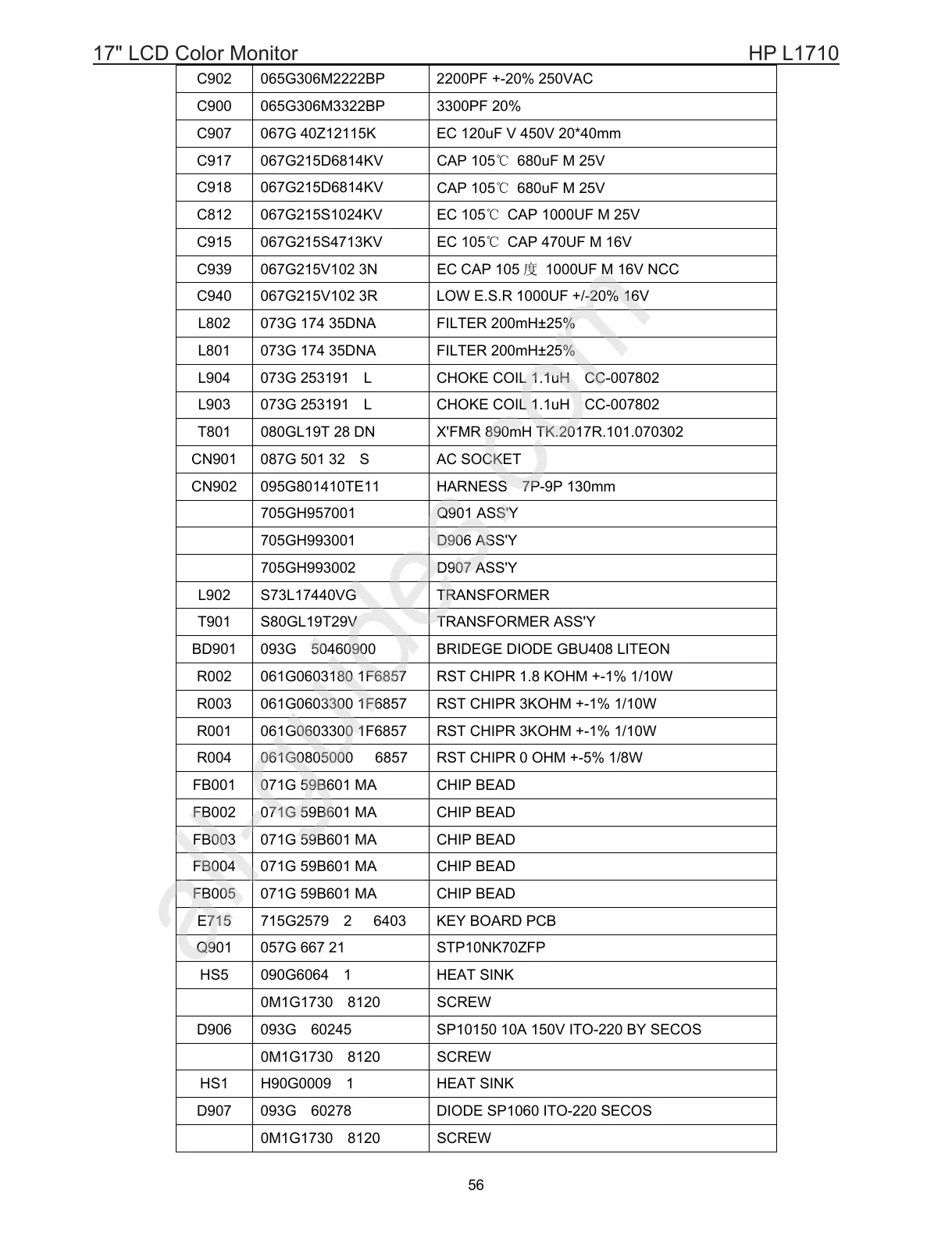

HP L1710 Service Manual

17" LCD Color Monitor HP L1710
56
C902 065G306M2222BP 2200PF +-20% 250VAC
C900 065G306M3322BP 3300PF 20%
C907 067G 40Z12115K EC 120uF V 450V 20*40mm
C917 067G215D6814KV
CAP 105℃ 680uF M 25V
C918 067G215D6814KV
CAP 105℃ 680uF M 25V
C812 067G215S1024KV
EC 105℃ CAP 1000UF M 25V
C915 067G215S4713KV
EC 105℃ CAP 470UF M 16V
C939 067G215V102 3N
EC CAP 105 度 1000UF M 16V NCC
C940 067G215V102 3R LOW E.S.R 1000UF +/-20% 16V
L802 073G 174 35DNA FILTER 200mH±25%
L801 073G 174 35DNA FILTER 200mH±25%
L904 073G 253191 L CHOKE COIL 1.1uH CC-007802
L903 073G 253191 L CHOKE COIL 1.1uH CC-007802
T801 080GL19T 28 DN X'FMR 890mH TK.2017R.101.070302
CN901 087G 501 32 S AC SOCKET
CN902 095G801410TE11 HARNESS 7P-9P 130mm
705GH957001 Q901 ASS'Y
705GH993001 D906 ASS'Y
705GH993002 D907 ASS'Y
L902 S73L17440VG TRANSFORMER
T901 S80GL19T29V TRANSFORMER ASS'Y
BD901 093G 50460900 BRIDEGE DIODE GBU408 LITEON
R002 061G0603180 1F6857 RST CHIPR 1.8 KOHM +-1% 1/10W
R003 061G0603300 1F6857 RST CHIPR 3KOHM +-1% 1/10W
R001 061G0603300 1F6857 RST CHIPR 3KOHM +-1% 1/10W
R004 061G0805000 6857 RST CHIPR 0 OHM +-5% 1/8W
FB001 071G 59B601 MA CHIP BEAD
FB002 071G 59B601 MA CHIP BEAD
FB003 071G 59B601 MA CHIP BEAD
FB004 071G 59B601 MA CHIP BEAD
FB005 071G 59B601 MA CHIP BEAD
E715 715G2579 2 6403 KEY BOARD PCB
Q901 057G 667 21 STP10NK70ZFP
HS5 090G6064 1 HEAT SINK
0M1G1730 8120 SCREW
D906 093G 60245 SP10150 10A 150V ITO-220 BY SECOS
0M1G1730 8120 SCREW
HS1 H90G0009 1 HEAT SINK
D907 093G 60278 DIODE SP1060 ITO-220 SECOS
0M1G1730 8120 SCREW
