19" LCD Color Monitor HP L1950g

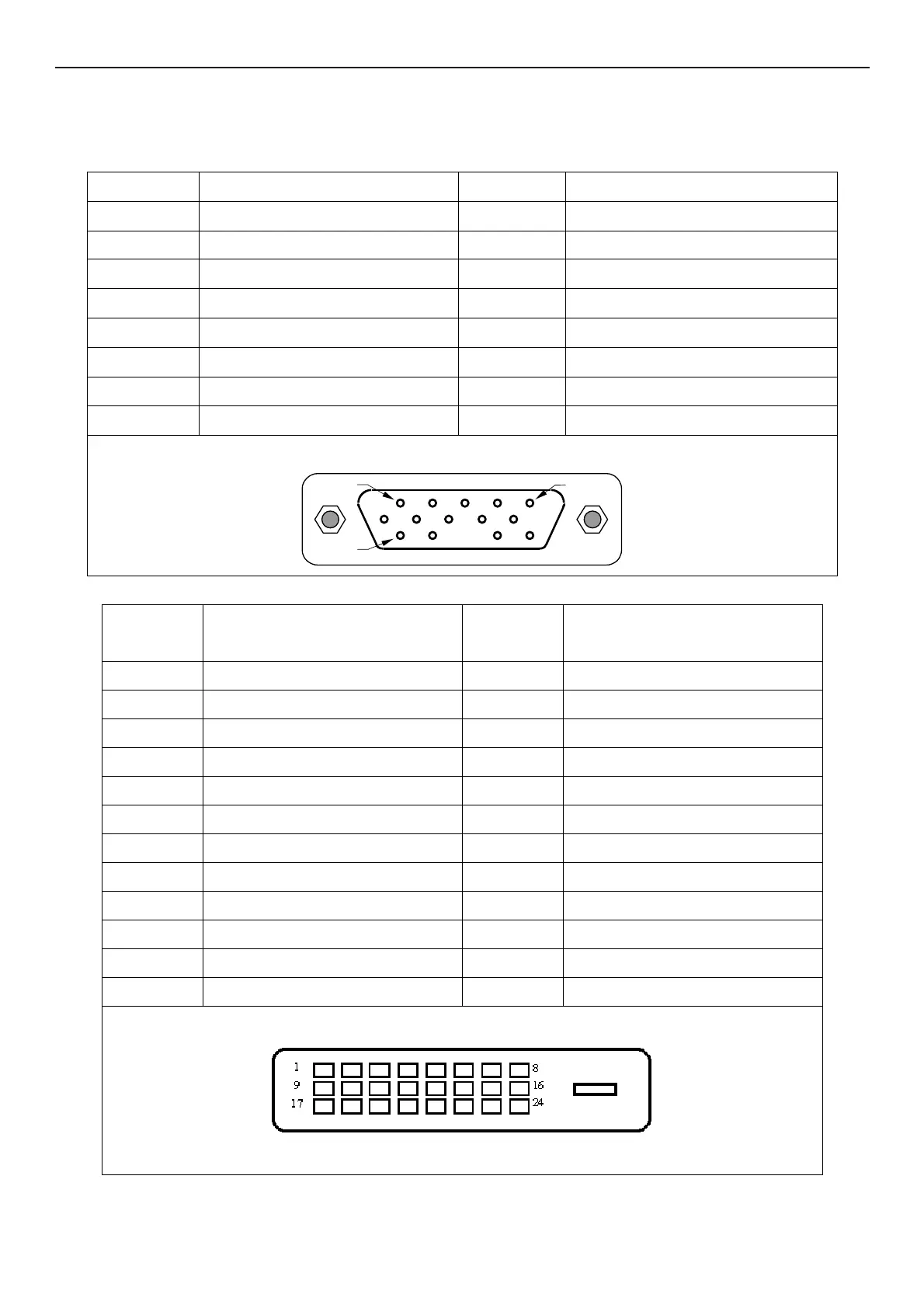

4. Input/Output Specification

4.1 Input Signal Connector

4.1.1 D-SUB connector

Pin Signal Pin Signal

1 Red Video 9 3.3/+5 V (from PC)

2 Green Video 10 Sync Ground

3 Blue Video 11 None

4 None 12 DDC Data

5 Ground (DDC Return) 13 Horizontal Sync

6 Red GND 14 Vertical Sync

7 Green GND 15 DDC Clock

8 Blue GND

VGA connector layout

PIN 1

PIN 5

PIN 11

4.1.2 DVI-D connector

Pin No.

Signal Name

Pin No.

Signal Name

1 TMDS Data 2- 13 TMDS Data 3+

2 TMDS Data 2+ 14 +5V Power

3 TMDS Data 2/4 Shield 15 Ground(for+5V)

4 TMDS Data 4- 16 Hot Plug Detect

5 TMDS Data 4+ 17 TMDS Data 0-

6 DDC Clock 18 TMDS Data 0+

7 DDC Data 19 TMDS Data 0/5 Shield

8 N.C. 20 TMDS Data 5-

9 TMDS Data 1- 21 TMDS Data 5+

10 TMDS Data 1+ 22 TMDS Clock Shield

11 TMDS Data 1/3 Shield 23 TMDS Clock +

12 TMDS Data 3- 24 TMDS Clock -

24 - Pin Color Display Signal Cable

Other manuals for HP L1950g

Questions and Answers:

Need help?

Do you have a question about the HP L1950g and is the answer not in the manual?

General

Panel type	TN
Pixel pitch	0.294 x 0.294 mm
Aspect ratio	5:4
Display diagonal	19 \
Separate H/V sync	Yes
Display resolution	1280 x 1024 pixels
Display technology	LED
Vertical scan range	50 - 77 Hz
Viewable size, vertical	303 mm
Contrast ratio (dynamic)	-
Contrast ratio (typical)	800:1
Display number of colors	16.78 million colors
Viewable size, horizontal	378 mm
Viewing angle, horizontal	160 °
Display brightness (typical)	300 cd/m²
USB hub version	2.0
HDMI ports quantity	0
USB Type-A downstream ports quantity	2
Product color	Silver
Country of origin	China
Pivot angle	0 - 90 °
Tilt angle range	-5 - 35 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	44 W
Power consumption (off)	1 W
Power consumption (standby)	2 W
Power consumption (typical)	32 W
Sustainability certificates	EPEAT Gold, ENERGY STAR
