Internal components (left side)
Use the following steps to remove and replace the left side internal components of the printer.
DC controller shield
Use the following steps to remove the DC controller shield.
To remove the DC controller shield
1. Remove the print cartridges and the ETB.
2. Remove the rear cover. See
Rear cover.
3. Remove the top cover. See
Top cover.
4. Remove the rear top cover.
Rear top cover.
5. Remove the left cover. See
Left cover.
6. Remove the nine screws shown in callout 1.
7. Disconnect the connector that is inside the shield, on the left side.
8. Remove the DC controller shield.

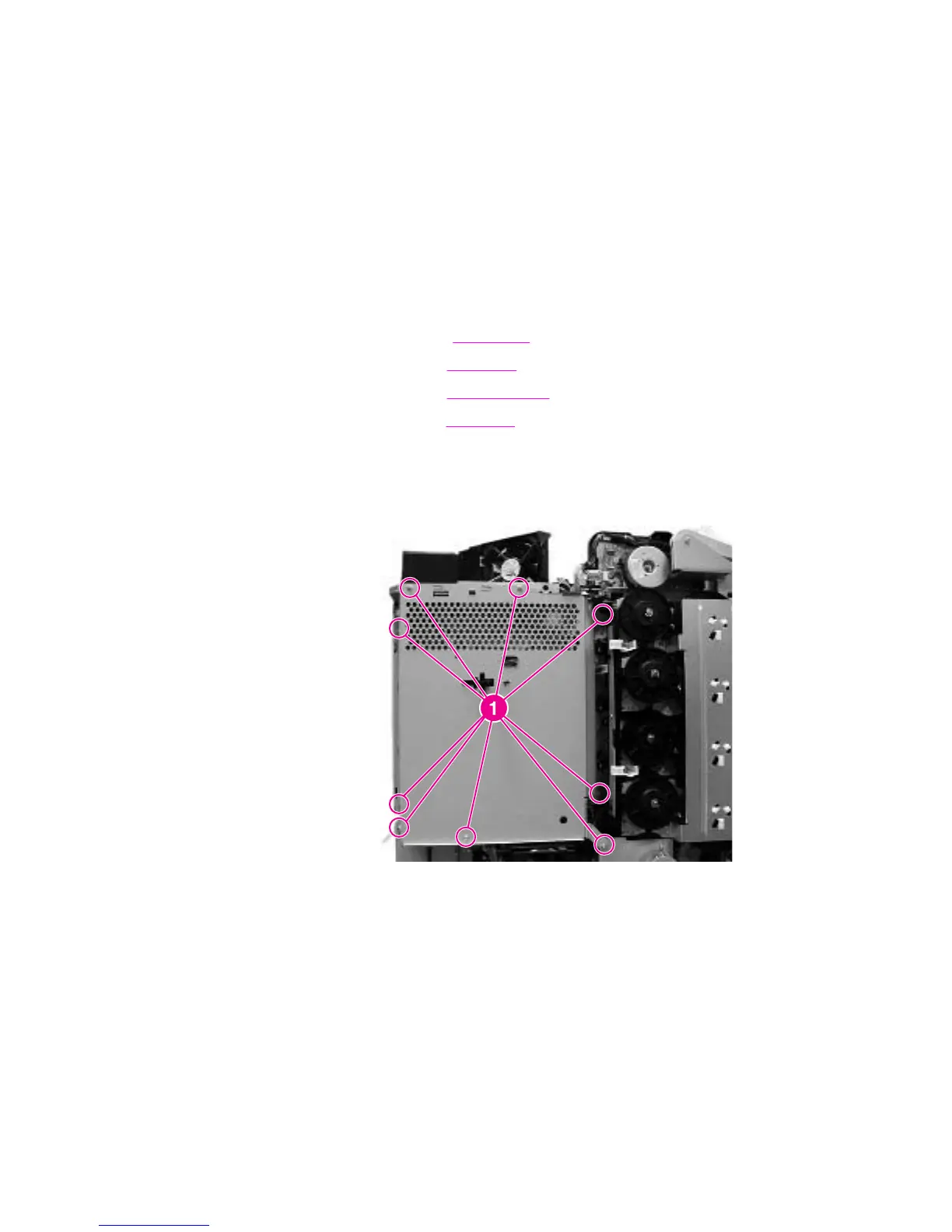

Figure 6-32.
Removing and replacing the DC controller shield
Environment sensor (HP Color LaserJet 5550 models)
Use the following steps to remove the environment sensor.
210 Chapter 6 Removal and replacement ENWW
