16. Rotate the bar down.
CAUTION
The scanner retaining bars are under spring tension. Remove them carefully.

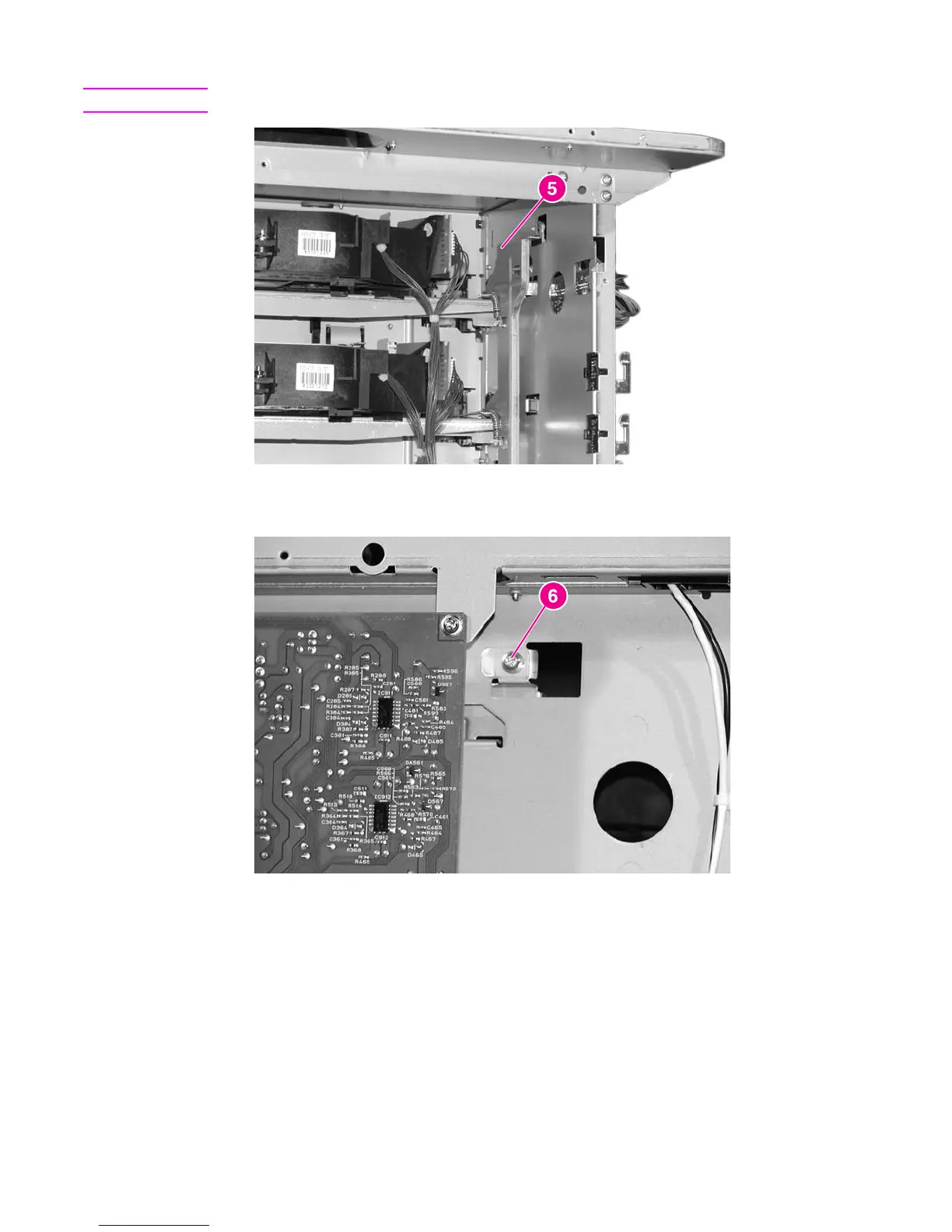

Figure 6-62.
Removing and replacing the laser/scanner units (5 of 8)
17. On the right side of the printer, remove the screw shown in callout 6.
Figure 6-63.
Removing and replacing the laser/scanner units (6 of 8)
18. Grasp the top of the laser/scanner retaining bar where indicated in callout 7, and push it
towards the laser/scanners to release it.
230 Chapter 6 Removal and replacement ENWW
