Q1342-90910 External assemblies 17
Cable pod
1 Turn the two pod thumbscrews counterclockwise until they turn
freely.
2 Grasp the pod, and gently pull it away from the printer.

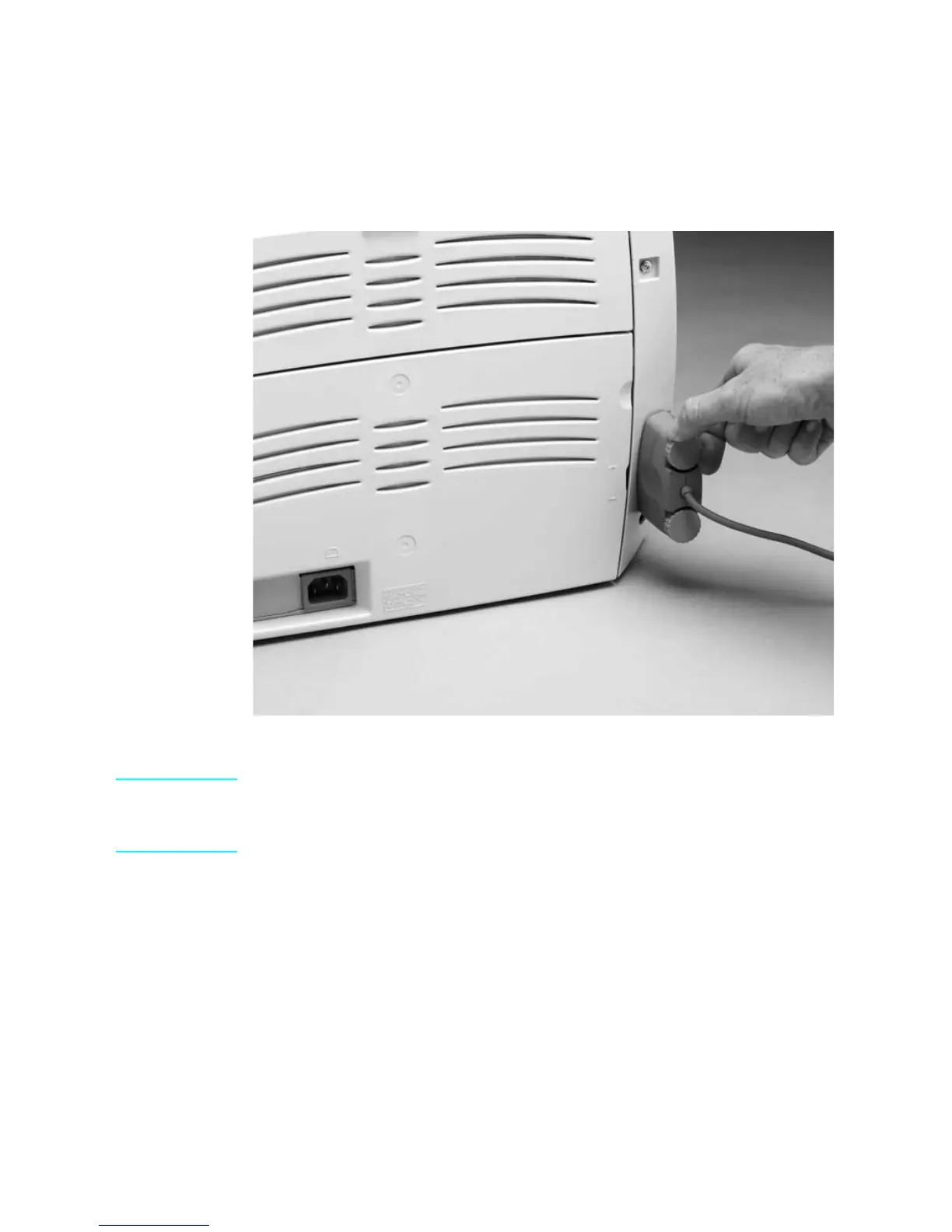

Figure 6. Remove the cable pod
Hint For easier installation, start tightening the top thumbscrew (do not fully
tighten) and then tighten the bottom thumbscrew when replacing the
cable pod. Make sure to fully tighten both thumbscrews.
