56 Chapter 2 - Removal and replacement Q1342-90910
Bottom assemblies
ECU pan
1 Remove the following assemblies:
z Toner cartridge, media tray, and cable pod. See “Toner cartridge”
on page 15 through “Cable pod” on page 17.
z Left side, back, and right side covers. See “Left side cover” on
page 18 through “Right side cover” on page 24.
2 Unplug the three spade connectors (callout 1).
3 Disconnect the motor cable connector (callout 2).
4 Unplug the fuser cable connector (callout 3) by pressing and
releasing the clip on the back of the connector.
5 Unplug the remaining four wire harness connectors (callout 4)
from the ECU.

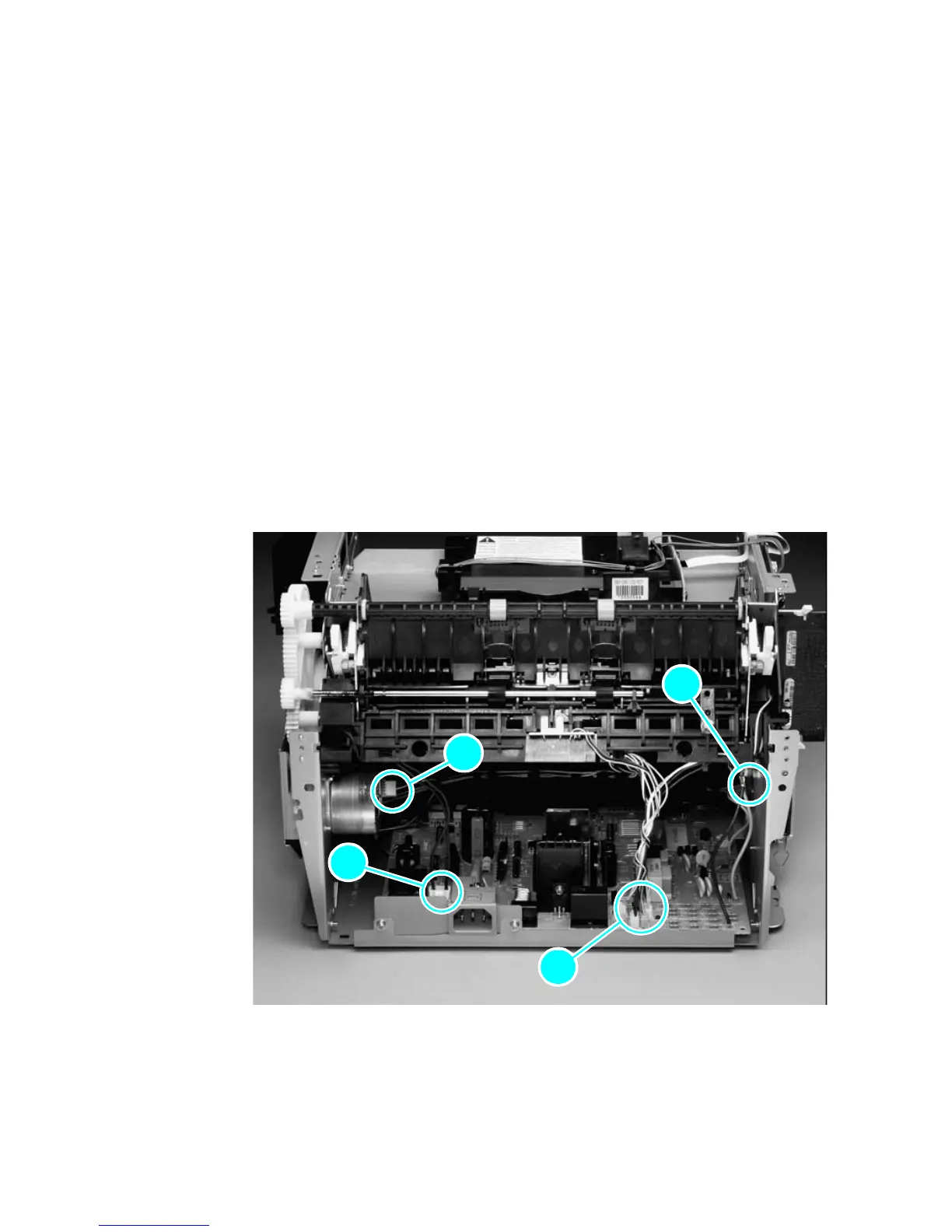

Figure 45. Disconnect the ECU wire harnesses
2
2
2
3
4
1
2
2
