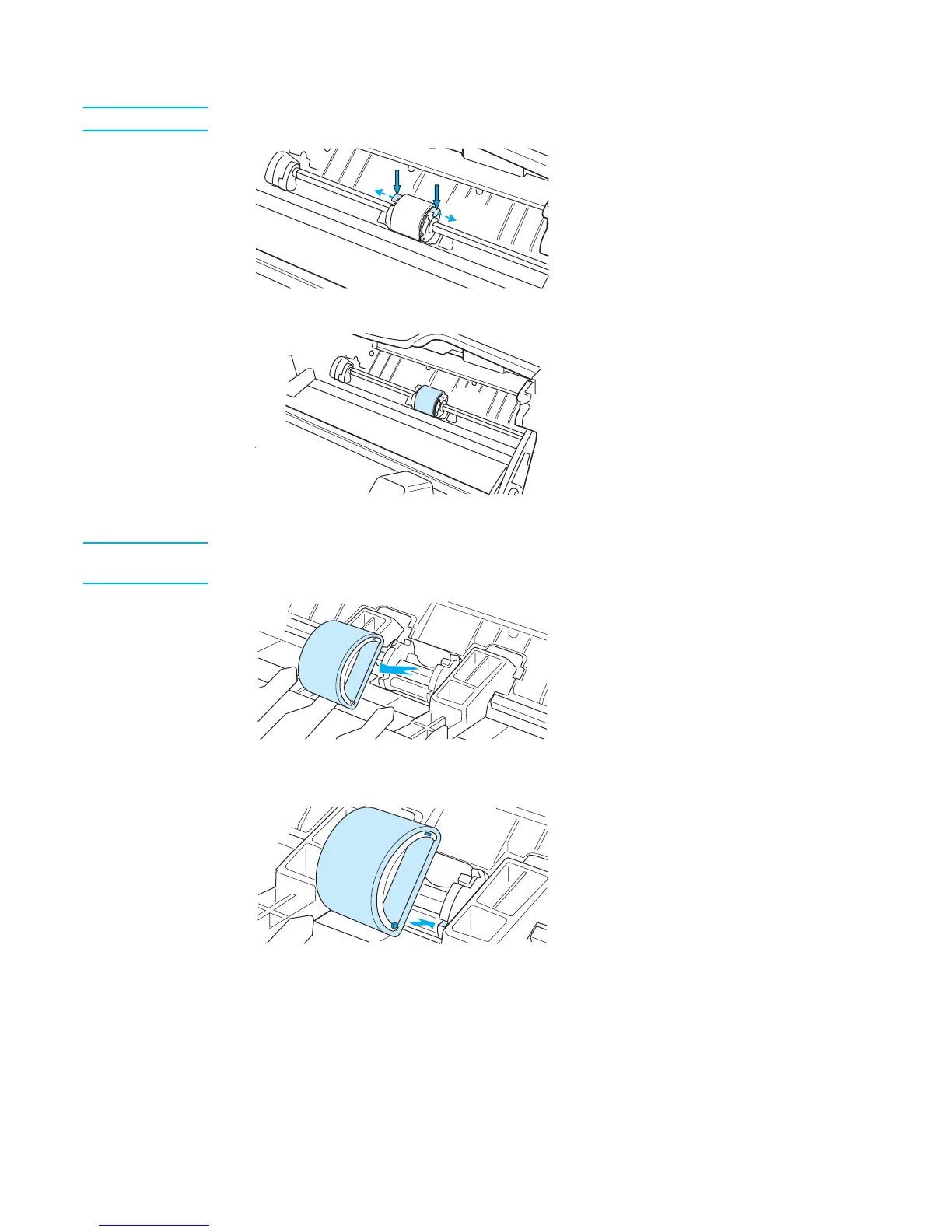

4. Gently release the small, white tabs on each side of the pickup roller by pushing them
away from the roller, and then rotate the pickup roller toward the front.
CAUTION
Use gentle pressure to release the small white tabs to avoid breaking them.
5. Gently pull the pickup roller up and out.
6. Position the new pickup roller in the slot of the previous pickup roller.
Note
Circular and rectangular pegs on each side prevent you from incorrectly positioning the
pickup roller.
7. Rotate the top of the new pickup roller into position until the white tabs on each side of
the roller snap the roller into place.
