11. Disconnect one ribbon cable and the connector to the step motor (callout 1, figure 5-29).
Remove one screw (callout 2, figure 5-29). Remove the plastic retaining clip from the
formatter ribbon cable and loosen the tape (callout 3, figure 5-29). As you are removing
the ECU, unplug the additional connector going to the laser scanner assembly.
1
2
3

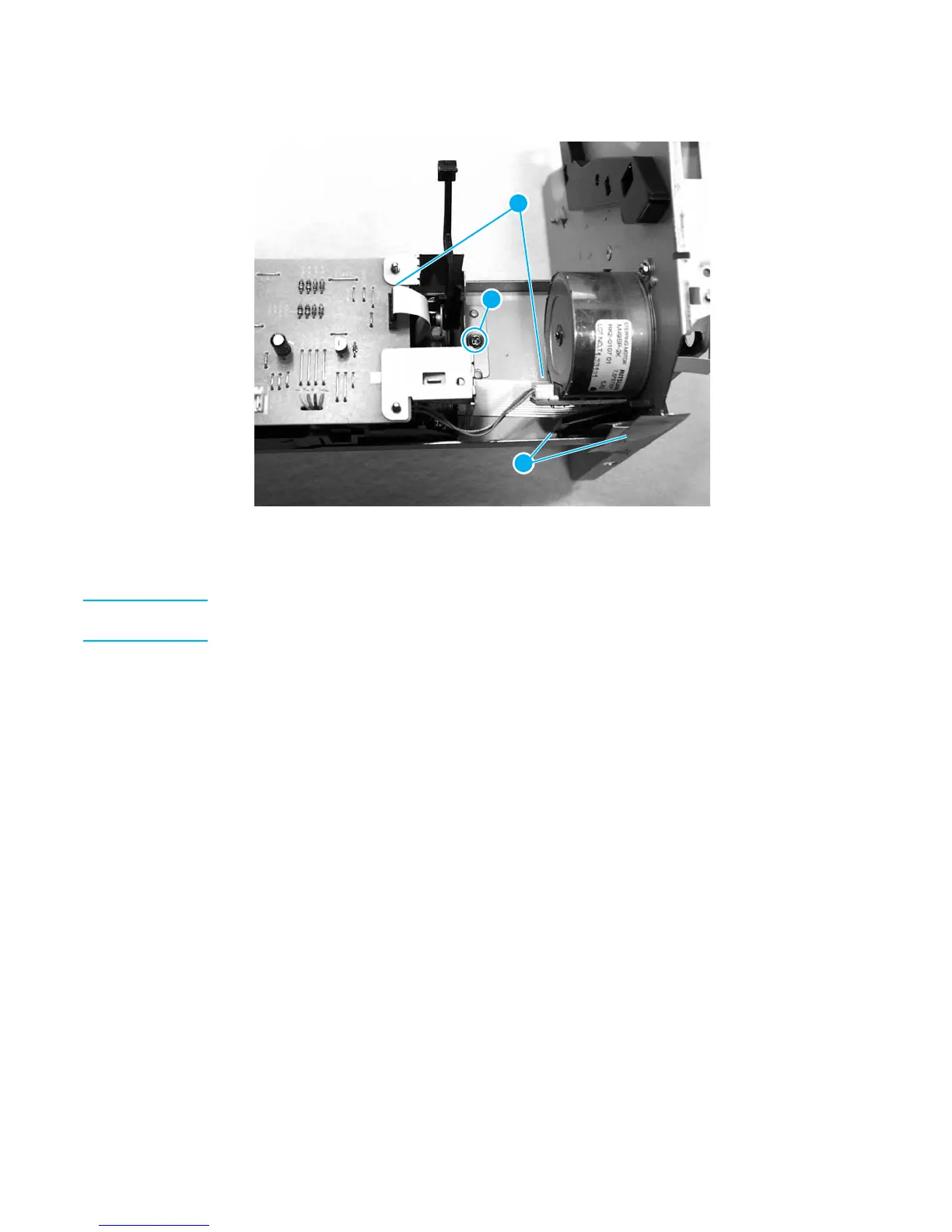

Figure 5-29. Removing the ECU assembly (5 of 5)
12. As you are removing the ECU, unplug one additional connector going from the ECU PCB
to the laser scanner assembly.
Note
When reinstalling the ECU metal casing, ensure that the laser scanner cover lever is properly
inserted through the plastic guide.
Laser scanner assembly
1. Remove the right side cover.
2. Remove the left side cover.
3. Remove the front cover.
78 Chapter 5 Removal and replacement ENWW
