HP LaserJet 2100 - Page 265

C4170-90959 Parts Removal Tree 253
4 Remove the four screws shown in figure 7-132.

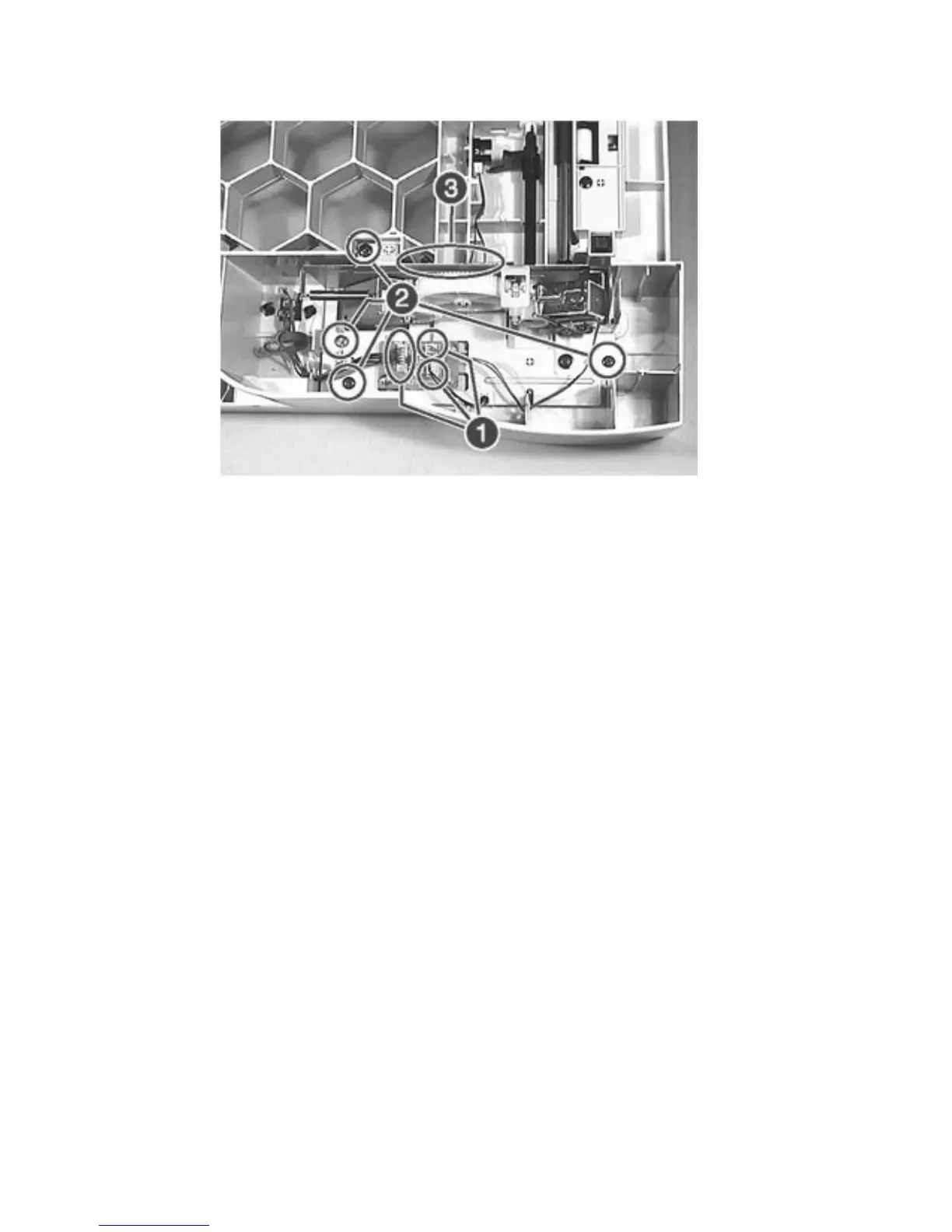

Figure 7-132 Removing Tray 3 Wire Connectors and Screws
5 Press and hold the metal latch on the right-side of the assembly, and then lift to remove
the Tray 3 paper feeder drive assembly.
