152 Removing and replacing parts Q2431-90912
Tray 1

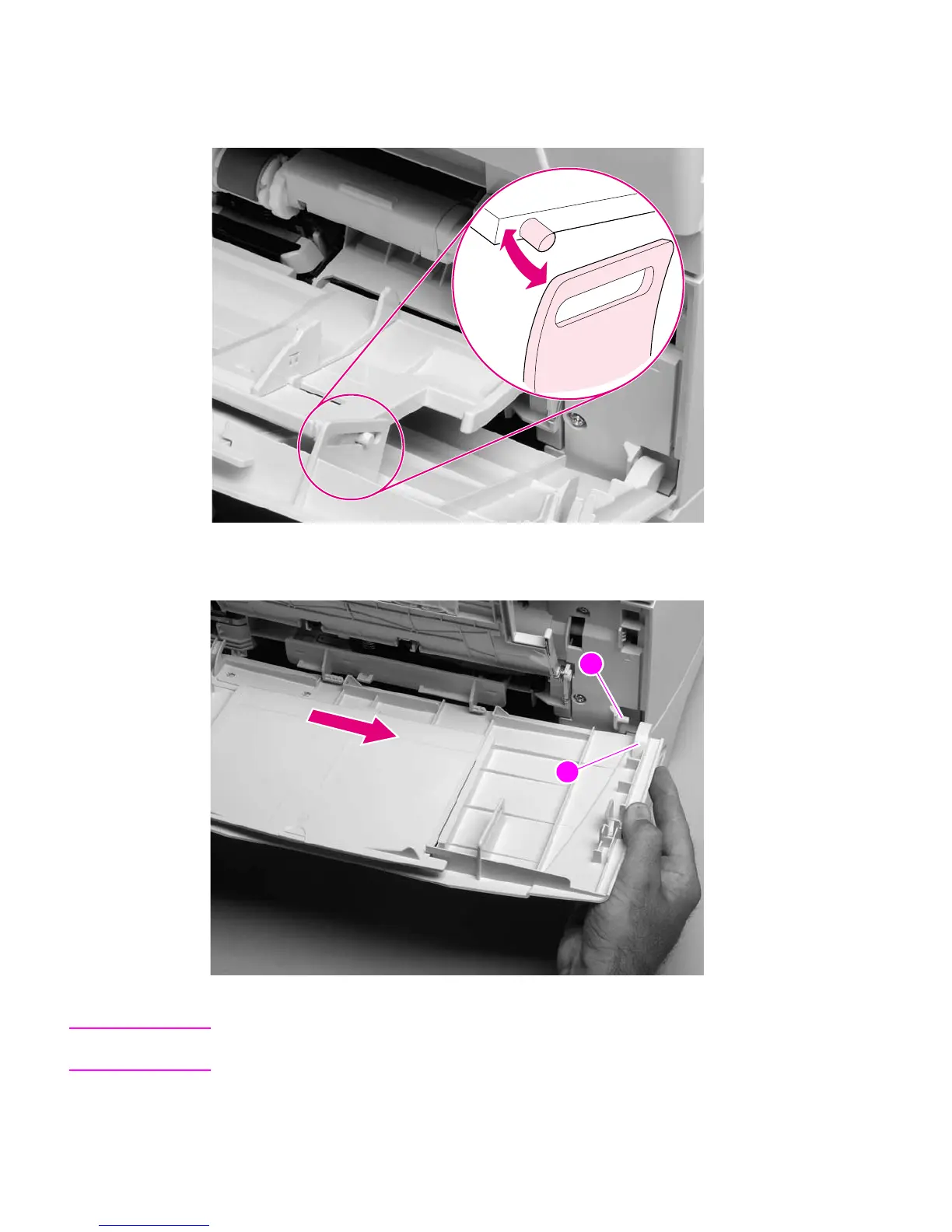

1. Open tray 1. Use your fingers to gently pry the paper-guide slide-pin hinges out of the hinge
slots on the tray 1 door to release the pins.
Figure 85. Tray 1 (1 of 6)
2. Slide the tray 1 door to the right and remove it.
Figure 86. Tray 1 (2 of 6)
Reinstall note When you install the tray 1 door, the door-stop pin (callout 1) must be installed in the stop
receptacle on the door (callout 2) so that the door will open and close properly.
1
1
1
2
