166 Removing and replacing parts Q2431-90912
CAUTION The gears in this assembly are not captive when the assembly is removed. They can easily slide
off of the shafts. Handle the assembly carefully and place it gear-side up on your workstation to
prevent the gears from coming off of the shafts.
3. Pull the duplexing pendulum assembly toward the laser/scanner until the upper gear-drive
shaft clears the hole in the chassis, and then remove the assembly.

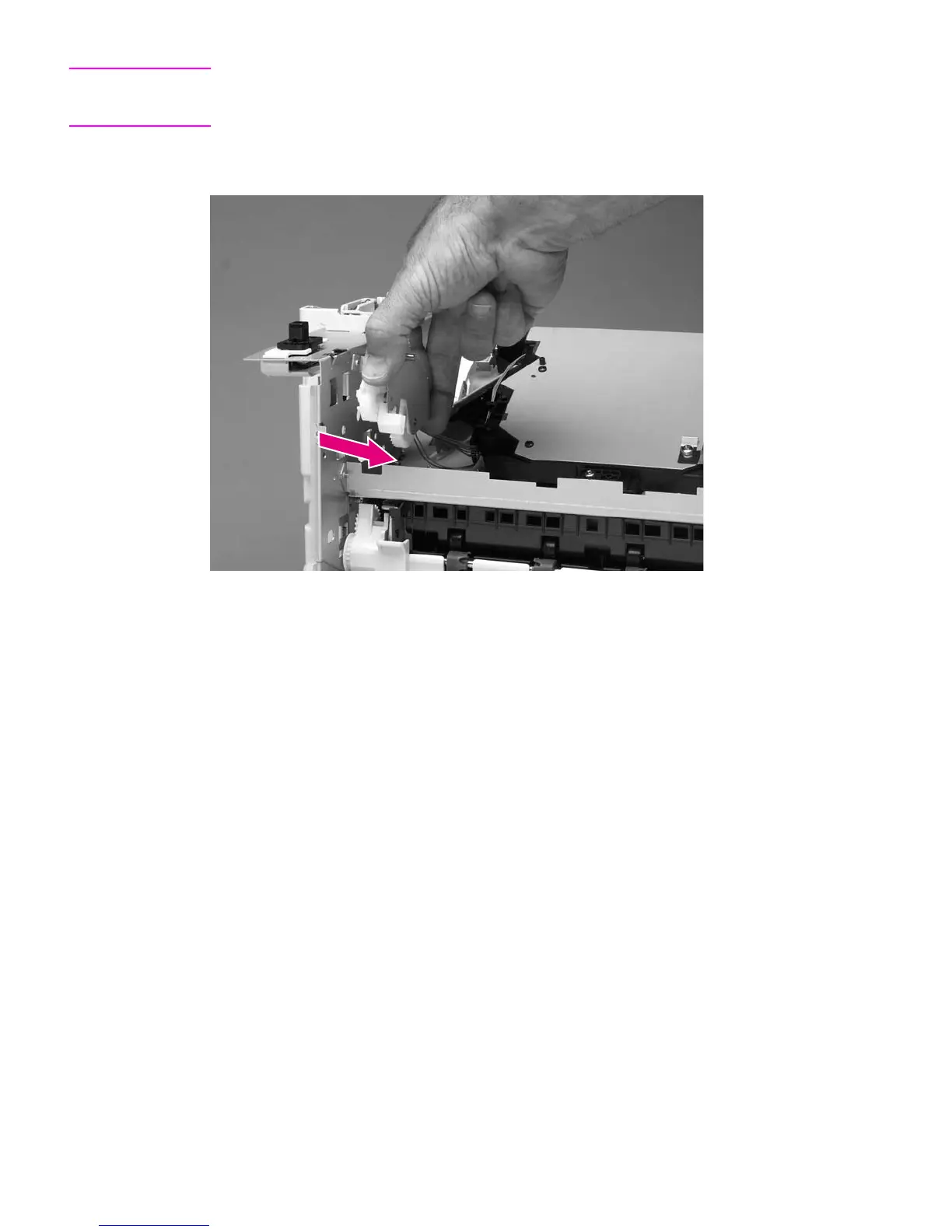

Figure 105. Duplexing pendulum assembly (2 of 2)
