170 Removing and replacing parts Q2431-90912
Cooling fan (right side; HP LaserJet 4300 series printer only)
Note This fan is not installed in the HP LaserJet 4200 series printer.
1. Remove the following assemblies:
● Top cover. See “Top cover” on page 146.
● Right-side cover. See “Right-side cover” on page 149.
2. Gently pry back the two retaining tabs (callout 1) and slip the anti-static bar (callout 2) bar off
of them.

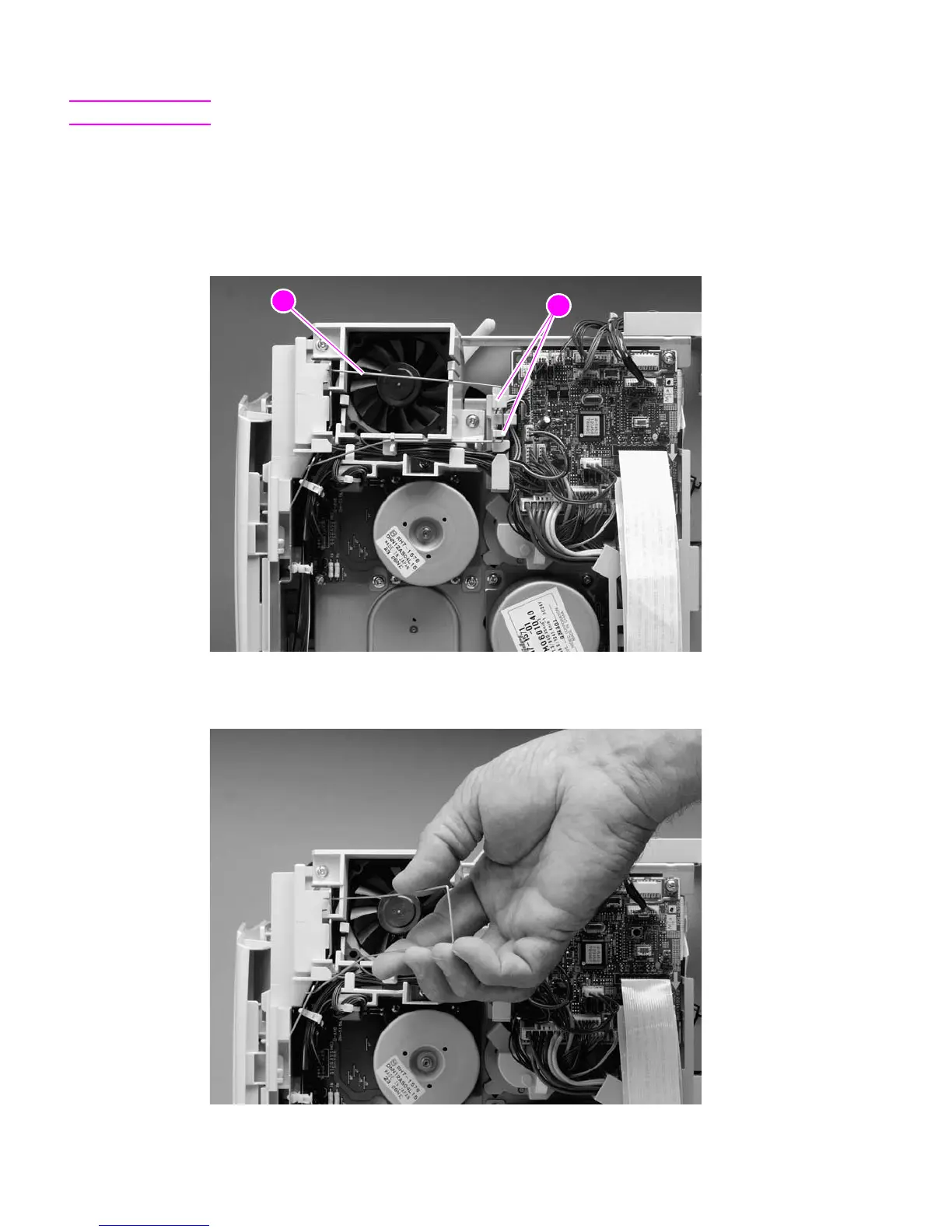

Figure 112. Cooling fan (HP LaserJet 4300 series only; 1 of 5)
3. Rotate the anti-static bar away from the printer to release it. Remove the anti-static bar.
Figure 113. Cooling fan (HP LaserJet 4300 series only; 2 of 5)
8
8
2
1
