Q2431-90912 Chapter 6 Removing and replacing parts 179
Tray 2 lifter-drive assembly
1. Remove the following assemblies:
● Top cover. See “Top cover” on page 146.
● Right-side cover. See “Right-side cover” on page 149.
2. Use a small flat-blade screwdriver to pry up the lifter-drive assembly connector (callout 1)
retaining tab and unplug the connector from the DC controller PCA (location J93). Unweave
the harness from the wire guides (callout 2).
Hint It might be necessary to remove additional wire-harnesses from the wire guide to gain access to
the lifter-drive assembly wire-harness.

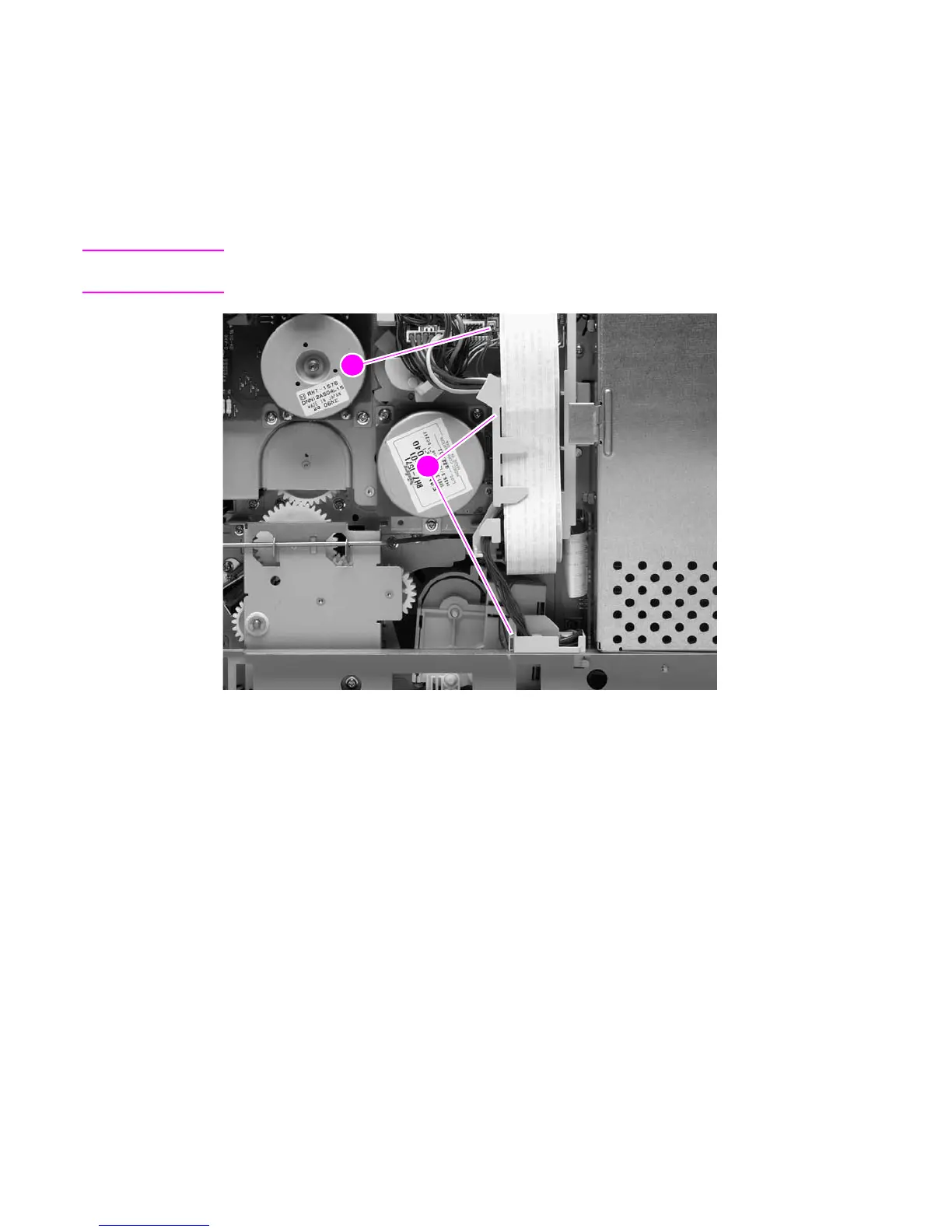

Figure 126. Tray 2 lifter-drive assembly (1 of 2)
1
2
1
2
