HP LaserJet 4250 - Troubleshooting

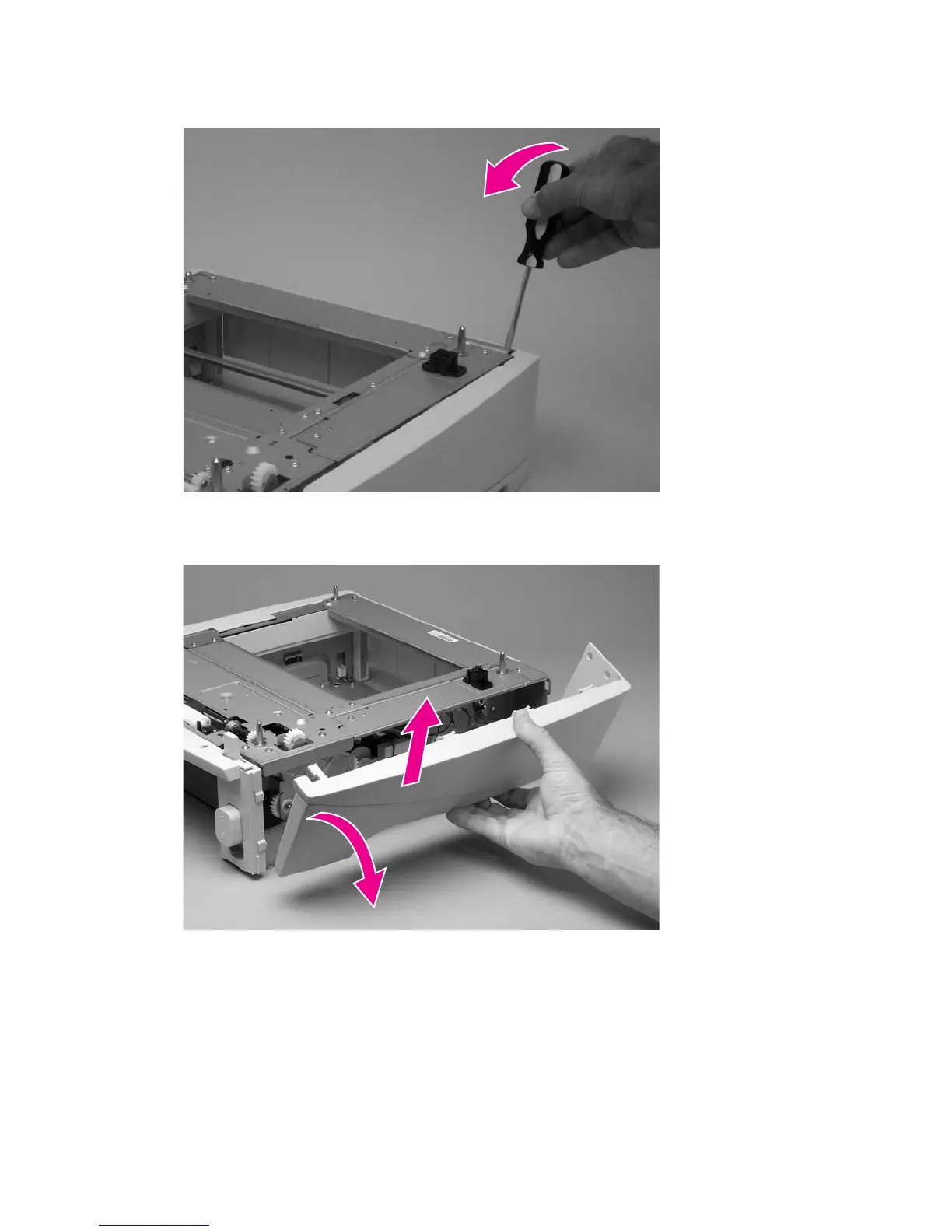

4 Use flat-blade screwdriver to release the rear locking tab.
Figure 6-102 500-sheet feeder right-side cover (4 of 5)
5 Rotate the top of the cover away from the tray assembly and lift it up to remove it.
Figure 6-103 500-sheet feeder right-side cover (5 of 5)
280 6 Removing and replacing parts
