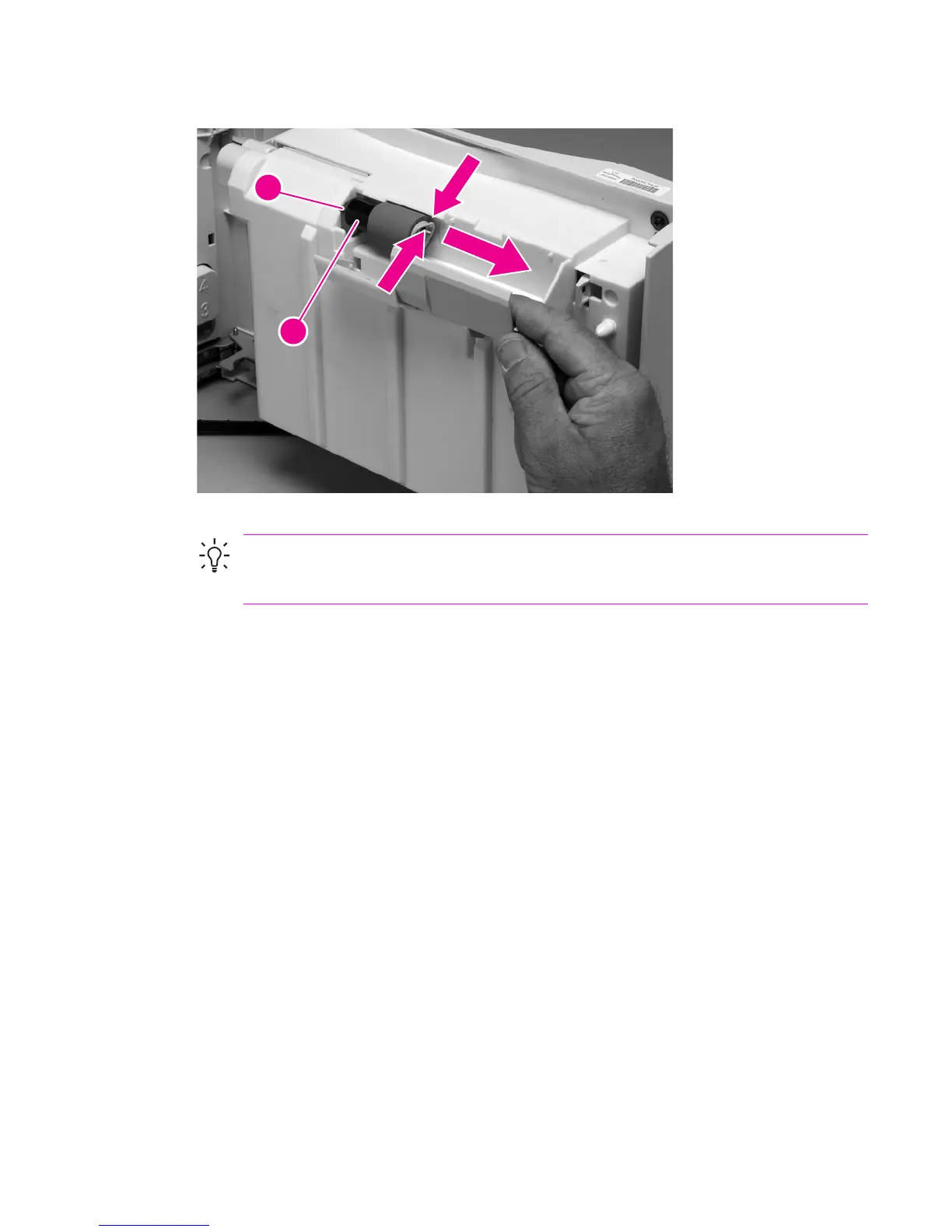

2 Pinch the blue latch that is on the side of the feed roller and slide the roller off of the shaft.
2
1
Figure 6-116 1,500-sheet feeder roller (2 of 2)
Reinstallation tip This roller must lock into place. Verify that the roller is seated on the
locking bars that are located on the round black spacer and that the spacer is seated on
the shaft-locking pin (callouts 1 and 2).
Accessories 289
