3. Disconnect three connectors (callout 1), and then release the wire harnesses from the guide
(callout 2).

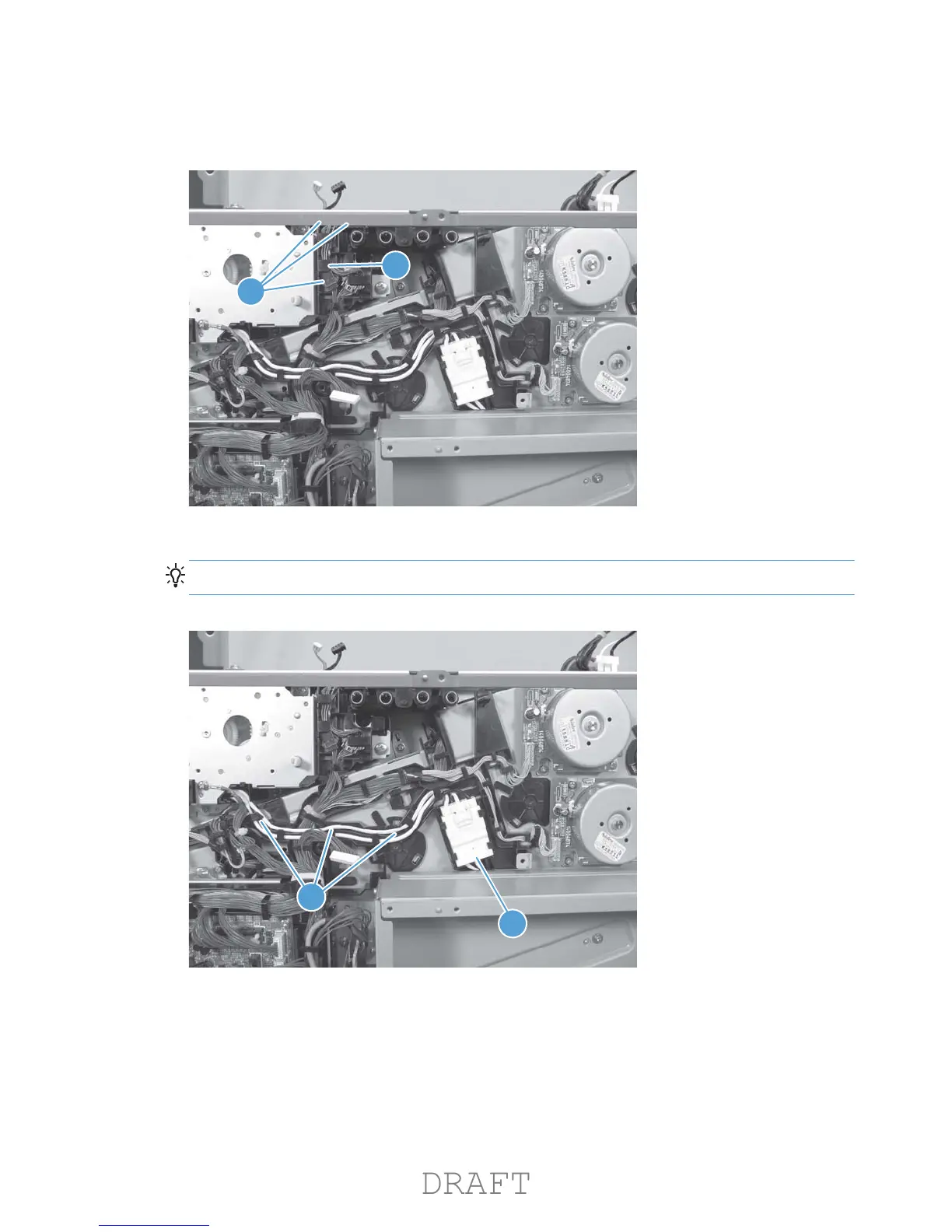

Figure 1-295 Remove the fuser gear assembly (3 of 7)
1
2
4. Disconnect one connector (callout 1), and then release the wire harness from the guide (callout 2).
TIP: It might be easier to disconnect the connector, if you release it from the black-plastic holder.
Figure 1-296 Remove the fuser gear assembly (4 of 7)
2
1
