1x500 left cover
1. Take the cassette out of the feeder, release one tab (callout 1), and then remove the lever
(callout 2).

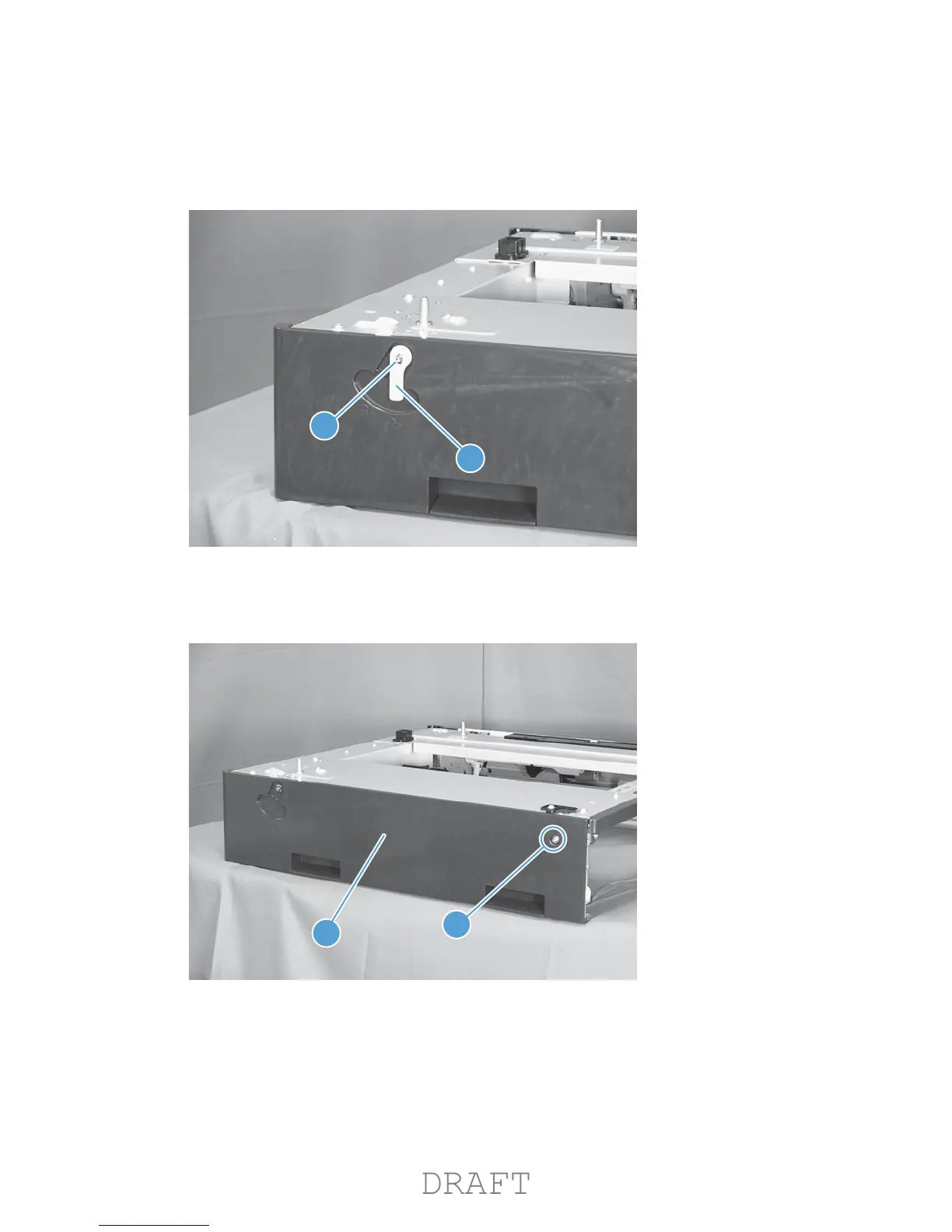

Figure 1-304 Remove the 1x500 left cover (1 of 2)
1
2
2. Remove one screw (callout 1), release four tabs from the inside (see the tip that follows this step),
and then remove the left cover (callout 2).
Figure 1-305 Remove the 1x500 left cover (2 of 2)
1
2
220 Chapter 1 Removal and replacement ENWW
