PD controller PCA
Before proceeding, remove the following assemblies:
●
PD rear cover. See
PD rear cover on page 234.
Remove the controller PCA
TIP: For the 3x500-sheet paper deck, use this procedure to remove any of the controller PCAs.
1. Disconnect all of the connectors.
2. Remove two screws (callout 1)

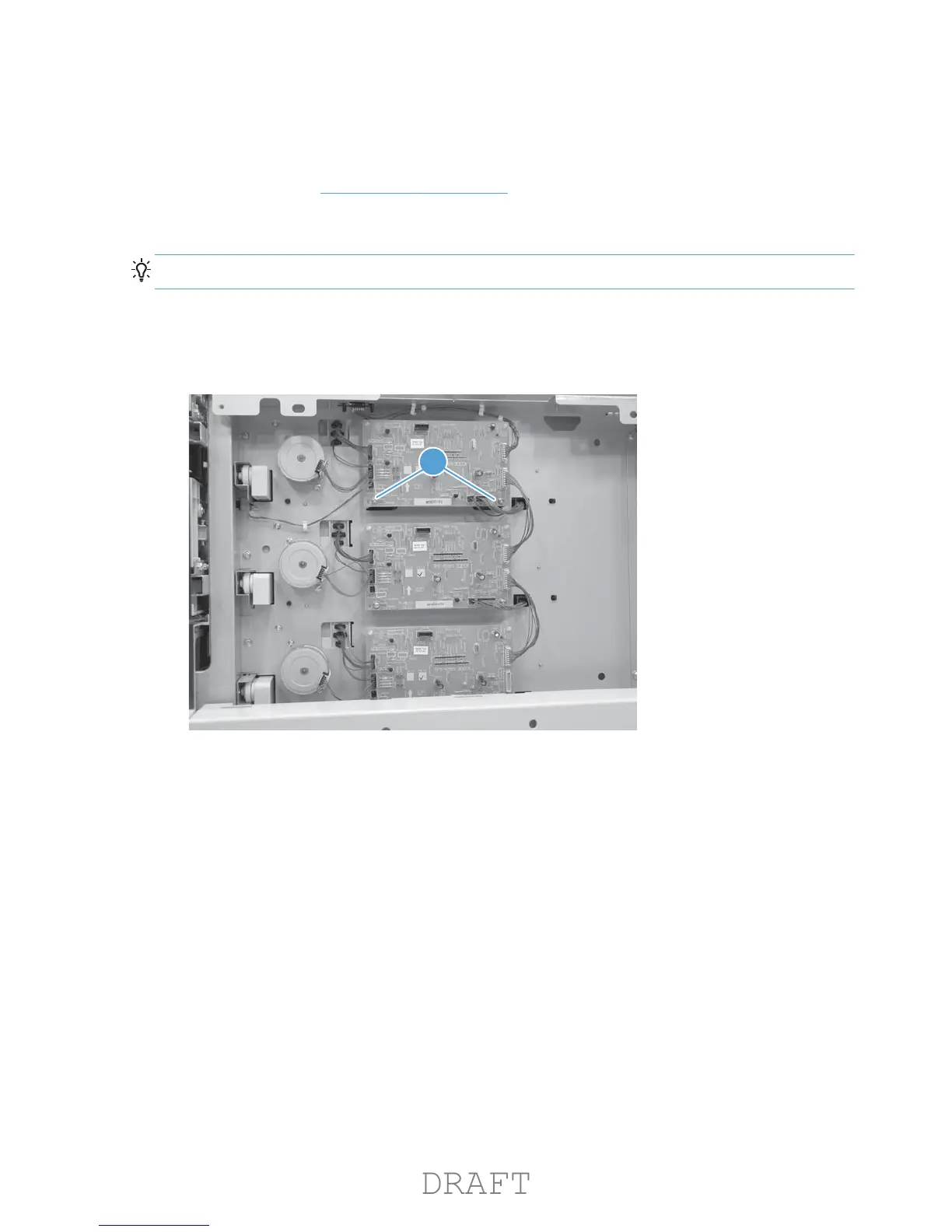

Figure 1-356 Remove the PD controller PCA (1 of 2)
1
