2. Turn the document feeder right-side up, open the document feeder hatch cover, and then remove
one screw (callout 1).

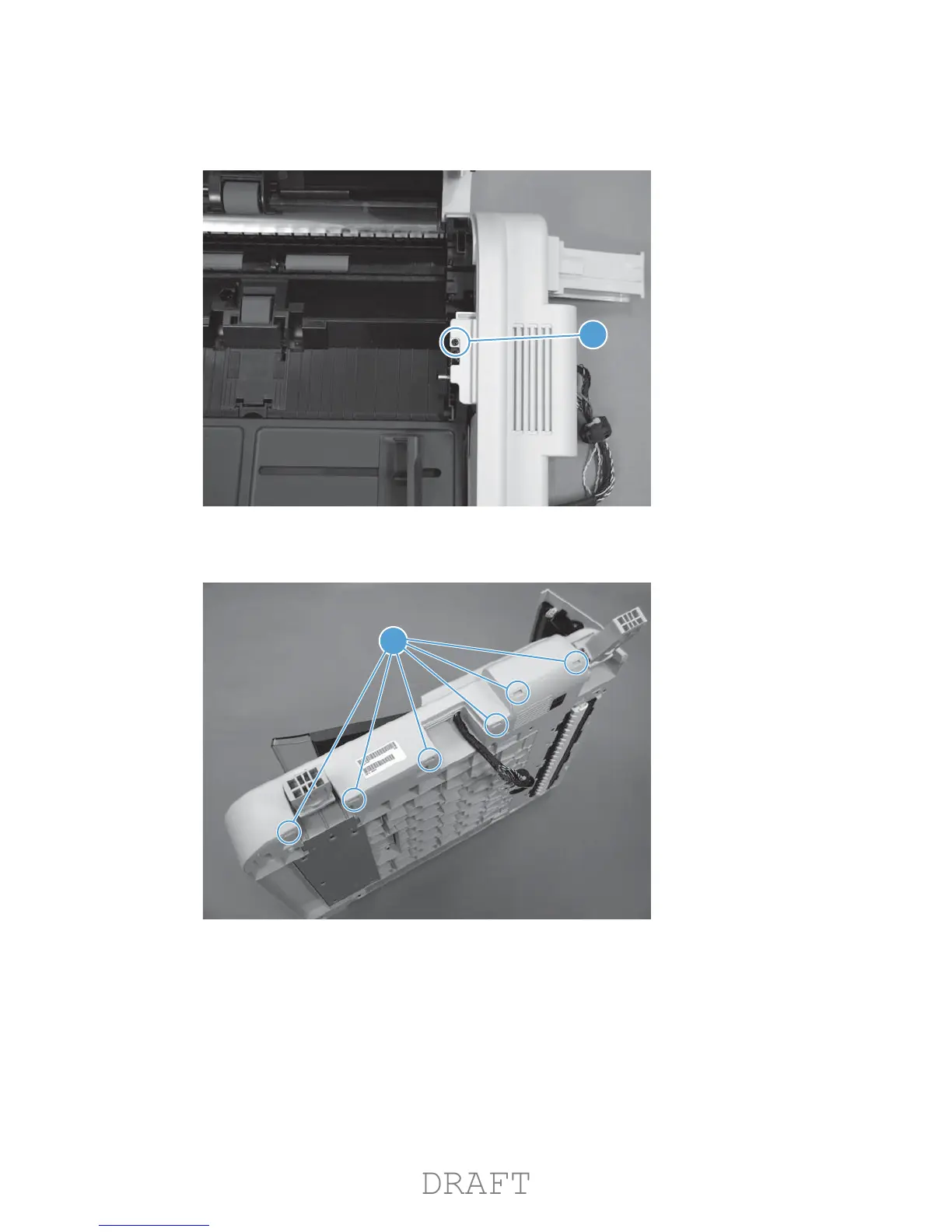

Figure 1-67 Remove the document feeder rear cover (2 of 4)
1
3. Release six tabs (callout 1) along the bottom edge of the cover.
Figure 1-68 Remove the document feeder rear cover (3 of 4)
1
