6. Remove one screw (callout 1), and then remove the hinge (callout 2).

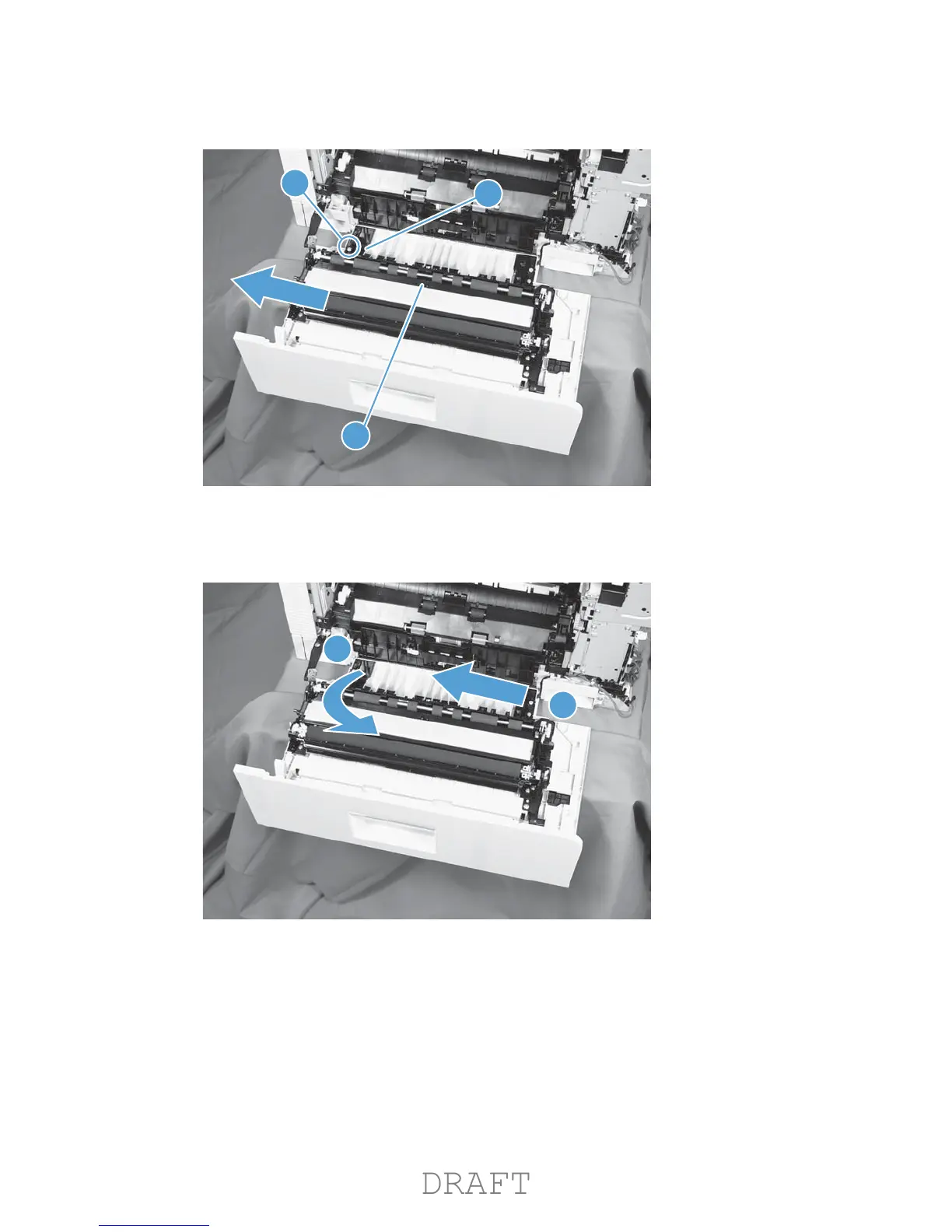

Figure 1-94 Remove the right door assembly (6 of 7)
1
2
3
7. Rotate the left side of the door away from the product, and then slide the door assembly to the left
to remove it.
Figure 1-95 Remove the right door assembly (7 of 7)
1
2
ENWW
Covers, doors, and whole unit replacement
63
