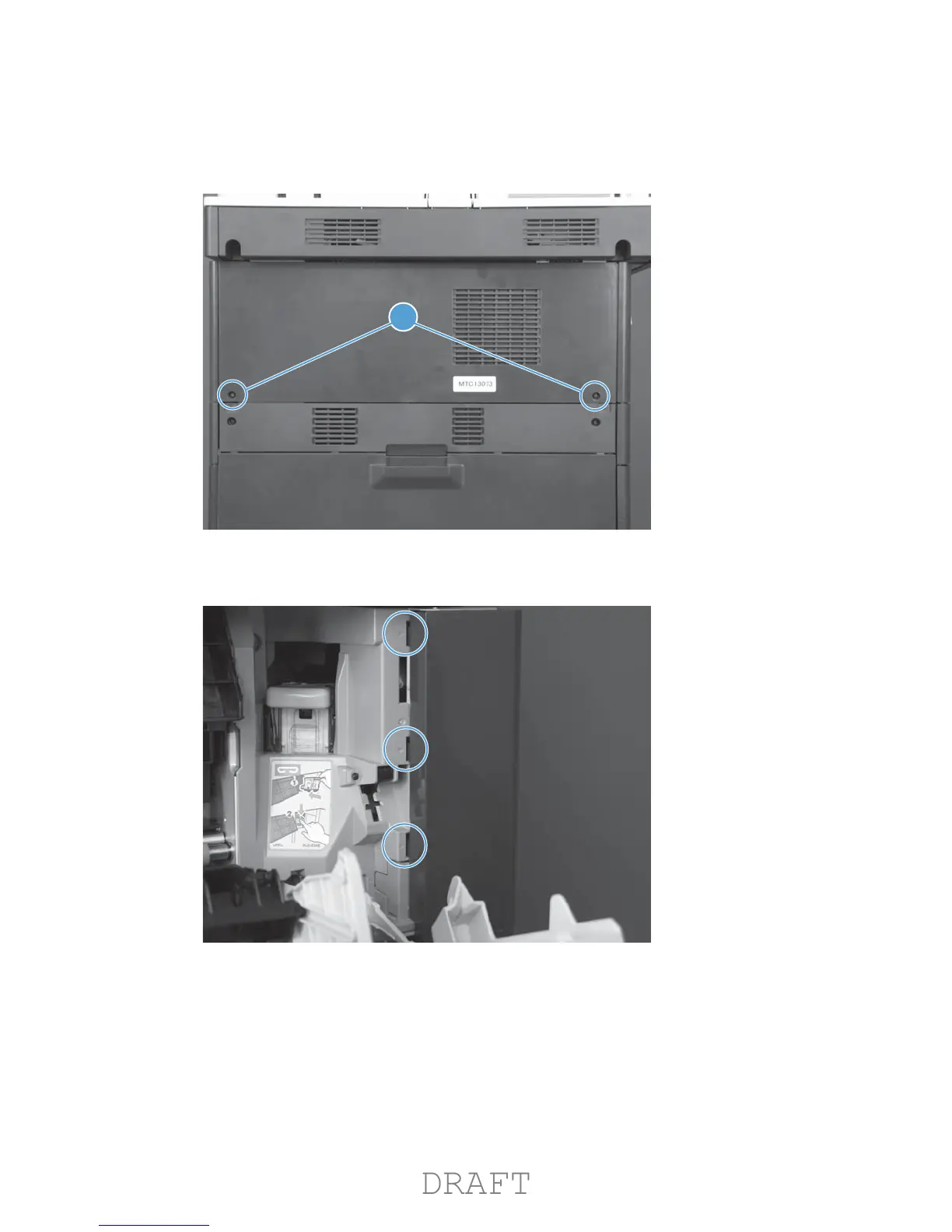

Stapler/stacker rear cover
1. Remove two screws (callout 1).
Figure 1-100 Remove the stapler/stacker rear cover (1 of 3)
1
2. Open the jam access door, and then release three tabs (callout 1).
Figure 1-101 Remove the stapler/stacker rear cover (2 of 3)
ENWW
Covers, doors, and whole unit replacement
67
