7. Slide the cover toward the right side of the printer to clear the tab (1) on the duplexer tray
(duplex models only).

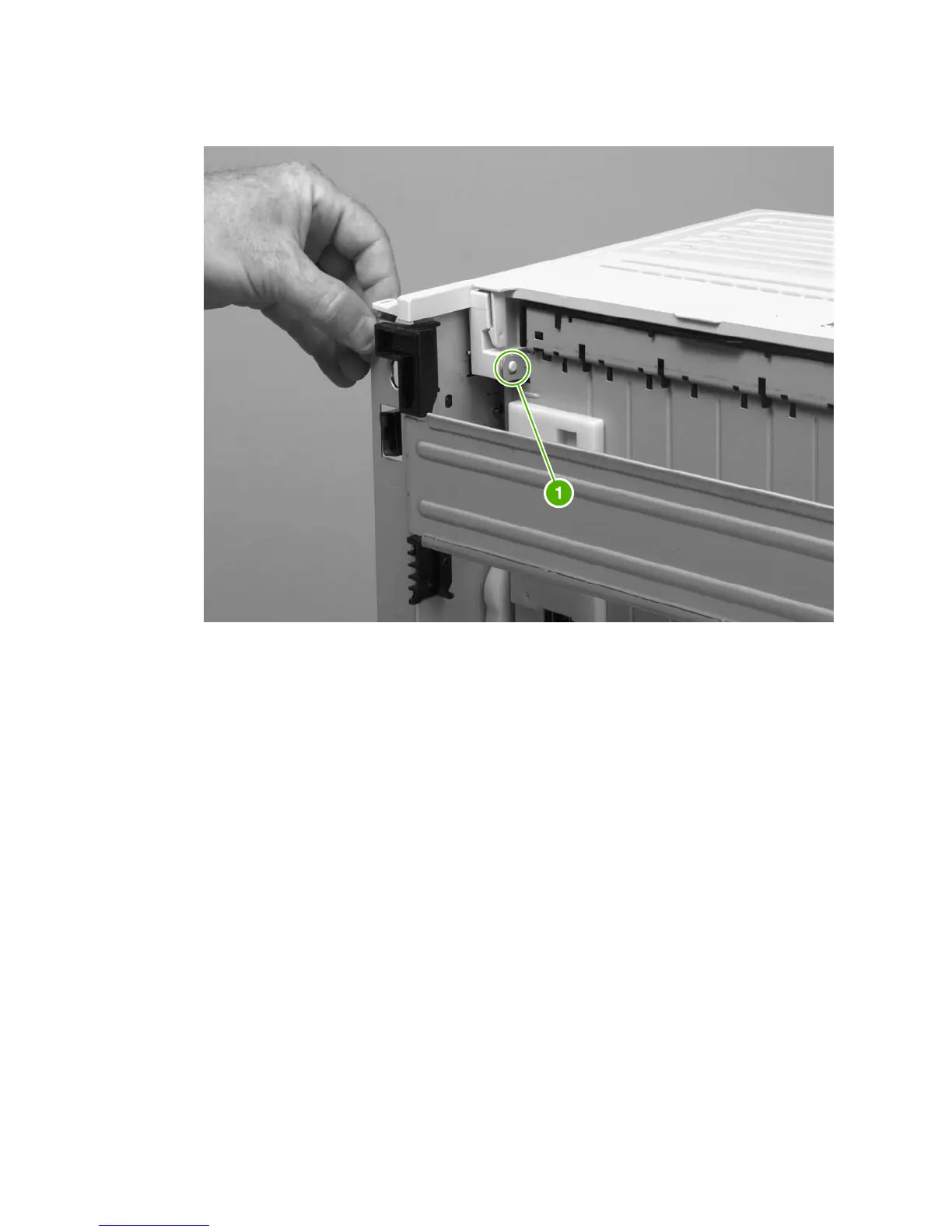

Figure 6-4 Removing the back cover (2 of 2)
8. Lift the cover straight up and away from the printer.
Duplexer tray (HP LaserJet P2015d, P2015dn, and P2015x printers
only)
1. Remove the left-side cover, the right-side cover, and the back cover.
