Top door assembly
Before proceeding, remove the following components:
●
Right cover assembly. See
Right cover assembly on page 18.
●
Left cover assembly. See
Left cover assembly on page 19.
Remove the top door assembly
1. Remove one screw (callout 1).

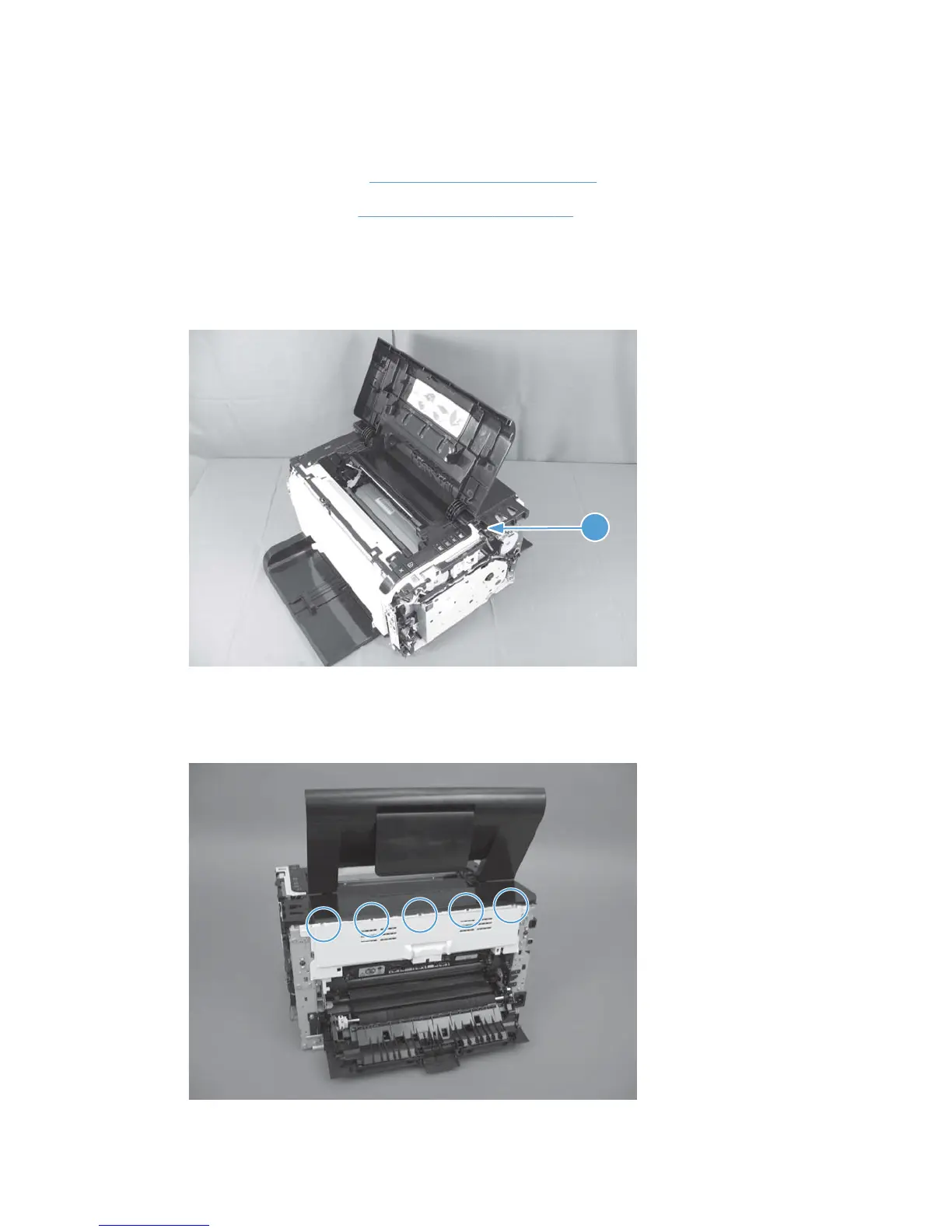

Figure 1-12 Remove the top door assembly (1 of 3)
1
2. Use a small, flat blade screwdriver to release the five tabs between the top door assembly and the
rear top cover.
Figure 1-13 Remove the top door assembly (2 of 3)
20 Chapter 1 Removal and replacement ENWW
