HP LaserJet Pro CP1025 - Color Printer - Rear door assembly

Rear door assembly
Before proceeding, remove the following components:
●
Right cover assembly. See
Right cover assembly on page 18.
Remove the rear door assembly
1. Remove one screw (callout 1) and the bushing (callout 2).

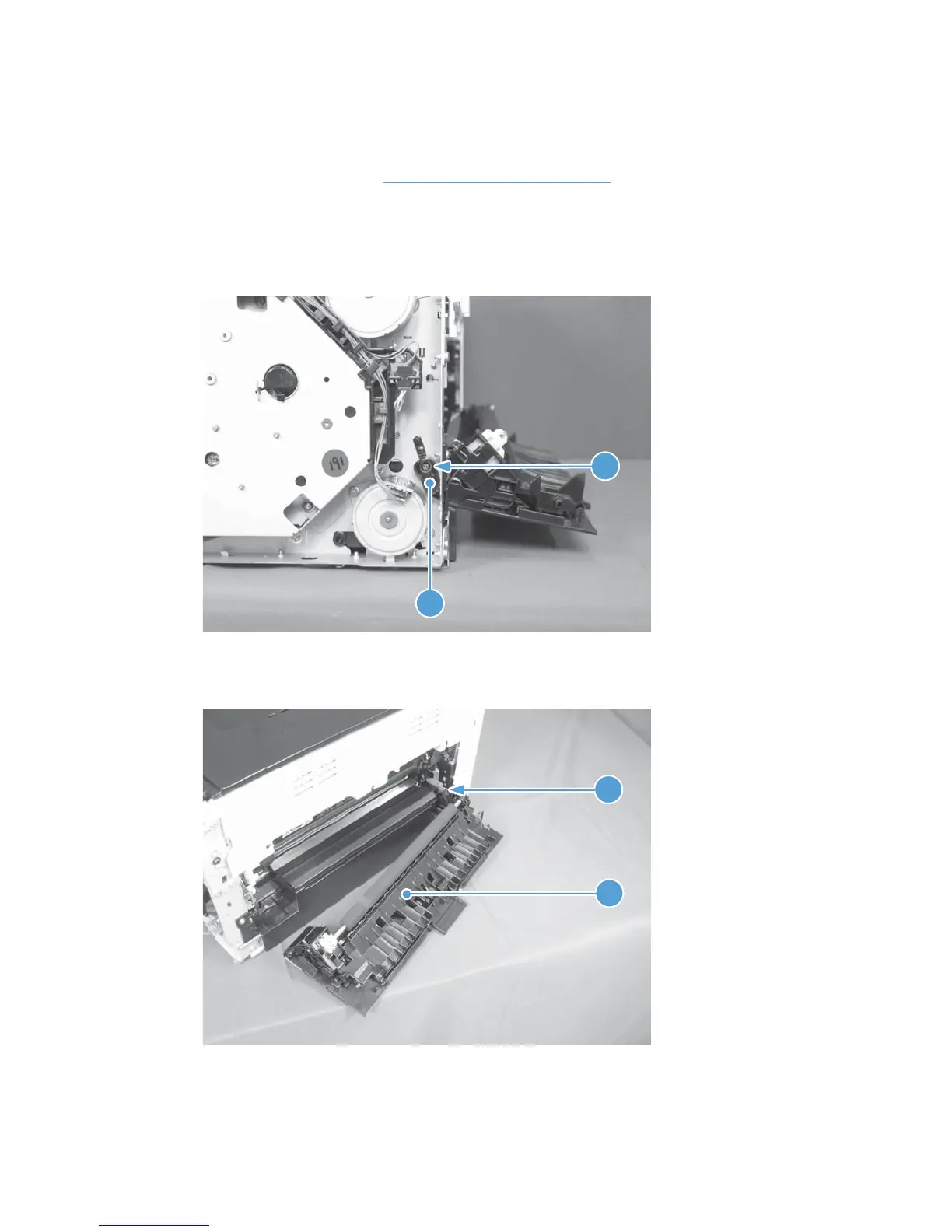

Figure 1-17 Remove the rear door assembly (1 of 2)
2
1
2. Pull out the shaft (callout 1) and remove the rear door assembly (callout 2).
Figure 1-18 Remove the rear door assembly (2 of 2)
1
2
