HP LaserJet Pro CP1025 - Color Printer - Rear lower cover assembly

Rear lower cover assembly
Before proceeding, remove the following components:
●
Right cover assembly. See
Right cover assembly on page 18.
●
Left cover assembly. See
Left cover assembly on page 19.
●
Rear door assembly. See
Rear door assembly on page 23.
Remove the rear lower cover assembly
Remove two screws (callout 1) and the rear lower cover assembly (callout 2).

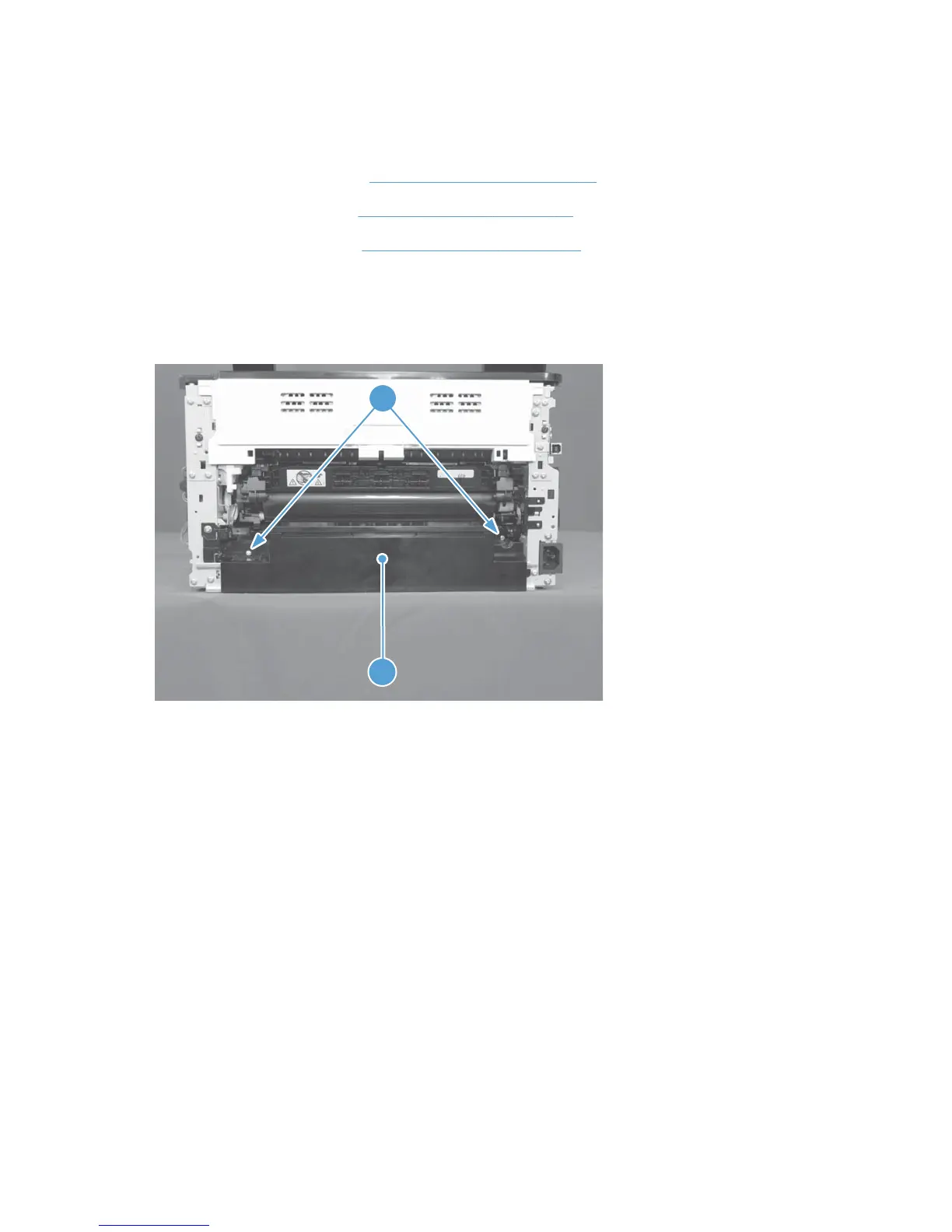

Figure 1-19 Remove the lower cover assembly
1
2
