2. Disconnect three connectors (callout 1), remove three screws (callout 2), and then remove the
formatter PCA.

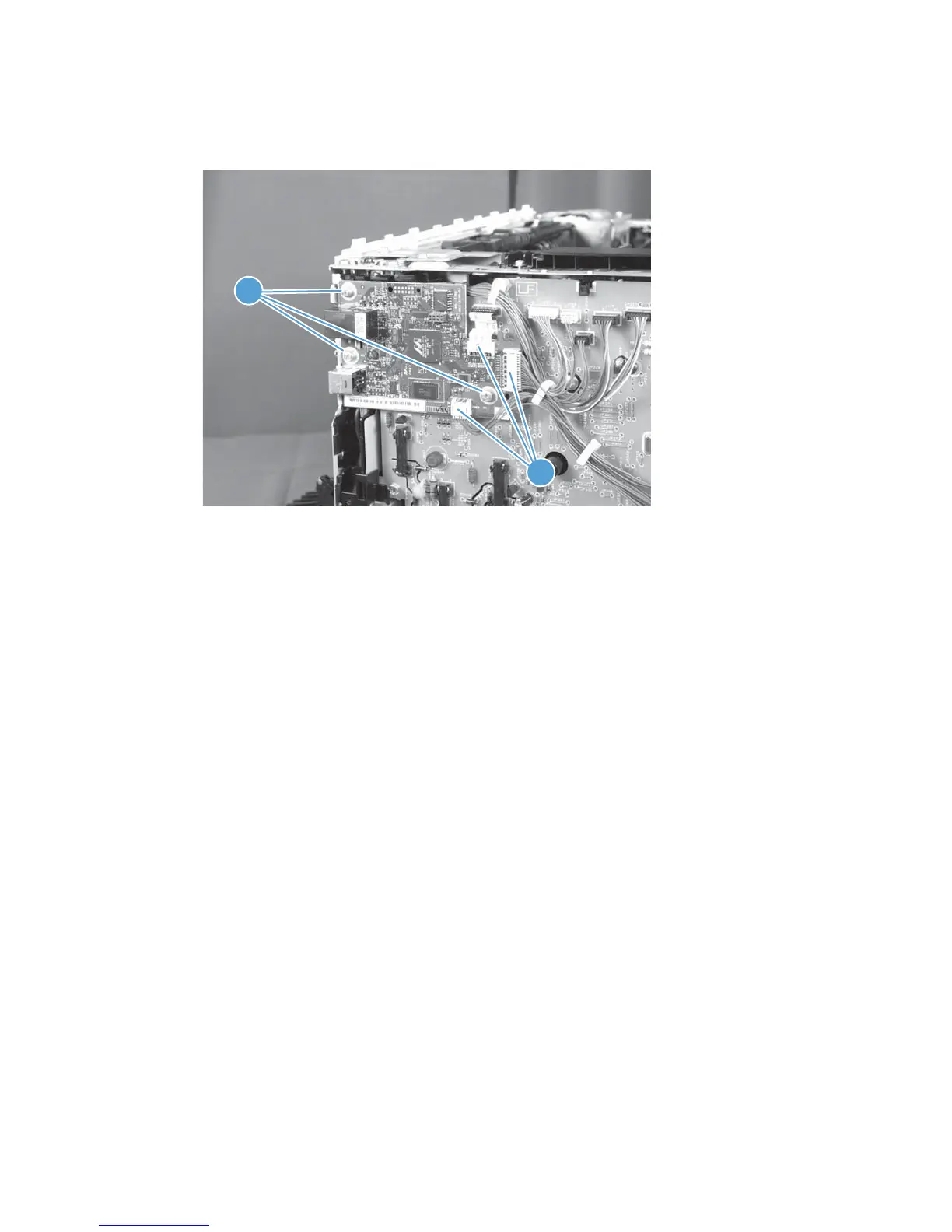

Figure 1-51 Remove the formatter and wireless PCA (plus mode; 2 of 2)
1
2
