Fuser motor
1. Remove the right cover. See Right cover on page 10.
2. Disconnect one wire-harness connector (callout 1).

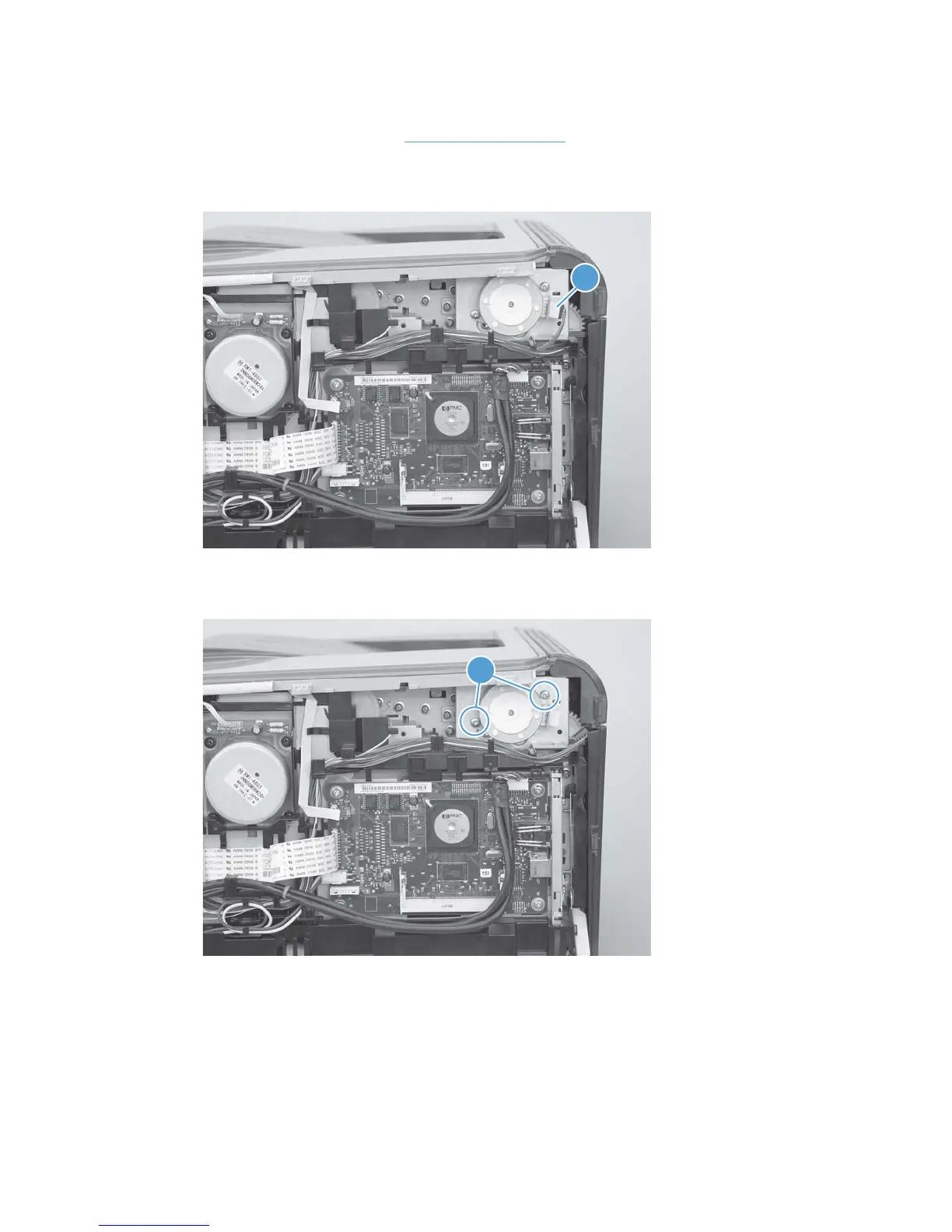

Figure 1-44 Remove the fuser motor (1 of 2)
1
3. Remove two screws (callout 2), and then remove the fuser motor.
Figure 1-45 Remove the fuser motor (2 of 2)
2
ENWW Removal and replacement procedures 29
