Rear-upper cover. See
Rear-upper cover on page 22.
●
Top cover. See
Top cover on page 25.
2. Release two tabs (callout 1), and then remove the protective cover (callout 2).

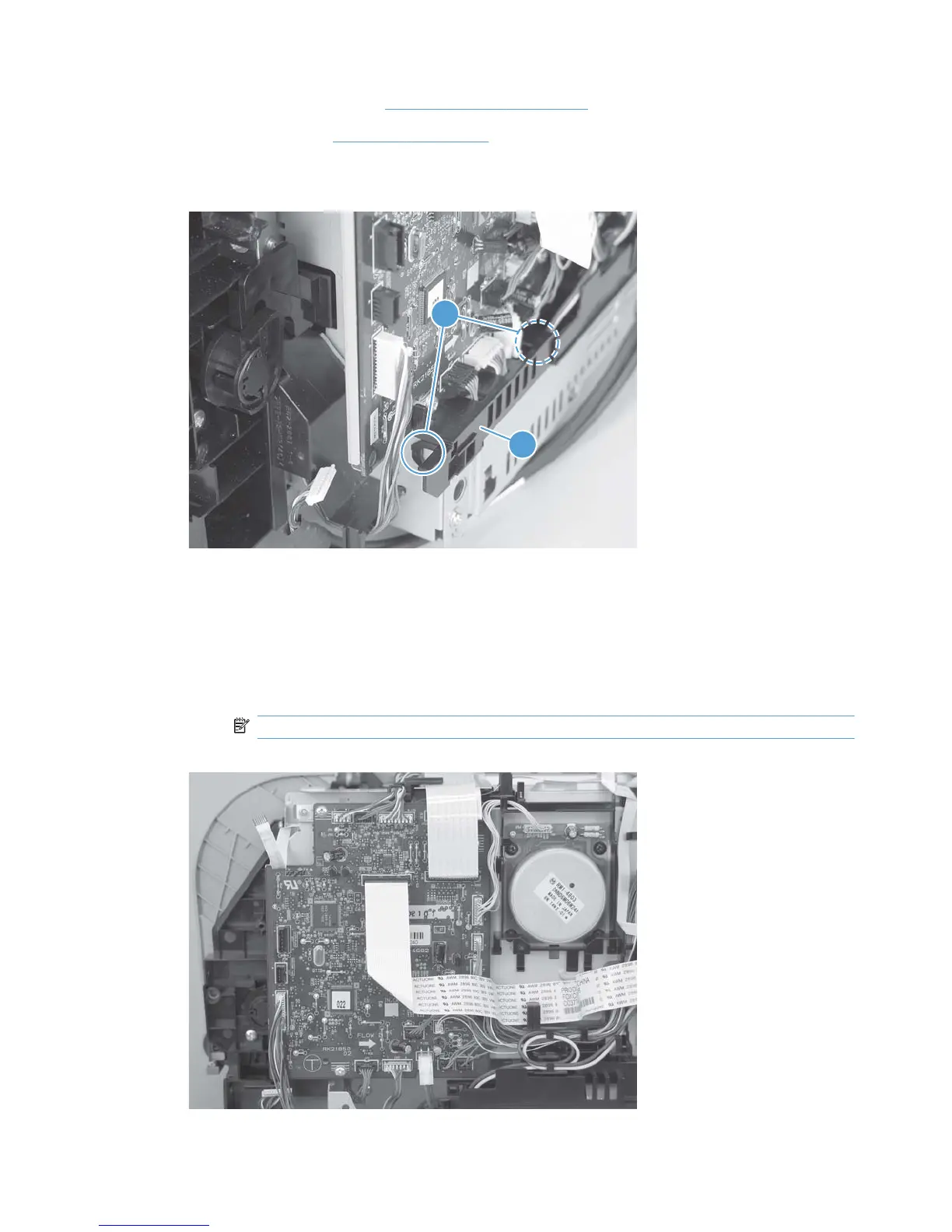

Figure 1-57 Remove the DC controller PCA (1 of 3)
1
2
3. Disconnect all of the FFCs and wire-harness connectors from the DC controller PCA.
●
Three FFCs: J107, J108, and J115
●
Wire harness
◦
15 wire-harness connectors: J012, J104, J105, J109, J110, J111, J112, J113, J116,
J117, J118, J119, J120, J121, and J124
NOTE: J126 and J127 are not used.
Figure 1-58 Remove the DC controller PCA (2 of 3)
