4. Remove four screws (callout 3), and then remove the DC controller PCA.
NOTE: These four screws are ground screws. Make sure that the correct screws are used to
reinstall the DC controller PCA.

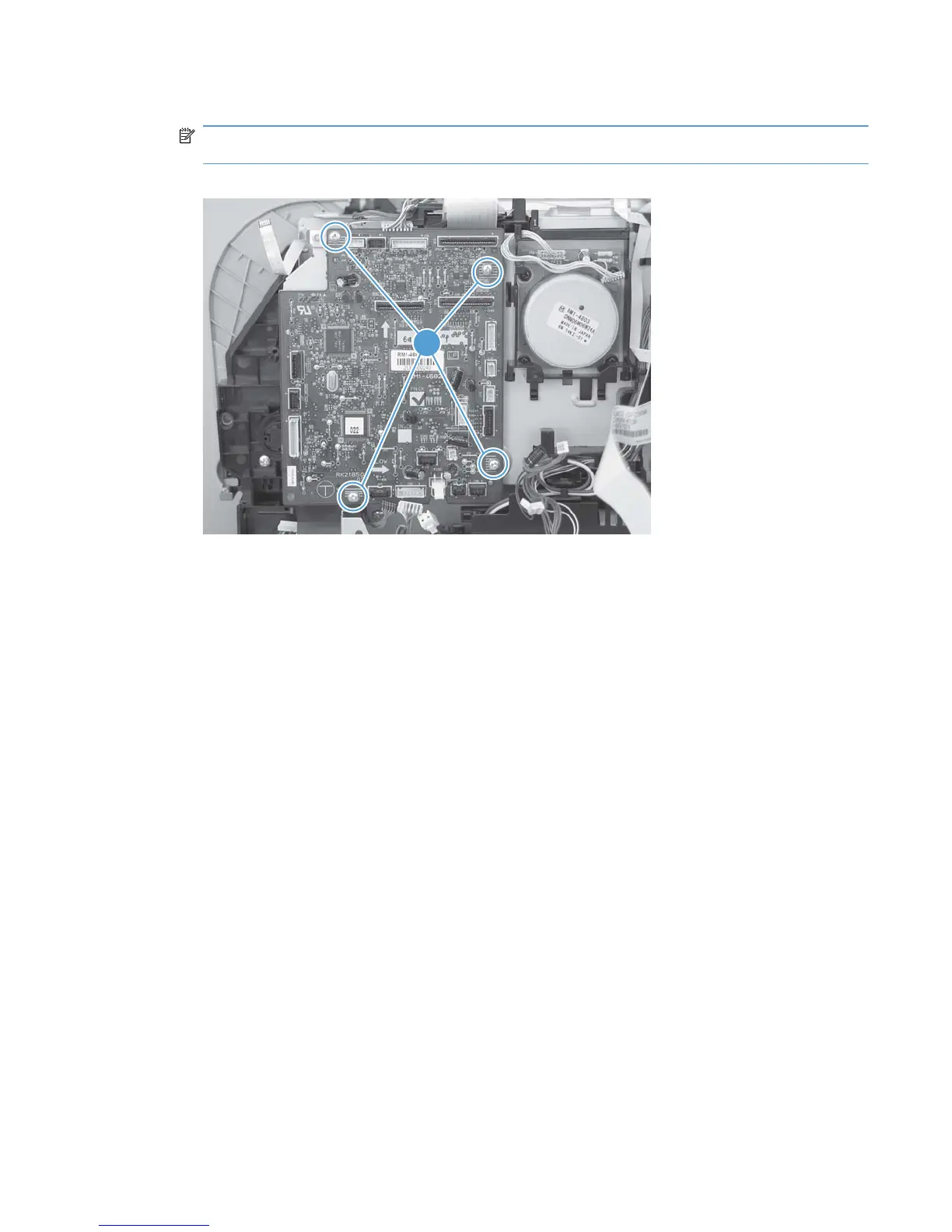

Figure 1-59 Remove the DC controller PCA (3 of 3)
3
ENWW Removal and replacement procedures 39
