2. Disconnect all of the FFCs and wire-harness connectors from the formatter PCA.
●
FFCs
◦
J2 and J5
●
Wire-harness connectors
◦
J1 and P4

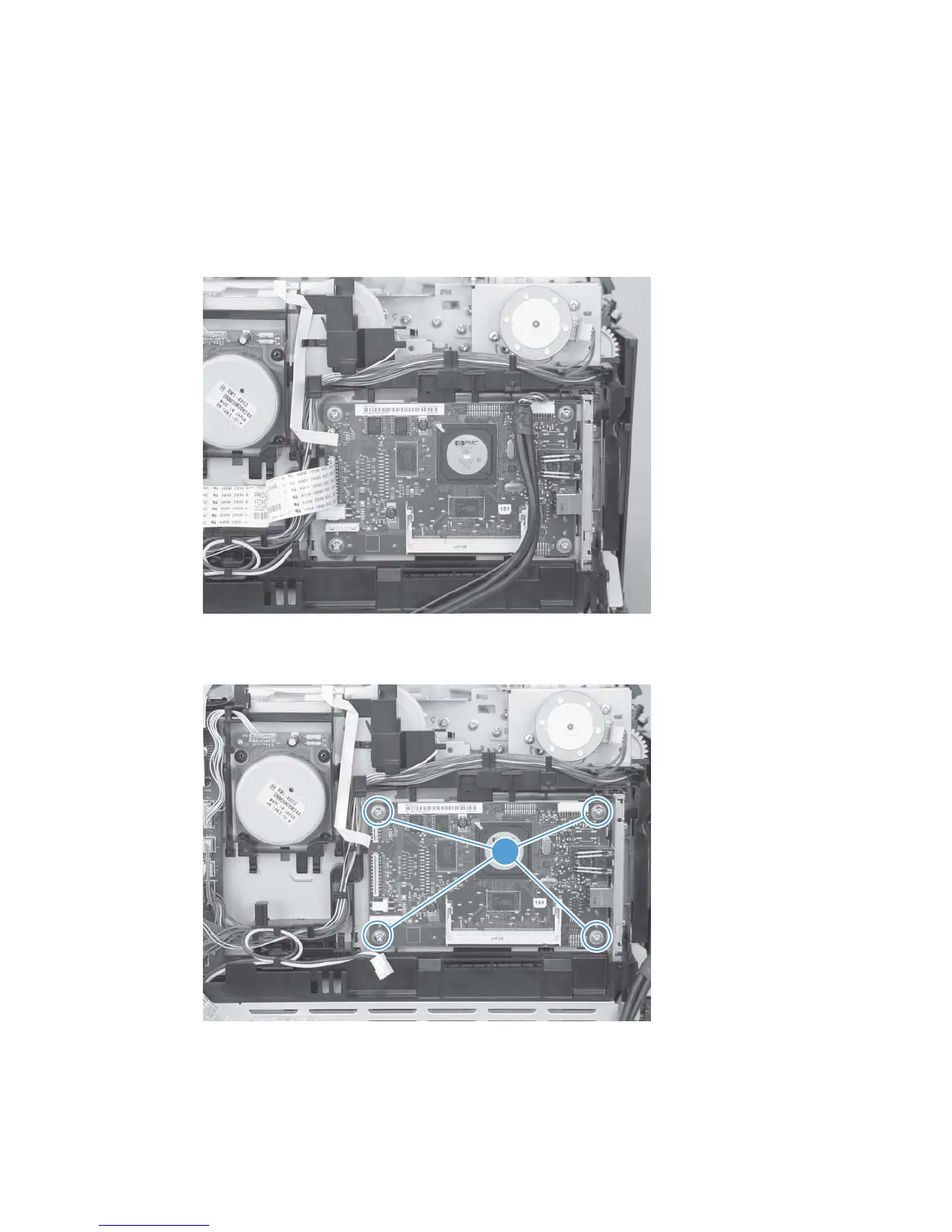

Figure 1-60 Remove the formatter PCA (1 of 2)
3. Remove four screws (callout 1), and then remove the formatter PCA.
Figure 1-61 Remove the formatter PCA (2 of 2)
1
