Wireless PCA
1. Remove the following components:
●
Right cover. See
Right cover on page 10.
2. Remove one screw (callout 1)
3. Release one tab (callout 2)
4. Disconnect one wire-harness connector (callout 3)

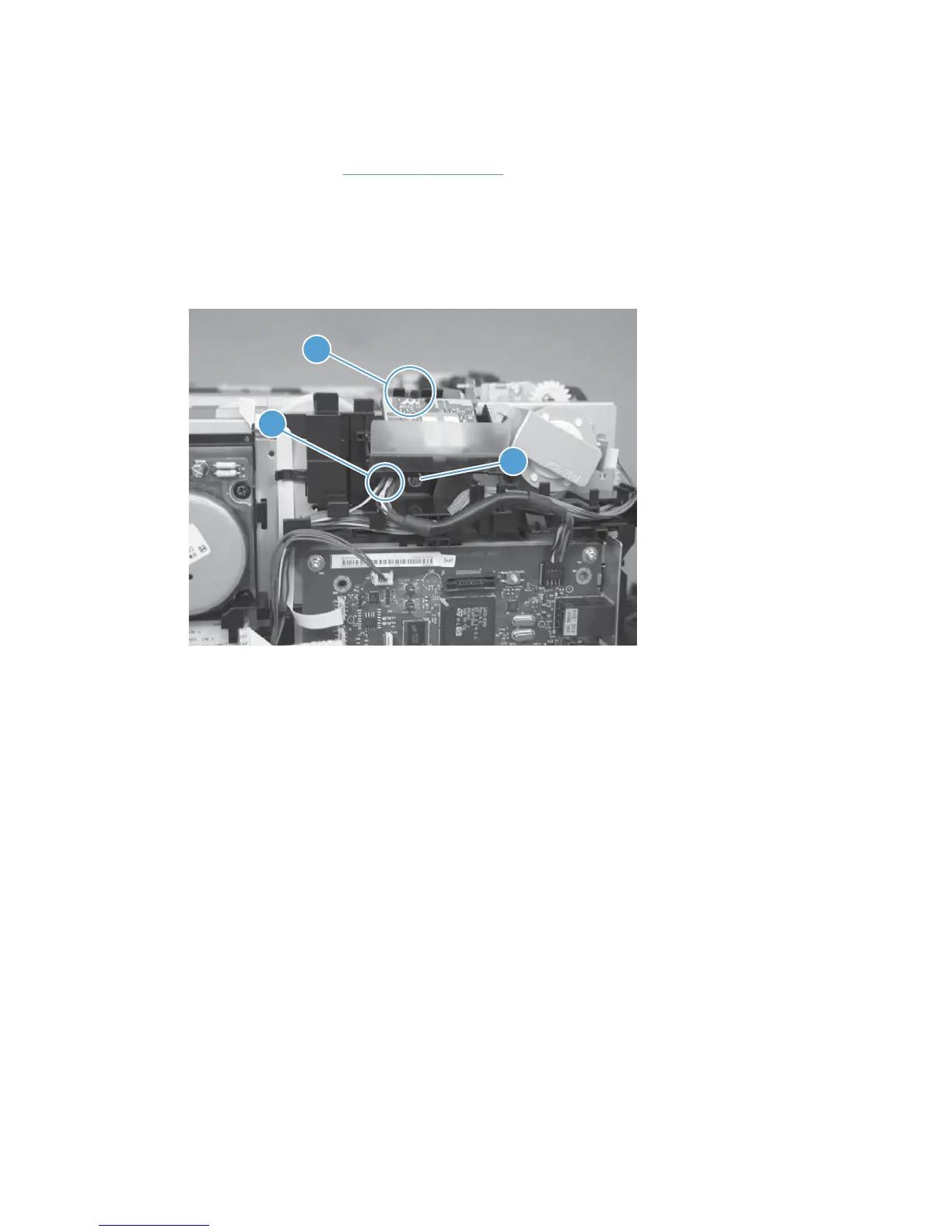

Figure 1-62 Remove the wireless PCA
2
3
1
42 Chapter 1 Removal and replacement ENWW
