Power supply (high-voltage)
CAUTION: Do not bend or fold the flat flexible cables (FFCs) during removal or installation. Also, do
not straighten pre-folds in the FFCs. You must make sure that all FFCs are fully seated in their
connectors. Failure to fully seat an FFC into a connector can cause a short circuit in a PCA.
1. Remove the following components:
●
Right cover. See
Right cover on page 10.
●
Left cover. See
Left cover on page 13.
●
Control-panel module. See
Control-panel module on page 19.
● Rear-side cover. See
Rear-side cover on page 21.
●
Rear-upper cover. See
Rear-upper cover on page 22.
●
Top cover. See
Top cover on page 25.
2. Disconnect one FFC (callout 1; J107) on the DC controller.

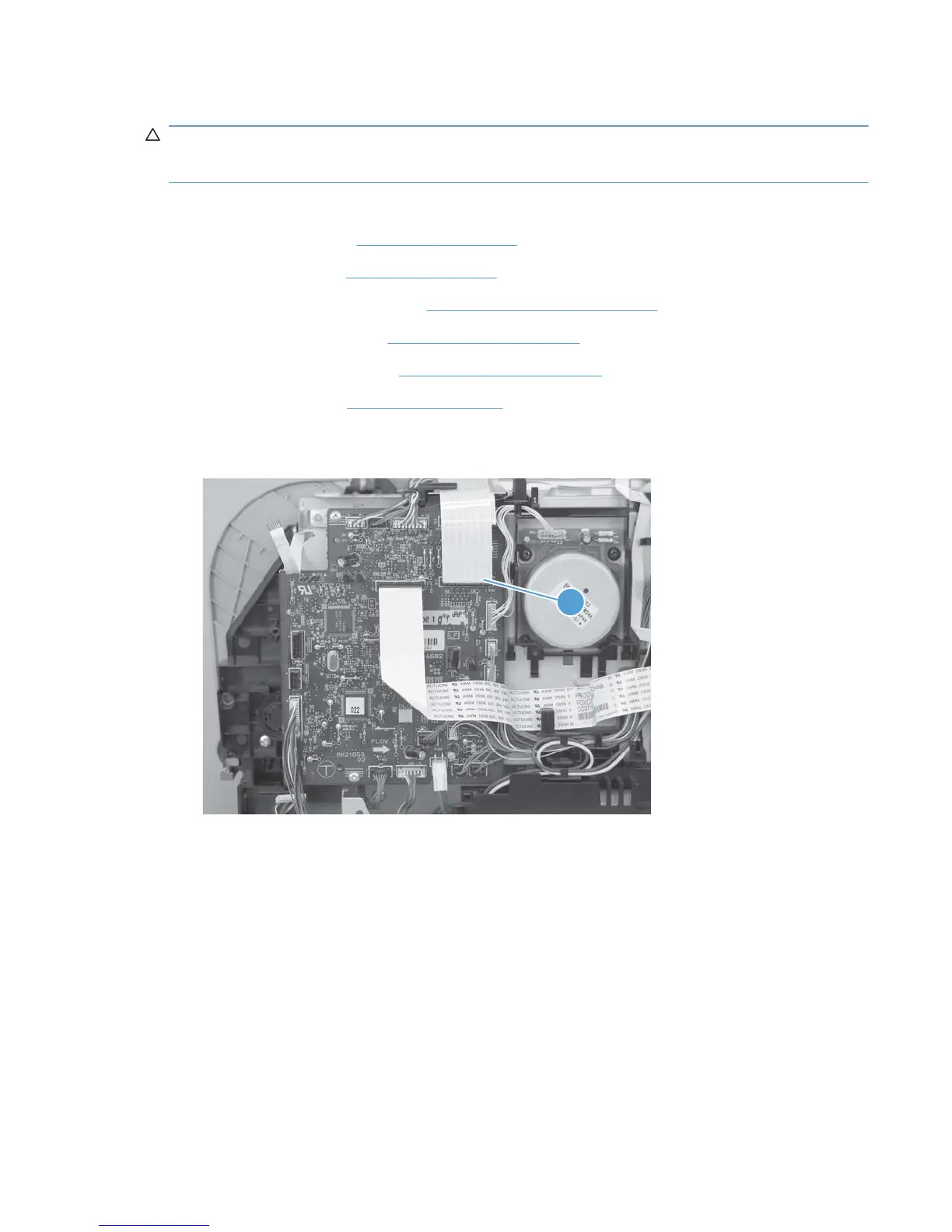

Figure 1-63 Remove the power supply (high-voltage; 1 of 6)
1
ENWW Removal and replacement procedures 43
