HP LaserJet Pro CP1525 - Color Printer - Fuser Replacement

Fuser
1. Remove the following components:
●
Right cover. See
Right cover on page 10.
●
Left cover. See
Left cover on page 13.
●
Control-panel module. See
Control-panel module on page 19.
●
Rear-side cover. See
Rear-side cover on page 21.
●
Rear-upper cover. See
Rear-upper cover on page 22.
●
Rear door and rear-lower cover. See
Rear door and rear-lower cover on page 23.
●
Top cover. See
Top cover on page 25.
2. Remove two screws (callout 1) and the power-supply cover (callout 2).

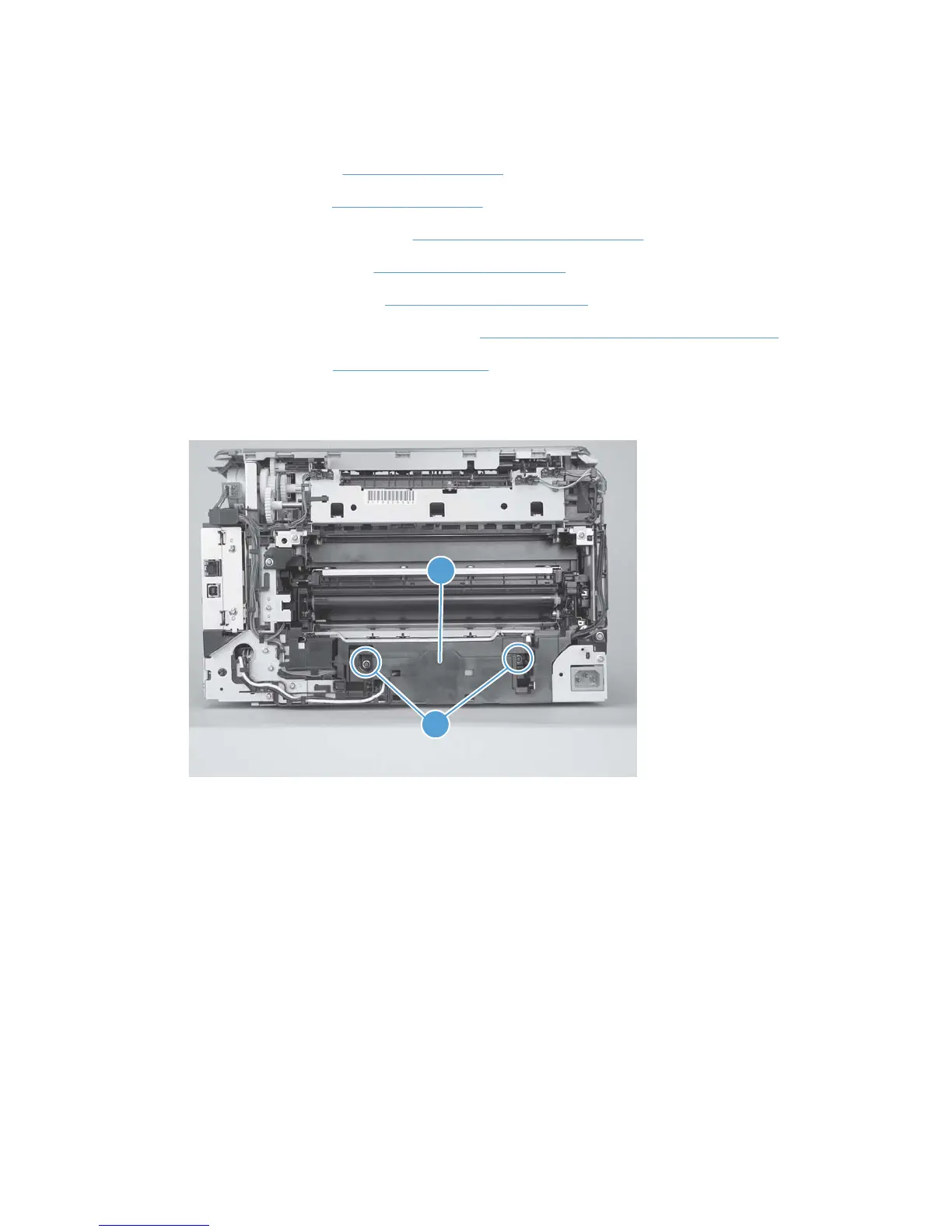

Figure 1-85 Remove the fuser (1 of 4)
1
2
