2. Swivel the monitor to the left or right for the best viewing angle.

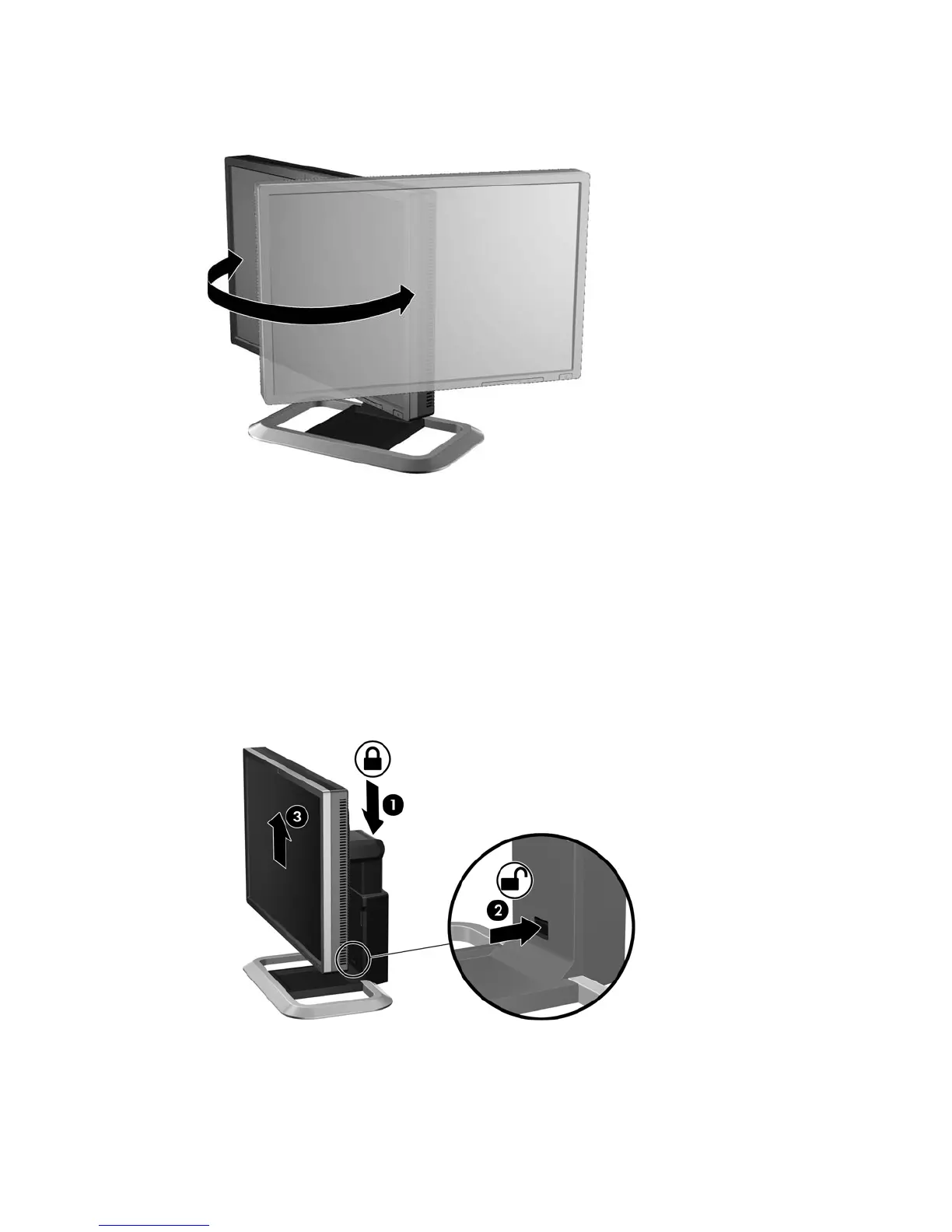

Figure 3-8 Swiveling the Monitor
3. Adjust the monitor's height so that it is parallel to your eye height for a comfortable viewing position.
A lock-down/release button on the front of the column prevents the display head from sliding up
when the monitor is lifted. If the display head is locked in the lowest height position:
a. Make sure that the monitor is safely positioned on a stable surface.
b. Gently push down on the display head (1).
c. While pushing down the display head, press the lock-down/release button on the front of the
column (2).
d. Guide the display head up to the desired height (3).
Figure 3-9 Adjusting the Height
14 Chapter 3 Setting Up the Monitor
