Separation pad assembly
Before proceeding, remove the following components:
●
Dust cover, input tray, and extension tray. See
Dust cover, input tray, and extension tray on page 9.
Remove the separation pad assembly
1. Rotate the product onto the rear side.
WARNING! The ADF portion of the document feeder is not captive and can open when the product is
placed face up. Make sure to support the ADF when handling the product.
NOTE: Dirt and debris can scratch the surface of the product. Make sure to place the product face up
on a clean work space or on a clean soft cloth.
2. Remove two screws (callout 1) and the separation pad assembly (callout 2).

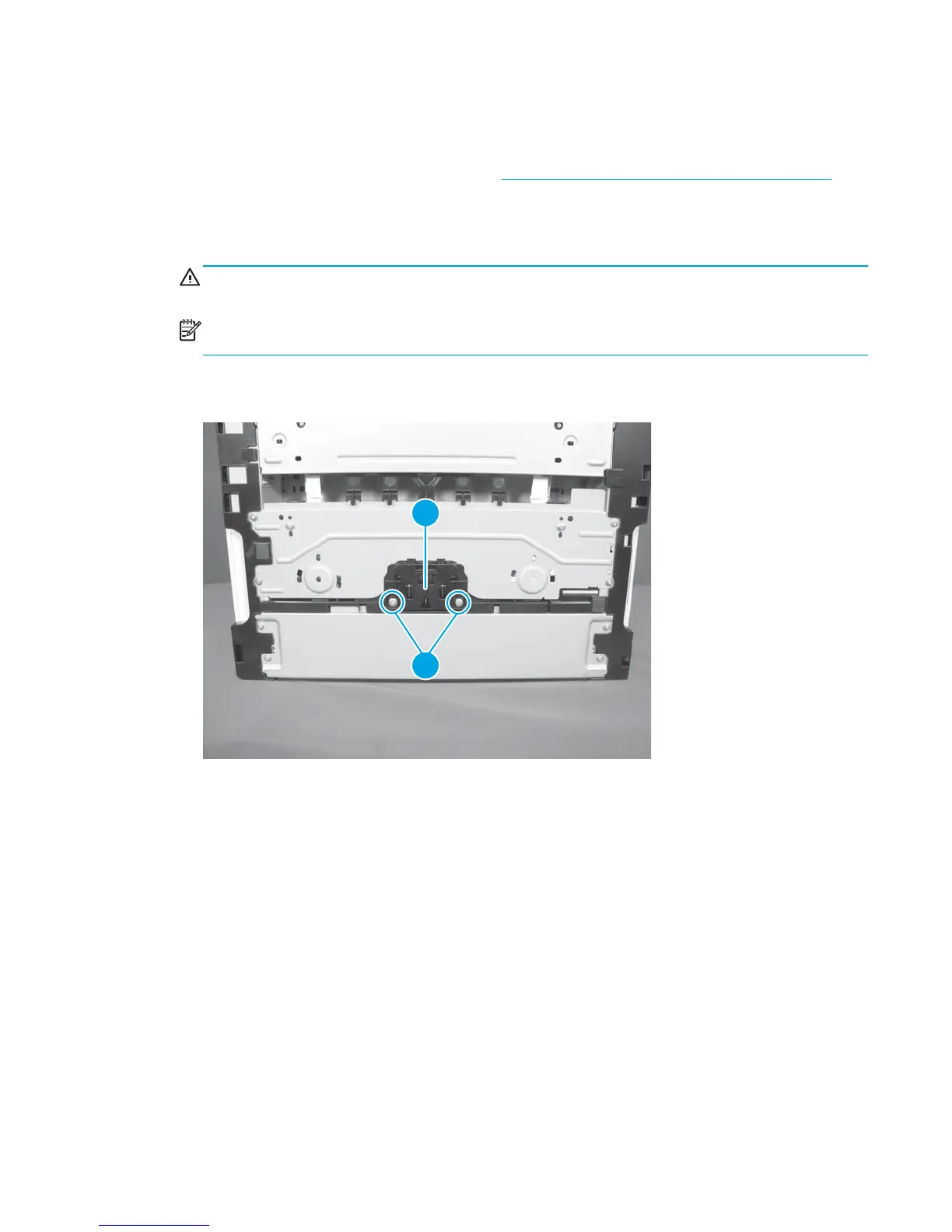

Figure 1-5 Remove the separation pad assembly
2
1
ENWW Removal and replacement procedures 11
