Make sure the cartridge lock release springs are positioned correctly. The left spring sits in the center
slot of the top cover hinge (callout 1). The right spring sits in the right slot of the top cover hinge
(callout 2).

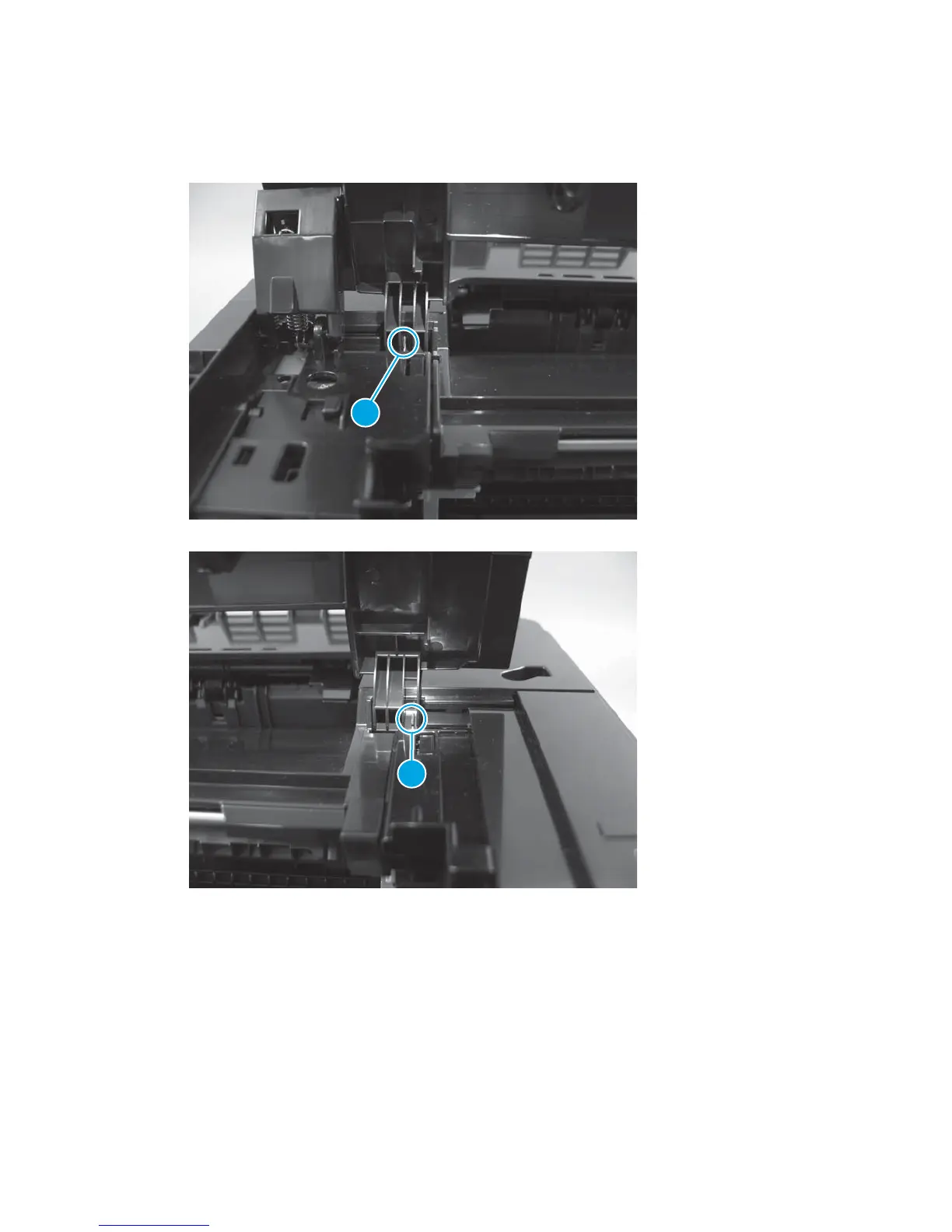

Figure 1-30 Correct postion for the left-side cartridge lock release spring
1
Figure 1-31 Correct position for the right-side cartridge lock release spring
2
26 Chapter 1 Removal and replacement ENWW
