Grounding cable cover and right top cover
Before proceeding, remove the following components:
●
Dust cover, input tray, and extension tray. See
Dust cover, input tray, and extension tray on page 9.
●
Left cover. See
Left cover on page 12.
●
Document feeder (M177 model only), scanner, and flat cable cover. See
Document feeder, scanner, and
flat cable cover (M177 model only) on page 14 or Scanner and flat cable cover (M176 model only)
on page 16.
●
Right cover. See
Right cover on page 18.
●
Top cover. See
Top cover on page 20.
Remove the grounding cable cover and the right top cover
1. Remove one screw (callout 1) and the grounding cable cover (callout 2).

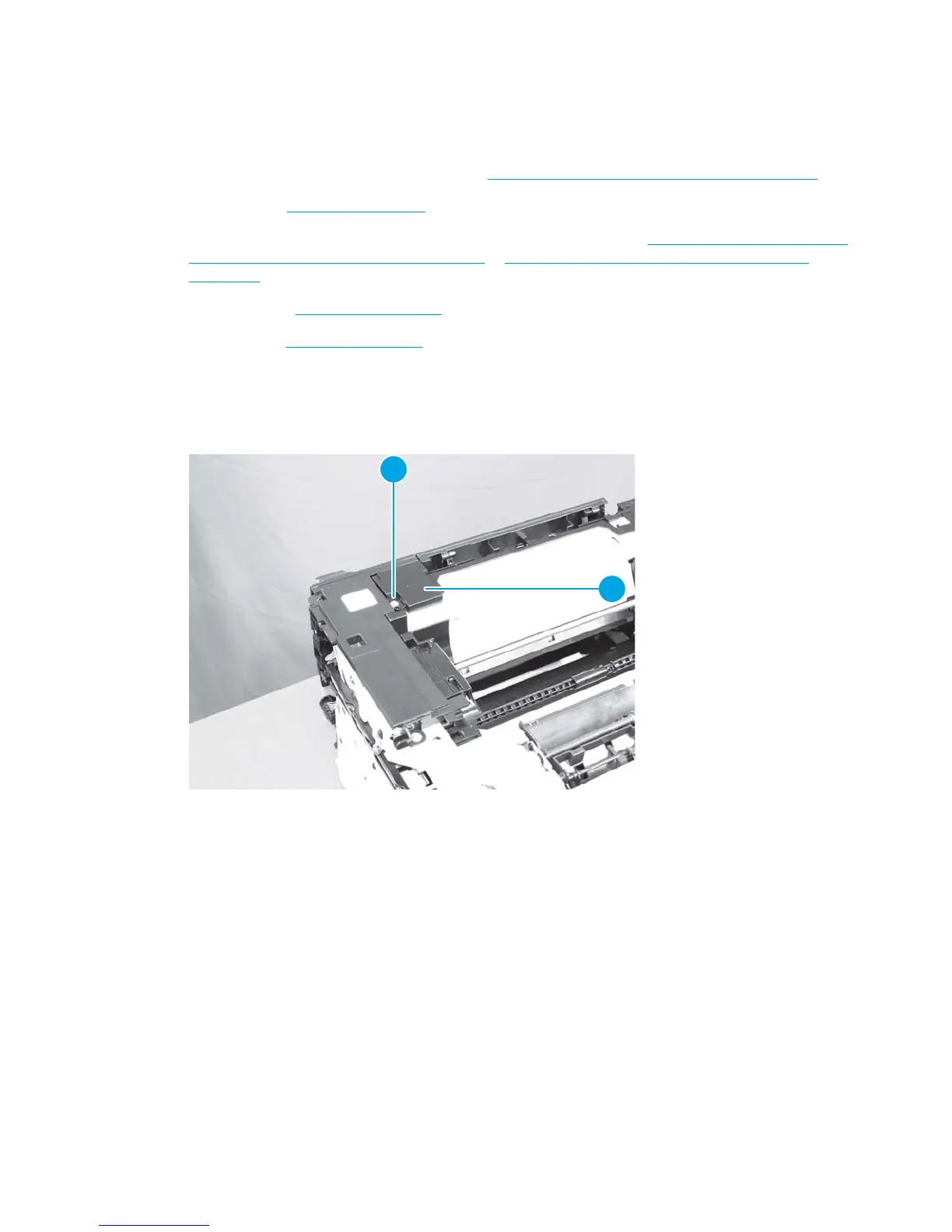

Figure 1-36 Remove the grounding cable cover
1
2
30 Chapter 1 Removal and replacement ENWW
