5.

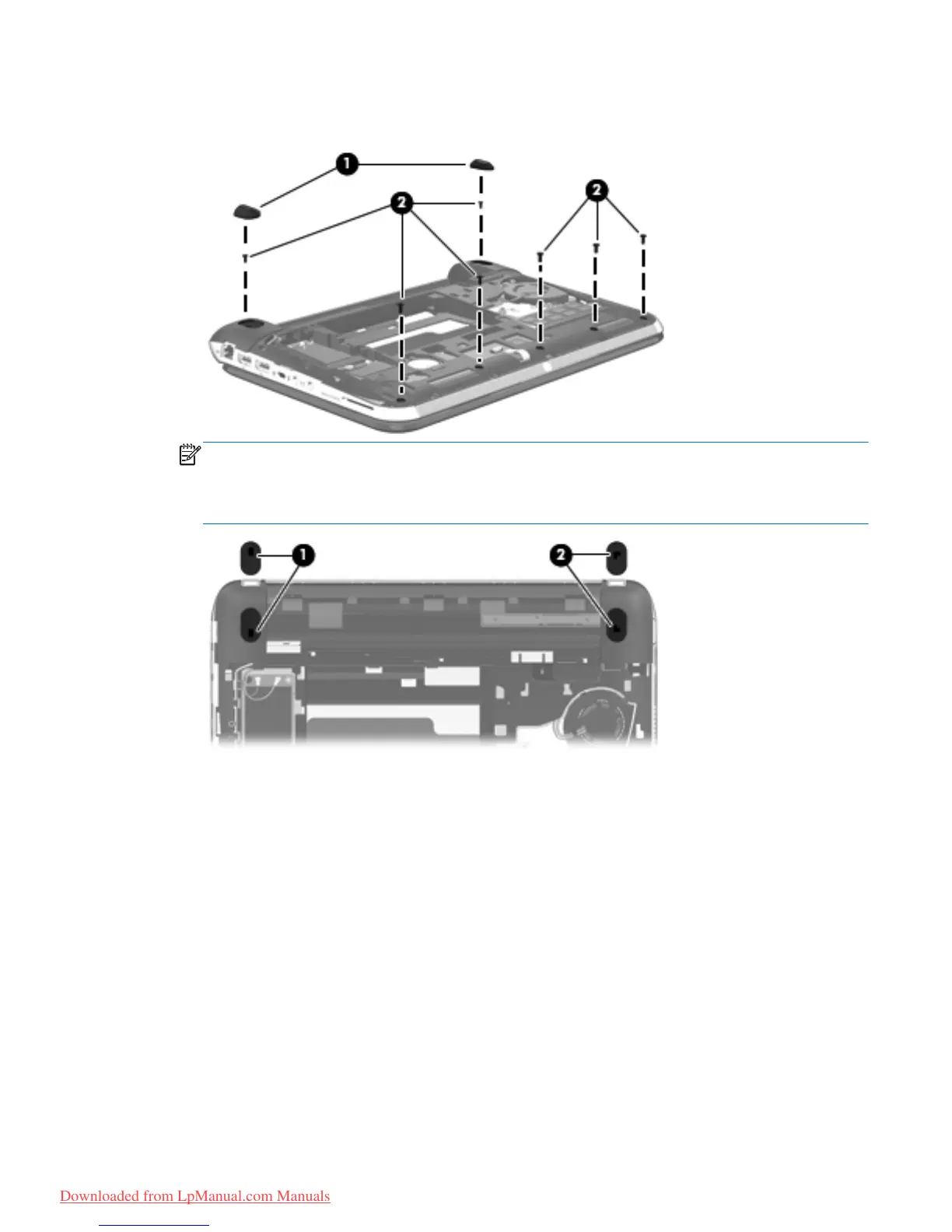

Remove the seven Phillips PM2.0×5.0 screws (2) that secure the top cover and the corner covers
to the base enclosure.
NOTE: The rubber feet are notched differently. The rubber foot (1) that fits on the left side has a
rectangular alignment notch. The rubber foot (2) that fits on the right side has an “L”-shaped
alignment notch. When installing the rubber feet, align them according to the side of the computer
on which they should be installed.
Component replacement procedures
69
