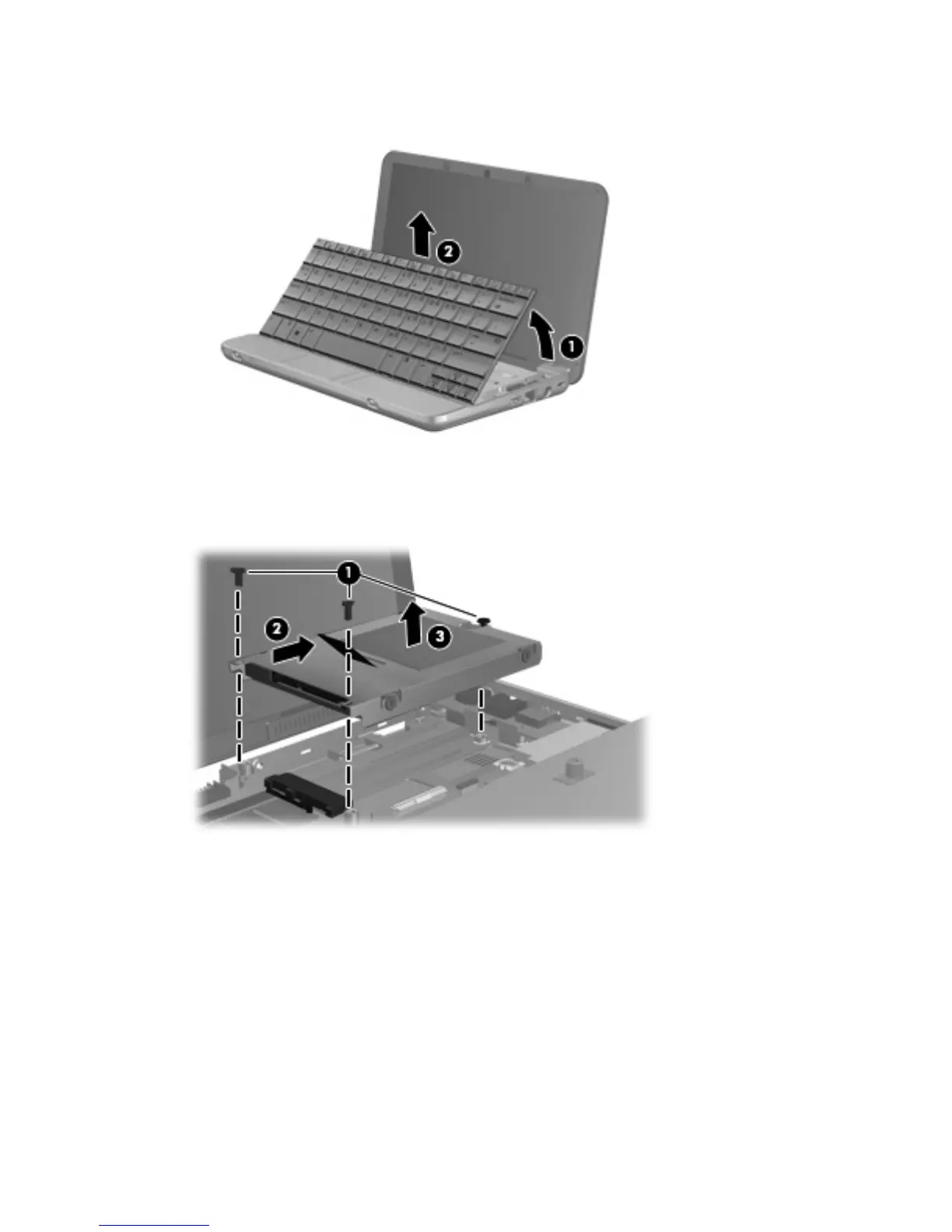

9. Lift the top edge of the keyboard (1) up and remove the keyboard from the computer (2) to expose
the hard drive.
10. Loosen and remove the 3 hard drive screws (1).
11. Pull the hard drive tab (2) to the right to disconnect the hard drive, and then lift the hard drive out
of the hard drive bay (3).
To install a hard drive:
1. Insert the hard drive into the hard drive bay (1).
2. Pull the hard drive tab (2) to the left to connect the hard drive.
88 Chapter 9 Drives
