Hardware options installation 41
6.

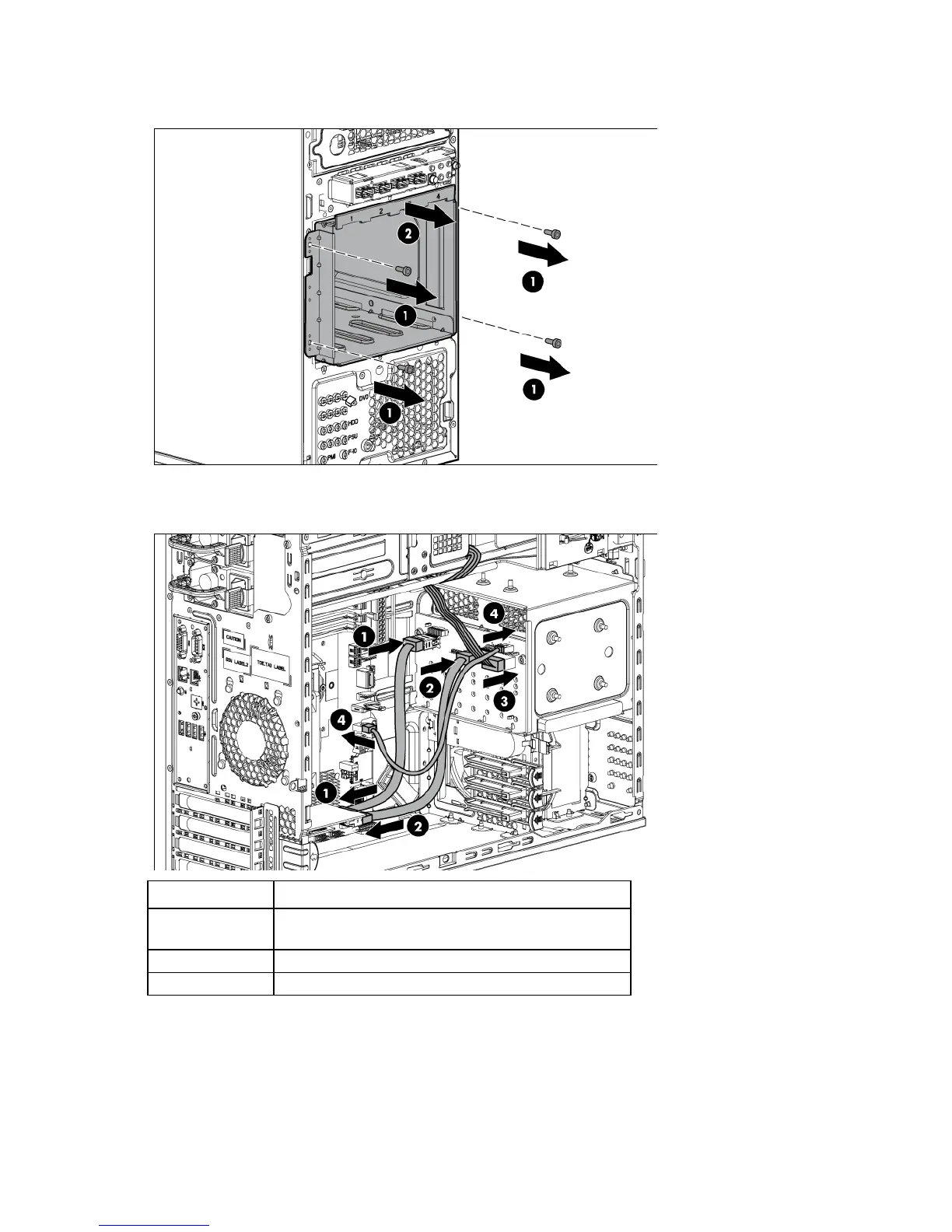

Using a T-15 Torx screwdriver, remove the four screws, and then remove the hard drive cage from the
drive cage bay.
7. Slide the optional drive cage assembly partially into the server chassis.
8. Connect the cabling to the hard drive cage.
Item Description
1 and 2
Connect both mini-SAS cables to the HP Smart Array SAS
RAID Controller card connector
3
Connect the power cable
4
Connect the I
2
C cable
