HP MSR1002-4 Configuration Guide

367
Protocol: pim-dm, UpTime: 00:02:19, Expires: -
The output shows the following information:
•
Routers on the SPT path (Router A and Router D) have the correct (S, G) entries.
•
Router A has the correct (*, G) entry.
IPv6 PIM-SM non-scoped zone configuration example
Network requirements
As shown in Figure 106:
•
OSPFv3 runs on the network.
•
VOD streams are sent to receiver hosts in multicast. The receivers of different subnets form
stub networks, and a minimum of one receiver host exist in each stub network. The entire IPv6
PIM-SM domain contains only one BSR.
•
Host A and Host C are multicast receivers on the stub networks N1 and N2.
•
Specify GigabitEthernet 1/0/3 on Router E as a C-BSR and a C-RP. The C-RP is designated to
IPv6 multicast group range FF0E::101/64. Specify GigabitEthernet 1/0/2 of Router D as the
static RP on all the routers to back up the dynamic RP.
•
MLDv1 runs between Router A and N1, and between Router B, Router C, and N2.

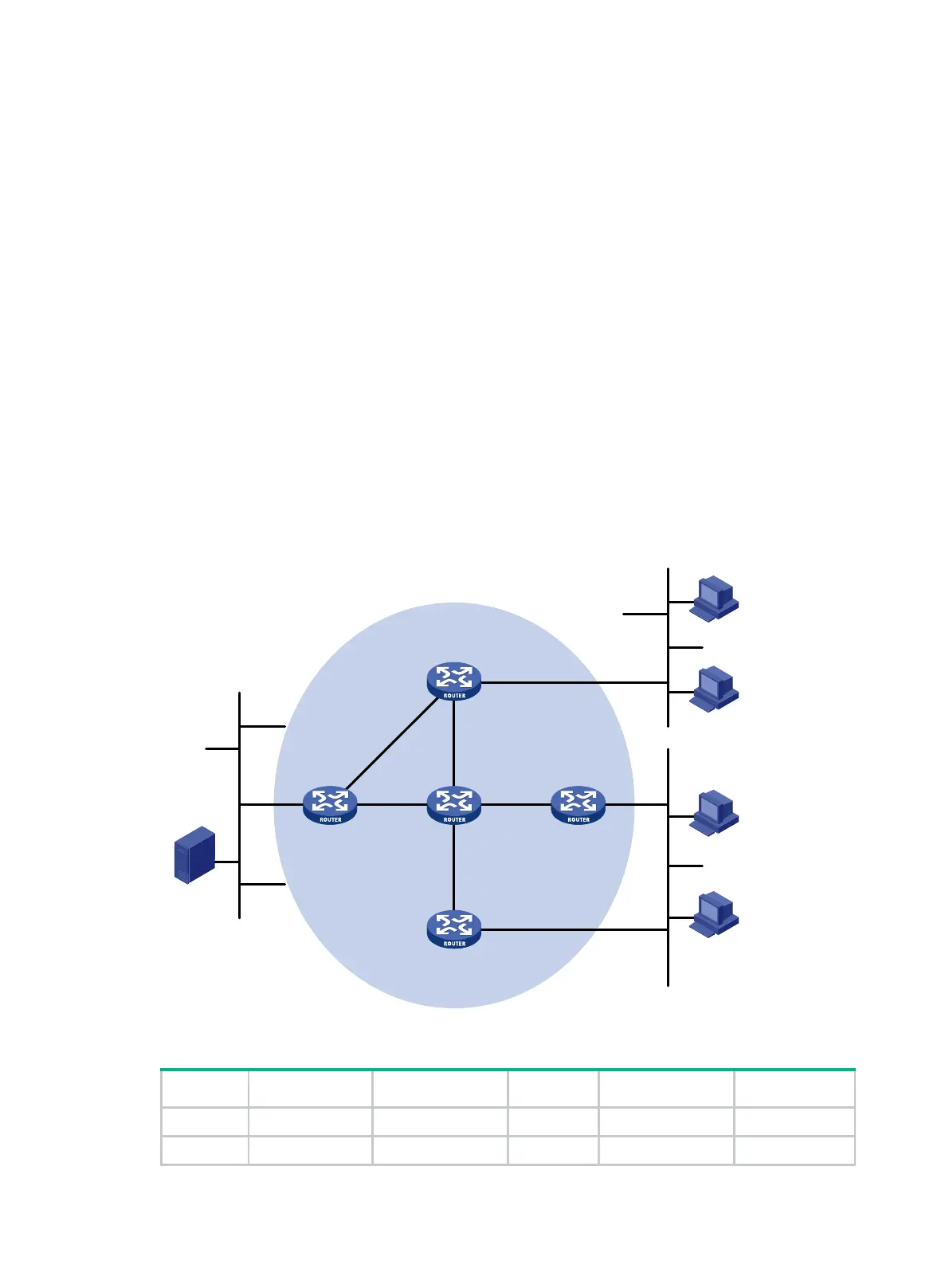

Figure 106 Network diagram
Table 26 Interface and IPv6 address assignment
Device Interface IPv6 address
Device Interface IPv6 address
Router A GE1/0/1 1001::1/64 Router D GE1/0/1 4001::1/64
Router A GE1/0/2 1002::1/64 Router D GE1/0/2 1002::2/64
Ethernet
EthernetEthernet
Source
4001::100/64
Router A
Router B
Router C
Router D
Receiver
Host A
Host B
Host C
Host D
Receiver
N1N2
Router E
GE1/0/1
GE1/0/1
GE1/0/1
GE1/0/1
GE1/0/3
GE1/0/3
GE1/0/2GE1/0/2
GE1/0/2
GE1/0/2
GE1/0/2
GE1/0/1
GE1/0/4
GE1/0/3
IPv6 PIM-SM
