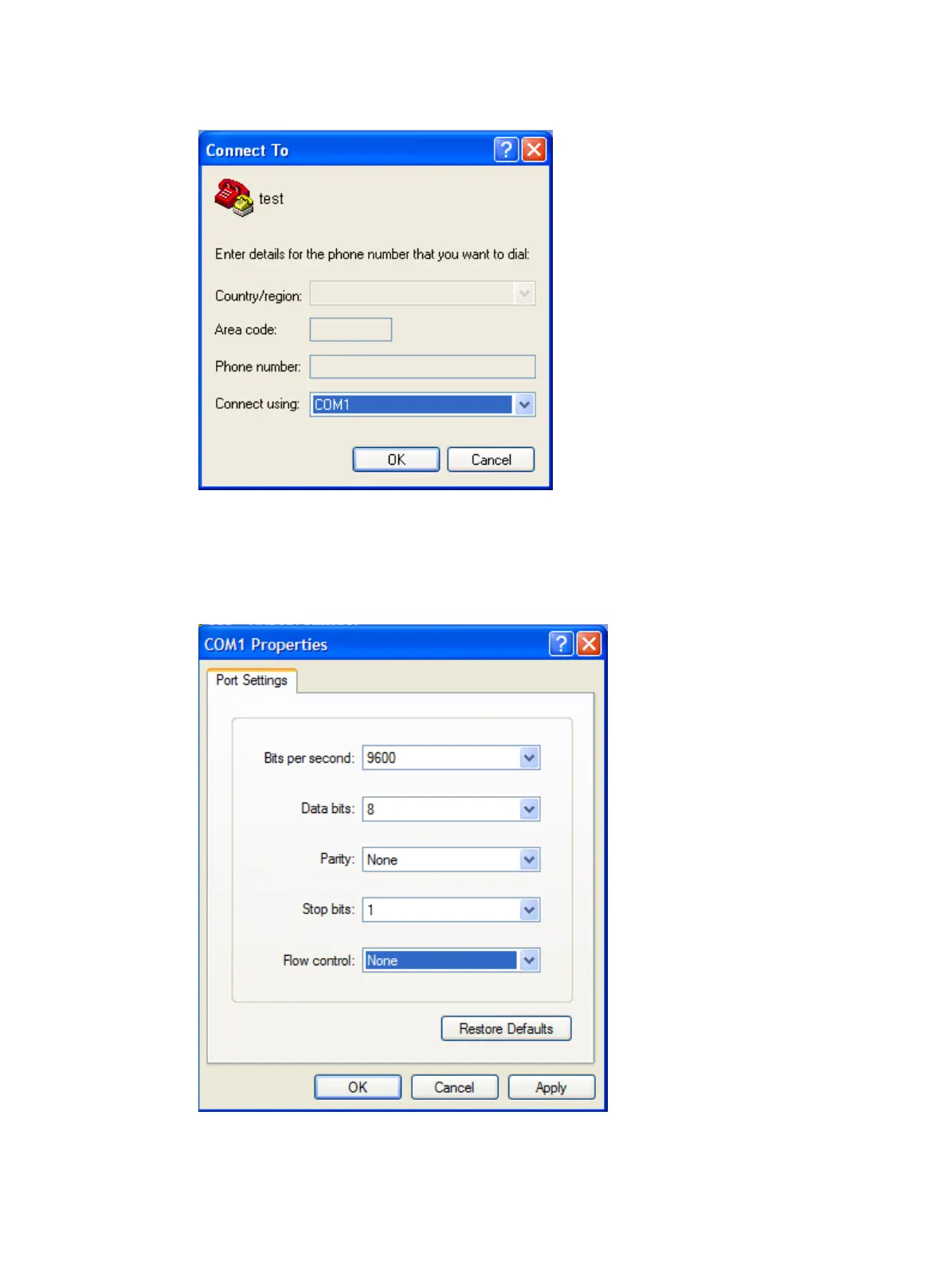

Figure 21
Setting the serial port used by the HyperTerminal connection
3.
Set
Bits per second
to
9600
,
Data bits
to
8
,
Parity
to
None
,
Stop bits
to
1
, and
Flow control
to
None
,
and click
OK
.
4.
To restore the default settings, click
Restore
Defaults
.
Figure 22
Setting the serial port parameters
5.
Select
File
>
Properties
in the HyperTerminal window.
20
23
25
Table of Contents
Installation Guide
1
Table of Contents
3
Preparing for Installation
5
Safety Recommendations
5
Safety Symbols
5
General Safety Recommendations
5
Electricity Safety
5
Examining the Installation Site
6
Temperature and Humidity
6
Cleanliness
6
Cooling System
7
ESD Prevention
7
Emi
8
Lightning Protection
8
Rack-Mounting
8
Installation Accessories
9
Installation Checklist
9
Installing the Router
11
Installation Prerequisites
11
Installation Flowchart
11
Installing the Router
13
Mounting the Router on a Workbench
13
Installing the Router in a Rack
13
Grounding the Router
16
Grounding the Router through the Rack
16
Grounding the Router with a Grounding Strip
18
Grounding the Router with a Grounding Conductor Buried in the Earth Ground
19
Installing an Interface Module
19
Installing a SIC
19
Installing a DSIC
20
Connecting Interface Cables
21
Attaching a USB Device
22
Logging in through the Console Port
22
Connecting a Console Cable
22
Setting Terminal Parameters
23
Connecting an AC Power Cord
26
Verifying the Installation
26
Powering on the Router
26
Verifying before Power-On
26
Powering on the Router
27
Observing Boot Information
27
Examining the Router after Power-On
29
Configuring Basic Settings for the Router
29
Replacement Procedure
30
Replacing a SIC
30
Replacing a DSIC
30
Troubleshooting
32
Power Supply Failure
32
System Configuration Problems
32
No Terminal Display
32
Garbled Terminal Display
33
No Response from the Serial Port
33
Restoring the Factory Settings
33
Scenario 1
33
Scenario 2
33
Scenario 3
33
Reset Button Usage Guidelines
34
Appendix A Chassis Views and Technical Specifications
35
Chassis Views
35
Msr1002-4
35
Msr1003-8
36
Msr1003-8S
36
Technical Specifications
37
Appendix B Leds
38
Panel Leds
38
LED Description
39
Appendix C Slot Arrangement
40
Support and Other Resources
41
Contacting HP
41
Subscription Service
41
Related Information
41
Documents
41
Websites
41
Conventions
42
Index
44
