HP nx6125 - Notebook PC User Manual

Removal and Replacement Procedures
Maintenance and Service Guide 6–43

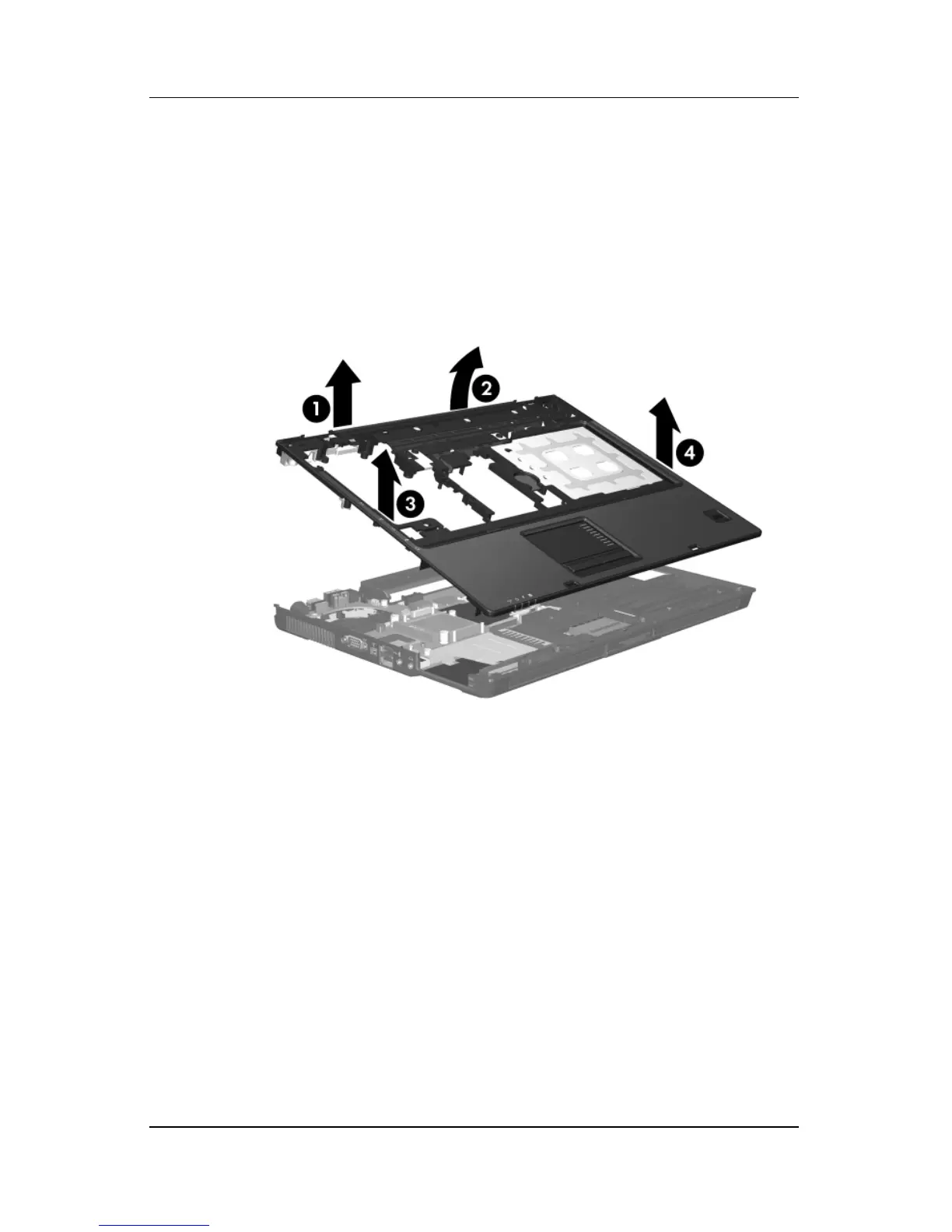

8. Lift up the rear edge of the top cover 1 until it disengages
from the base enclosure.
9. Swing the top cover toward you 2 until the left and right
sides of the top cover disengage from the base enclosure.
10. Lift up on the left 3 and right sides 4 of the top cover until
the top cover disengages from the base enclosure.
Releasing the Top Cover
11. Lift the top cover straight up until the front edge of the top
cover disengages from the base enclosure and remove the
top cover.
Reverse the above procedure to install the top cover.

HP nx6125 - Notebook PC Specifications

General

Graphics	ATI Radeon Xpress 200M
Chipset	ATI Radeon Xpress 200M
Processor	AMD Turion 64 / Mobile AMD Sempron
Display	15.0-inch TFT XGA
RAM	Up to 2 GB DDR SDRAM
Storage	40/60/80/100 GB Hard Disk Drive
Operating System	Microsoft Windows XP Professional
Memory	Up to 2 GB DDR SDRAM
Hard Drive	40/60/80/100 GB
Optical Drive	DVD-ROM, CD-RW/DVD Combo, DVD+/-RW
Wireless	802.11b/g
Battery	6-cell Lithium-Ion battery
Networking	10/100 Ethernet
Ports	3 x USB 2.0, VGA, RJ-11, RJ-45, S-Video
