Removal and Replacement Procedures

Maintenance and Service Guide 6–51

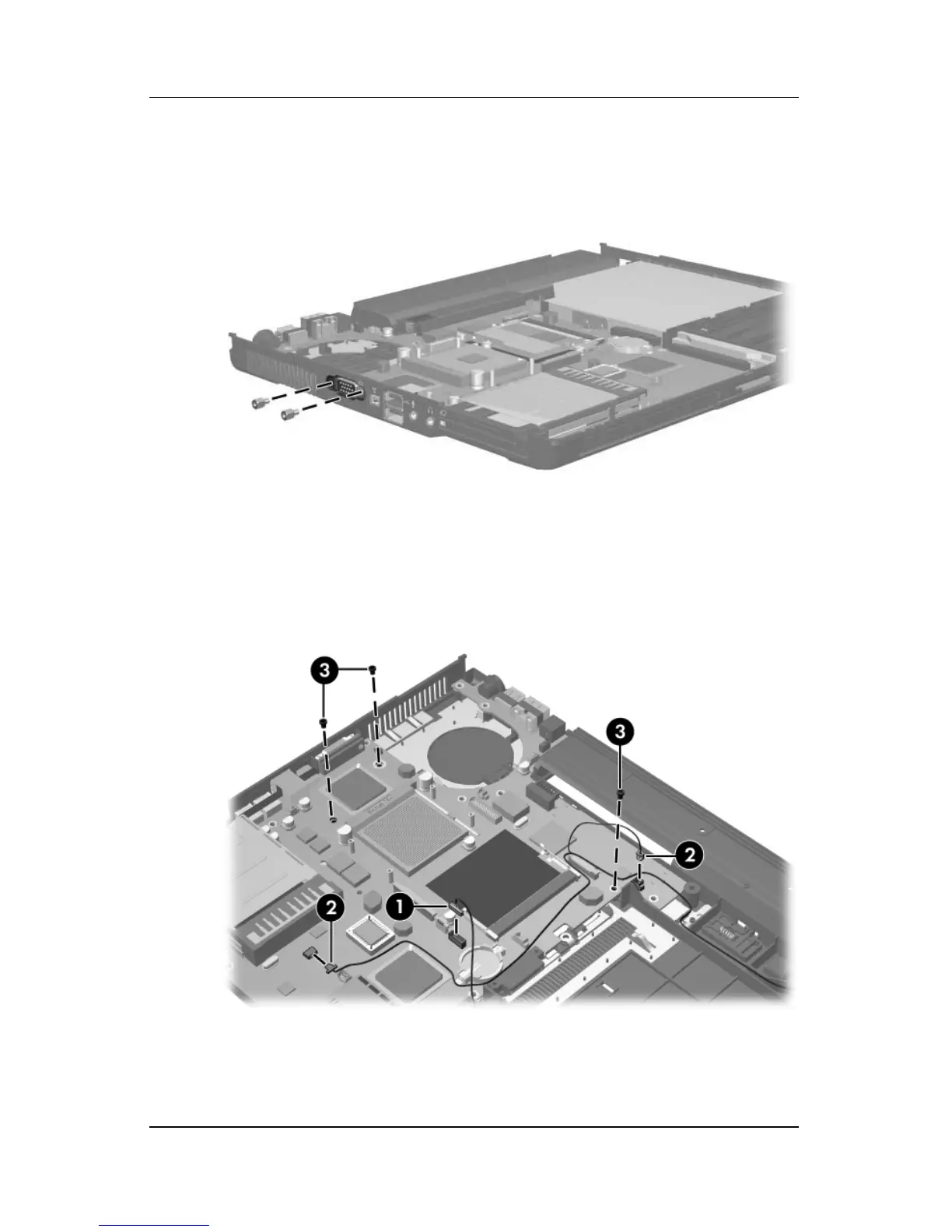

2. Use a 3/16-inch Hex socket wrench to remove the

2 HM3.0×10.0 screw locks on each side of the external

monitor connector.

Removing the System Board Screw Locks

3. Disconnect the Bluetooth cable 1 and RJ-11 connector

module cable 2 from the system board.

4. Remove the 3 Torx T8M2.5×7.0 screws 3 that secure the

system board to the base enclosure.

Removing the System Board Screws and Disconnecting the

System Board Cables
