6–52 Maintenance and Service Guide

Removal and Replacement Procedures

5. Use the optical drive connector 1 to lift the right side of the

system board 2 until the hard drive connector 3 clears the

base enclosure.

6. Slide the system board to the right 4 at an angle and

remove it.

CAUTION: Be careful not to misplace the external monitor connector

bracket

5 when removing the system board. The bracket should be

installed over the external monitor connector between the base

enclosure and the system board, as shown. Failure to install the external

monitor connector bracket can result in damage to the connector and

system board.

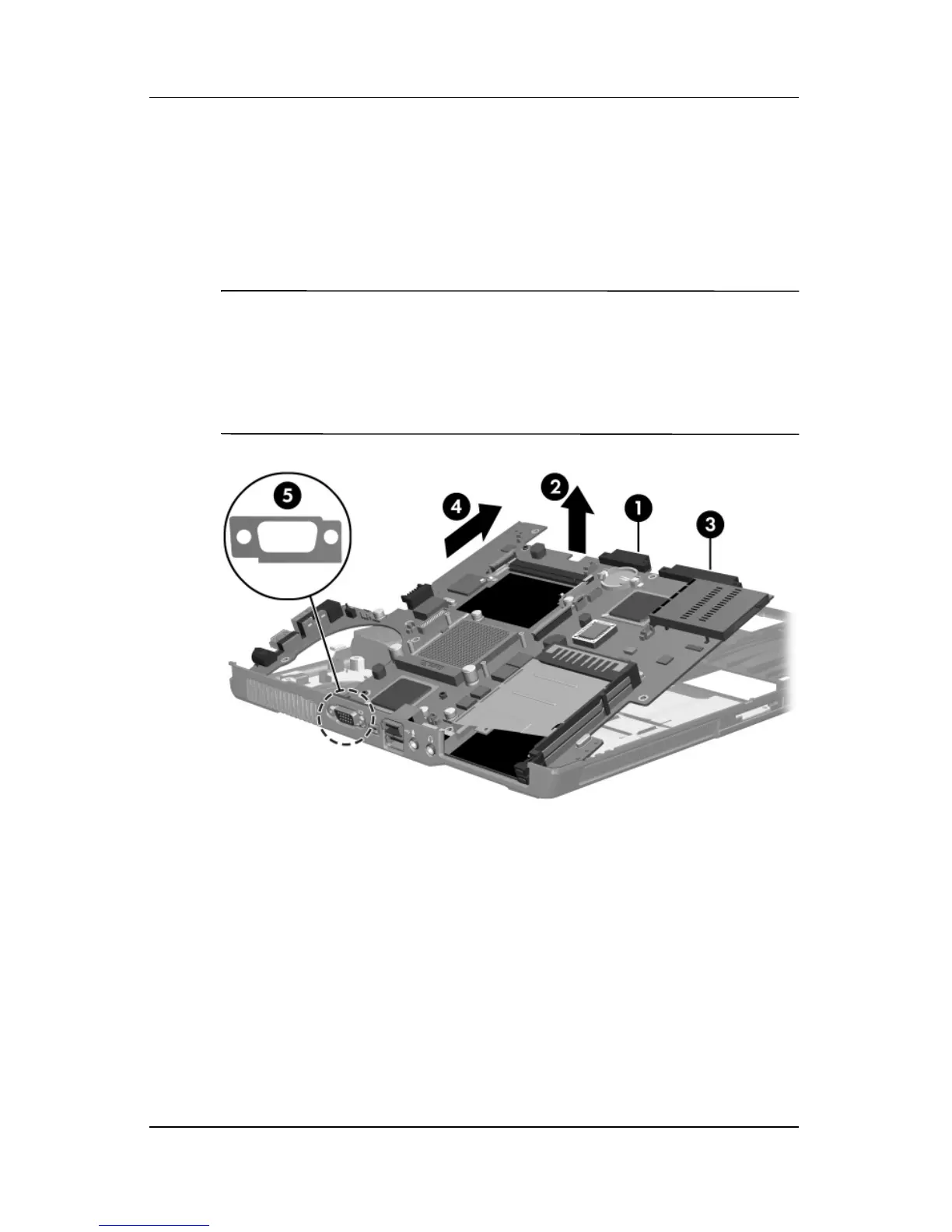

Removing the System Board
