8.
Lift the module to a 45-degree angle, and then remove it from the system board.

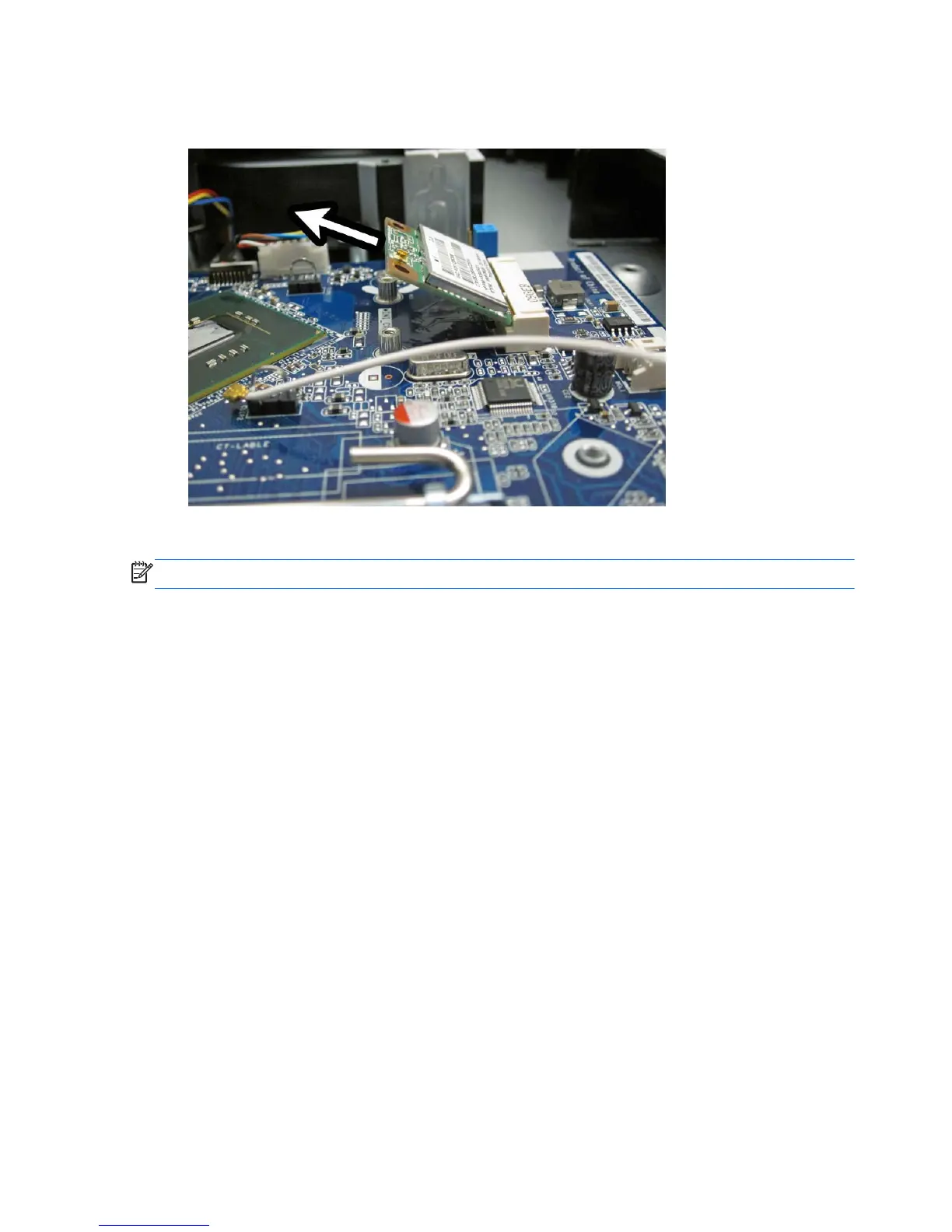

Figure 7-15 Removing the WLAN module
To install the WLAN module, reverse the removal procedures.
NOTE: WLAN modules are designed with a notch to prevent incorrect insertion.
44 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
