9.
Disconnect the speaker cables from the system board connectors. The right speaker cable
connector is black, the left speaker cable connector is white.

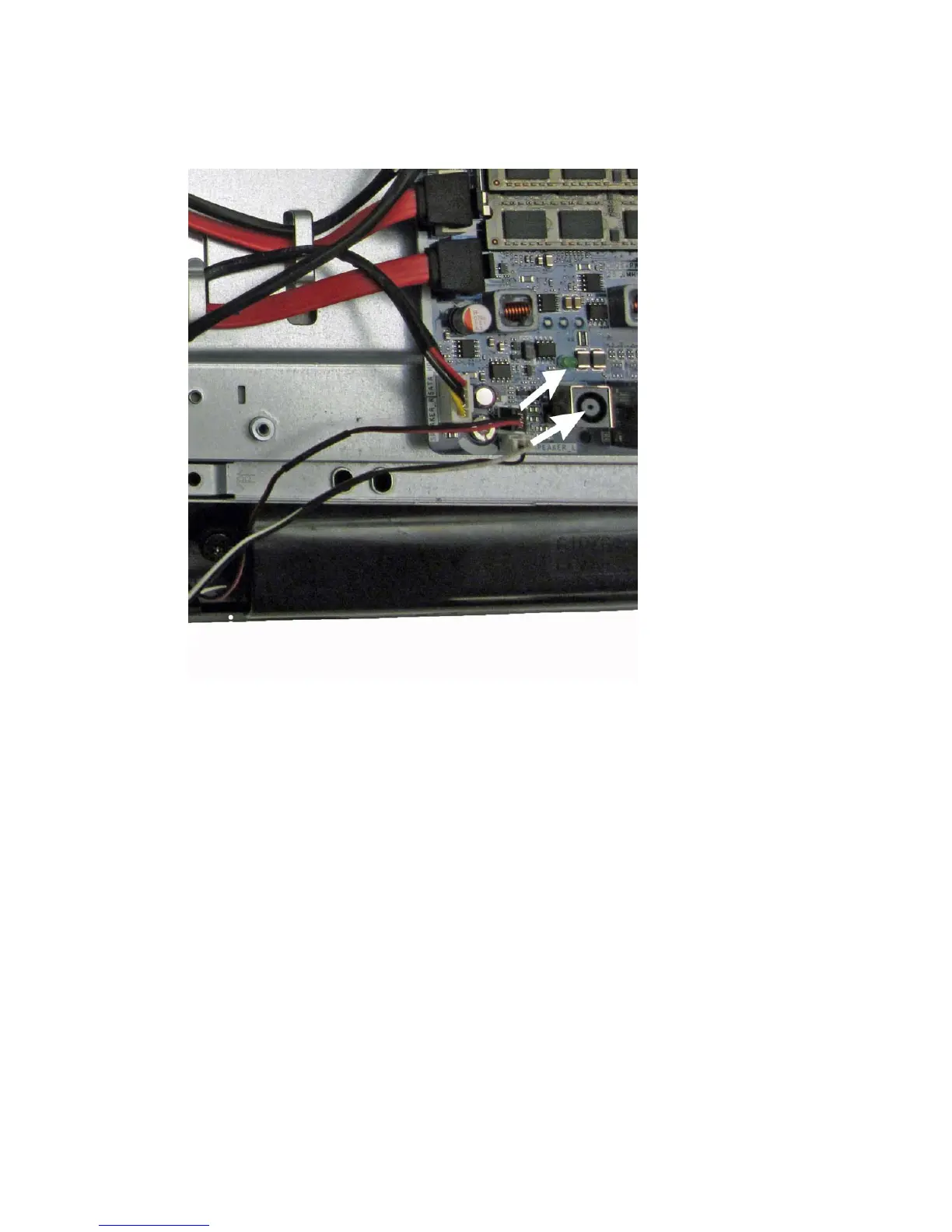

Figure 7-26 Removing the speakers
To install the speakers, reverse the removal procedures.
56 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
